Retractable mass carriage enrober for chocolate coating
Improve production flexibility with a versatile enrober that allows rapid mass changes and precise chocolate distribution, ensuring diverse product coating without downtime.
Enrobes and Coats Chocolate Products

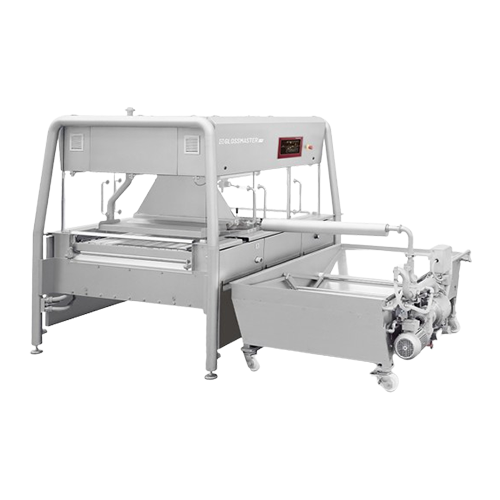

The Glossmaster® CTR from Sollich is an industrial enrober designed for the precise application of chocolate on a wide range of confectionery products. This machine features a fully extendable mass trolley and a double trough design, ensuring that mass changes are swift and efficient. With a working width of 820 to 1300 mm and a length of 2 m, it accommodates large-scale operations, enhancing throughput in continuous, high-speed environments.
The Glossmaster® CTR caters to the food, confectionery, and bakery industries by enabling the production of chocolate-enrobed wafers, protein bars, pralines, and more. Its innovative roller curtain trough and strip coating device enable flexible coating solutions, from full coatings to partial applications. The inclusion of a pneumatic shaking device and a heated, adjustable de-tailer ensures uniform chocolate layering, critical for product consistency.
This enrober is optimized for energy efficiency with separate temperature controls, reducing energy consumption during the enrobing process. Built to be easily integrated into existing lines, it comes equipped with automation options, including PLC control. Maintenance is streamlined with additional mass trolleys and a robust design that facilitates quick cleaning and setup times, enhancing operational uptime and throughput.
Benefits
- Enhances production efficiency with quick mass change capability.
- Ensures consistent product quality through precise chocolate application.
- Increases operational flexibility with a wide range of coating options.
- Optimizes energy usage with independent temperature controls.
- Minimizes setup and maintenance time for improved line uptime.
- Applications
- Wafers,Biscuits,Brittle bars,Decorative chocolate articles,Snacks,Pralines,Fruit bars,Chocolate products,Sandwich products,Cereal bars,Sweets,Candy bars,Ice cream,Protein bars
- End products
- Chocolate-covered brittle bars,Candy coated nuts,Chocolate-coated fruit bars,Chocolate-covered pralines,Chocolate-coated protein bars,Chocolate enrobed biscuits,Chocolate-covered sandwich biscuits,Chocolate enrobed wafers,Ice cream bars with chocolate coating,Chocolate-draped decorative articles,Decorative chocolate pieces,Chocolate-coated cereal bars
- Steps before
- Tempering,Mixing,Bulk Chocolate Preparation
- Steps after
- Sprinkling,Decorating,Product Handling,Storing,Sieving,Cooling,Packing
- Input ingredients
- bulk chocolate,different mass,chocolate under carriage
- Output ingredients
- fully coated products,partial coatings,half-coatings,bottom coatings
- Market info
- Sollich is known for manufacturing engineered-to-order equipment for the confectionery industry, particularly chocolate processing and enrobing machines. They have a strong reputation for innovation, quality, and tailored solutions to meet specific customer requirements.
- Working width
- 820 up to 1300 mm
- Length
- 2.0 m
- Double trough design
- Separate temperature control
- Mass Change
- Fully extendable mass trolley
- Automation
- Pneumatic shaking device
- Heated and adjustable de-tailer device
- Yes
- Strip Coating Device
- For partial coatings
- Roller Curtain Trough
- Optional use
- Hold-down roller
- For uniform "half-coatings"
- Wire belt hold-down device
- For full coatings
- Mass trolley
- Removable with curtain pump and pipe
- Additional mass trolleys
- Available as an option
- Roller bed
- Very thin bottom coatings
- Biscuit turning device
- Used for bottom-coated products
- Mass Change
- Via removable mass trolley
- Automation level
- PLC-controlled
- Changeover time
- Quick mass replacement
- Batch vs. continuous operation
- Batch
- Cleaning method
- Manual
- Pneumatic shaking device
- Integrated
- Hold-down roller
- Adjustable
- Discharge method
- Removal via mass trolley
- Working width
- 820 up to 1300 mm
- Length
- 2.00 m
- Mass trolley extendability
- Fully extendable
- Trough design
- Double trough with separate temperature control
- De-tailer device
- Heated and adjustable
- Mass change option
- Removable mass trolley
- Coating devices
- Strip coating,wire belt hold-down,hold-down roller,roller bed
- Roller curtain trough
- Available as replacement for curtain trough
- Customization option
- Additional mass trolleys
