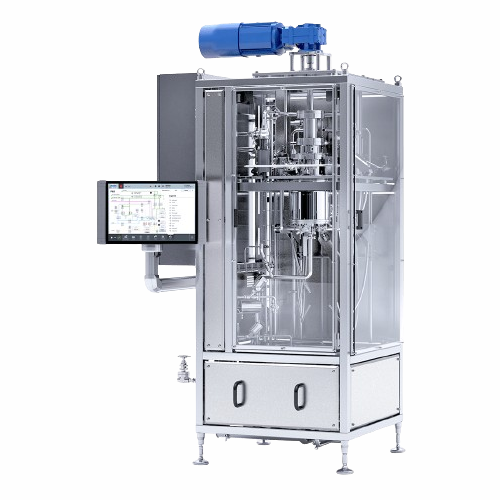

R&d scale steam cooker for small batch processing

Optimize your R&D with a steam cooker that replicates large-scale conditions in small batches, ideal for testing new formulations across diverse food products including cheeses, soups, and plant-based innovations.

Replicates Large-Scale Cooking Conditions in Small Batches

The MicraTherm from the Natec Network is a batch steam cooker designed to replicate the conditions of large-scale RotaTherm® continuous cookers in a compact format for R&D and pilot operations. Its unique feature lies in utilizing Gold Peg direct steam injectors and rotors, offering both high and low shear processing. This makes it invaluable for developing a wide range of products, including processed cheese, plant-based foods, and specialty sauces.

Capable of processing 2-3 kg batches, it allows you to conduct precise pasteurization and ultra-high temperature (UHT) operations. The system is PLC-controlled, featuring a touch screen interface and data trending recorder to ensure seamless integration into existing lab settings. The MicraTherm is engineered for energy efficiency, using a steam management system to create culinary steam while minimizing waste. Made from food-grade materials, it supports cleaning in place (CIP) to improve maintenance and minimize contamination risks.

Whether you are innovating in dairy or exploring vegan alternatives, the MicraTherm provides the flexibility and precision required for product development, backed by options for further customization, including vacuum cooling and indirect heating amenities.

Benefits

  • Enhances precision in product development with batch replication of continuous processing conditions.
  • Increases R&D efficiency with fast setup and easy adjustment via a touch screen interface.
  • Improves energy usage efficiency with a robust steam management system for consistent culinary steam production.
  • Reduces contamination risk with an integrated CIP system for thorough and swift cleaning.
  • Provides flexibility in experimenting with diverse product viscosities and processing parameters.

General


Applications
Meat products,Soups,Sauces,Mozzarella,Pasta filata,Specialty food,Pet food,Fruits,Plant-based,Processed cheese,Cream cheese,Dressings,Vegetables,Vegan,Baby food
End products
Dry pet food kibble,Sliced cheddar cheese,Alfredo sauce,Infant cereal,Nutritional bars,Apple puree,Carrot puree,Plant-based burger patties,Soft cream cheese spread,Tomato bisque soup,Vegan cheese block,Mozzarella pizza topping,Caesar salad dressing,Sausage filling,String cheese
Steps before
Blending,Feeding,Transferring
Steps after
Packing,Cooling,De-aeration
Input ingredients
processed cheese,cream cheese,mozzarella,pasta filata,soups,sauces,dressings,meat products,plant based,vegan,fruits,vegetables,baby food,specialty food,pet food
Output ingredients
pasteurised product,UHT product,2-3 kg batches,culinary steam
Market info
Hochland Natec is known for manufacturing innovative engineered-to-order equipment and solutions for the dairy and food processing industry, specializing in cheese production and processing technologies, with a strong reputation for quality and innovation.

Technical Specifications


Batch size
2-3 kg
Capacity
2-3 litres
Heating temperature
Up to 145°C (293°F)
Control system
Screen / PLC integrated
Cleaning method
Integrated CIP system
Dimensions (LxWxH)
800 x 800 x 2,200 mm
Steam management system
Culinary steam
Motor
Variable speed drive
Direct steam injectors
Two Gold Peg direct steam injectors
Product bowl
Insulated with sample port
Options
Vacuum cooling,de-aeration,indirect heating,boiler
Utilities
Steam,air,water,power required

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
PLC with touch screen
Cleaning method
Integrated CIP system
Heating method
Direct steam injection
Temperature control
Up to 145°C
Operating size
2-3 kg batches

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Viscosity range
Low to high viscosities
Heat sensitivity
Pasteurisation and UHT capable
Batch size
2–3 kg batches

Physical Characteristics


Machine footprint
800 x 800 x 2200 mm
Product Bowl
Insulated with sample port
Discharge Method
Sample port
Control Panel Type
Touch screen with integrated PLC
Batch size
2-3 kg

Custom Options


Control panel type
Touch screen with integrated PLC
Integration possibilities
Trending recorder
Additional functions
Vacuum cooling/de-aeration system,Indirect heating system,Boiler for steam generation
Motor
Motor with variable speed drive
Direct steam injectors
Two Gold Peg direct steam injectors
Rotors
Gold Peg rotors (high,low shear included)
Safety system
Pressure relief,temperature probe,and safety system
