Pv mixing vessels for industrial hire
Optimize your production mix with vessels that ensure precise blending, heating, and emulsifying—perfect for managing complex formulations like silicone sealants and lithium-ion battery components, while accommodating diverse batch operations with ease.

Mixes, Heats, and Emulsifies Diverse Materials

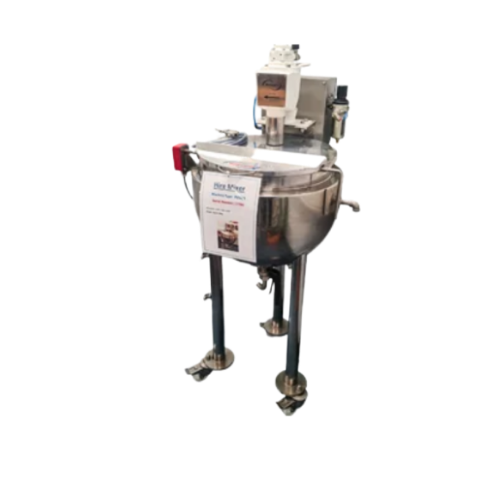

The PV Series from Winkworth Machinery offers engineered-to-order mixing and emulsifying vessels tailored for diverse industrial applications. These vessels uniquely combine stainless steel construction with food-grade design, making them ideal for producing everything from pressure-sensitive adhesives to omega-3 supplements. Equipped with high-shear mixers and steam-jacketed systems, they efficiently process batches to ensure uniform consistency. With working capacities ranging from 50 to 500 liters, the vessels feature variable-speed agitators and integrated scraping mechanisms to optimize product quality. Designed for seamless integration into existing production lines, they include features like hinged lids for easy cleaning and a variety of manual discharge options. Engineered for energy-efficient operation, they offer optional automation capabilities to meet specific production needs.
Benefits
- Enhances product quality with consistent mixing and uniform heat distribution.
- Improves operational efficiency with versatile batch processing capabilities.
- Minimizes cleaning time with easy-access hinged lids and integrated scraping.
- Saves energy through optimized heat transfer and variable-speed agitators.
- Meets stringent hygiene standards with food-grade stainless steel design.
- Applications
- Sealants, Chemicals, Food, Dyes, Biotechnology, Agrichemicals, Batteries, Rubber, Personal care, Ceramics, Inks, Building materials, Metals, Household products, Medical applications, Plastics, Paints, Pharmaceuticals, Beverages, Nutraceuticals, Adhesives
- End products
- Lithium-ion battery cathodes, Blood collection tubes, Recombinant insulin, Antiseptic ointments, Liquid wax polish, Pressure-sensitive adhesive tapes, Ceramic tiles, Energy drinks, Stainless steel fittings, Rubber gaskets, Polyethylene sheets, Chocolate syrup, Omega-3 fish oil supplements, Water-based emulsion paints, Grout mixes, Moisturizing cream, Natural fabric dyes, Silicone sealants, Herbicides, Digital printing inks
- Steps before
- Ingredient Preparation, Material Loading, Weighing, Pre-Mixing
- Steps after
- Packing, Quality Inspection, Storage, Cleaning
- Input ingredients
- adhesives, sealants, cake mix, chewing gum mass, chocolate mixtures, plastisols, ceramic materials, metal powders, wax, lubricants, agrichemicals, animal feeds, tea leaves, coffee grounds, milk, yogurt, cheese curds, granules, herbs, spices, jams, sauces, creams, lotions, nutraceuticals, protein powders
- Output ingredients
- mixed adhesives, sealant compounds, cake batter, confectionary mixtures, chocolate bars, ready to roll icing, ceramic products, metallurgical components, paints, inks, mixed animal feeds, tea beverages, coffee drinks, dairy products, seasoning blends, sauces, baby food, personal care products, medical creams, nutritional supplements, sports nutrition products
- Market info
- Winkworth is known for manufacturing high-quality, engineered-to-order industrial mixing equipment, including mixers and blenders, renowned for their reliability and innovation in the pharmaceutical, food, and chemical industries.
- Capacity
- 50L - 500L
- Dimensions
- 840 (L) x 780 (W) x 1680 (H) mm to 1500 (L) x 1550 (W) x 2300 (H) mm
- Material
- 316 Stainless Steel
- Design
- Food Grade
- Heated Jacket
- Yes
- Agitator Type
- Anchor Stirrer, Angled Anchor, Propeller Agitator
- Speed
- Variable speed 5-38 rpm
- Power
- 0.55kW to 1.5kW
- Discharge Valve
- 2″ to 4″ Butterfly Outlet
- Safety Features
- Hinged Lid and Safety Grid, Safety Interlocked Lid
- Additional Features
- High Shear Mixer, High Speed Emulsifier
- Working Mechanism
- Propeller Agitator / Anchor Stirrer
- Heating
- Steam Jacket / Heated Jacket
- Cleaning Access
- Large Hinged Lid for Cleaning
- Automation Level
- Variable Speed Control
- Batch vs. Continuous Operation
- Batch
- Safety Features
- Safety Interlocked Lid
- Agitation
- High Speed Emulsifier / Angled Anchor Agitator
- Abrasion resistance
- Enhanced by stainless steel construction
- Biological compatibility
- Food grade design
- Cleanability
- Hinged lid for easy access
- Corrosive resistance (e.g. acids)
- 316 Stainless Steel
- Density/particle size
- Suitable for various viscosities and densities
- Food Grade Standards
- Food Grade Design
- 316 Stainless Steel Compliance
- Yes
- Machine footprint
- 840 (L) x 780 (W) x 1680 (H) mm
- Machine footprint
- 1350 (L) x 1300 (W) x 2370 (H) mm
- Machine footprint
- 1500 (L) x 1000 (W) x 1900 (H) mm
- Machine footprint
- 1500 (L) x 1550 (W) x 2300 (H) mm
- Discharge method
- 2″ Manual Butterfly Valve
- Discharge method
- 2″ Butterfly Discharge
- Discharge method
- 3″ Butterfly Outlet
- Discharge method
- 3″ Discharge
- Discharge method
- 3" Butterfly Outlet
- Heated Jacket
- Lagged and Clad
- Agitator type
- Anchor Stirrer with Scraper
- Material
- 316 Stainless Steel
- Speed
- Variable Speed – 5-38rpm
- Safety Features
- Safety Interlocked Lid
