Pump for products with large particulates

When handling products with large particulates, maintaining integrity is paramount. This advanced pump technology ensures gentle processing without damaging delicate particles, making it a vital component for producers aiming to preserve texture and quality in their final products.

Transports Large Particulates with Precision

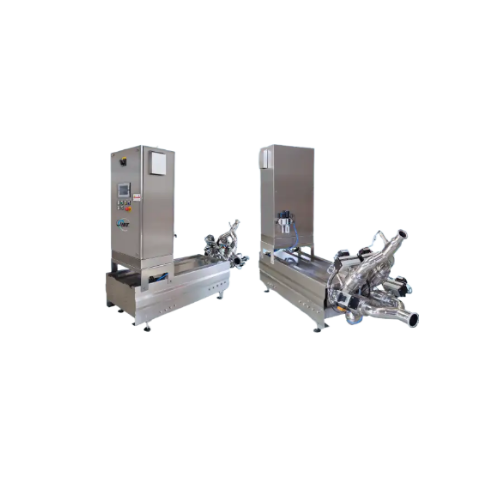

Pumpideal™ from JBT FoodTech is a gentle piston pump designed for seamless integration in food and beverage processing lines. It efficiently transports products with particulates up to 80mm, minimizing damage and ensuring product integrity. With a capacity of 10,000 l/h and operating at 15 bar, it excels in handling items like diced fruit salads, almond milk, and tomato soup. Its independent piston control allows precise adjustment of speed and acceleration, enhancing process control. The system is compliant with the 2006/42/CE machinery directive and features automatic air and gas detection for upstream issue alerts, ensuring smooth operation. Ideal for continuous, high-speed processing, the Pumpideal™ supports energy-efficient operations, with minimal maintenance due to its robust design.

Benefits

  • Minimizes product damage during transport, preserving quality and texture.
  • Enhances operational efficiency with 10,000 l/h throughput and minimal downtime.
  • Ensures smooth operation with independent piston control for precise adjustments.
  • Increases operational reliability with automatic air and gas detection.
  • Complies with European safety regulations, ensuring safe and dependable processing.

General


Applications
Beverages,Soups,Sauces,Ready meals,Oils,Fruits,Nuts,Dressings,Seasonings,Juices
End products
Olive oil,Béchamel sauce,Tomato soup,Garlic seasoning,Orange juice,Almond milk,Diced fruit salads,Chicken curry ready meals,Vinaigrette dressing,Smoothie blends
Steps before
Fresh Cut Processing,Grinding,Mixing,Juicing,Cutting
Steps after
Sterilization,Packaging,Postharvest Processing,Weighing,Bagging
Input ingredients
Large particulates,Big diced product,Products up to 80mm diameter
Output ingredients
Processed fruits,nuts,Processed juices,beverages,Processed oils,soups,sauces,seasonings,dressings,Ready meals
Market info
JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.

Technical Specifications


Particulate Size
up to 80mm (~3.15”)
Throughput
10000 l/h (44 gpm)
Operating Pressure
15 bar (~218 psi)
Product Treatment
Gentle
Piston Control
Independent Control for Position,Speed,Acceleration
Compliance
2006/42/CE Norm and European Regulations
Pressure Pulsation
No Pressure Pulsation on Discharge

Operating Characteristics


Product particle size capacity
Up to 80mm
Maximum throughput
10000 l/h (44 gpm)
Maximum operating pressure
15 bar (218 psi)
No pressure pulsation
Yes
Piston position control
Independent
Automation level
Includes automatic air and gas detection
Gentle product treatment
Yes

Material Compatibility


Large particulate handling
up to 80mm
Corrosive resistance (e.g. acids)
Yes
Density/particle size
Large diced products

Physical Characteristics


Pump Diameter Capacity
up to 80mm
Maximum Throughput
10000 l/h (44 gpm)
Operating Pressure
15 bar (218 psi)
Design Standards
2006/42/CE norm
Structural Design Compliance
European regulations and laws
Discharge Method
No pressure pulsation

Custom Options


Control panel type
PLC/SCADA
Integration possibilities
Automated line integration
Control system
Independent piston control
