Production system for molecular diagnostics

Eliminate bottlenecks in molecular diagnostics production with a versatile system capable of handling powders, liquids, and lyophilized ingredients at high speeds, ensuring precise component integration and exceptional hygiene standards for complex in-vitro and point-of-care solutions.

Processes and Assembles Molecular Diagnostic Products

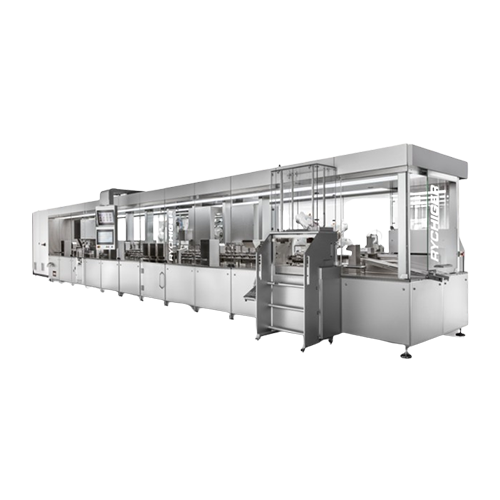

The MC 1400 from Rychiger is engineered to meet the demanding needs of pharmaceutical manufacturers and molecular diagnostics producers. This modular machine excels in handling complex operations such as filling, punching, sealing, and component assembly, utilizing an advanced asynchronous transport system that ensures high throughput of up to 100 units per minute. It is ideal for producing precise molecular diagnostic products, including DNA testing kits and rapid COVID-19 test kits.

The MC 1400 integrates smoothly into your production line with its comprehensive processing capabilities, from liquid and powder filling to the assembly of intricate point-of-care devices. Its DNA-safe design ensures complete removal of any contaminating DNA, maintaining the integrity of sensitive pharmaceuticals and diagnostics.

Equipped with state-of-the-art technology, each processing station operates independently, eliminating bottlenecks and ensuring efficiency. The machine adheres to stringent regulatory standards, featuring a completely segregated drive compartment and easy-clean surfaces for optimal hygiene. Optional laminar flow systems provide particle-free process air, essential for high-precision diagnostic production.

Rychiger offers tailored solutions to match your unique production needs, with support for custom process integration and continuous operation to boost your production’s flexibility and efficiency.

Benefits

  • Increases production efficiency by handling up to 100 units per minute with asynchronous transport.
  • Enhances product integrity with DNA-safe design, ensuring contamination-free diagnostic products.
  • Offers customizable integration, allowing adaptation to specific production requirements for diverse end-products.
  • Streamlines operations with modular design, supporting continuous and high-speed production.
  • Ensures compliance with stringent industry regulations through hygienic design and optional laminar flow systems.

General


Applications
Point of care devices,Supplements,Multi-beverages,Snacks,Pet food,Molecular diagnostics,Home supplies,Confectionary,Coffee,Cosmetics,Janitorial supplies,In-vitro diagnostics,Baby food,Tea,Dairy products,Pharmaceuticals
End products
Dna testing kits,Anti-aging serums,Infant formula,Insulin auto-injectors,Pcr test reagents,Covid-19 rapid test kits,Espresso pods,Air freshener cartridges,Disinfectant wipes,Chocolate bars,Green tea sachets,Pet kibble,Iced coffee brews,Yogurt containers,Vitamin capsules,Protein bars
Steps before
Purification,Drying,Ingredient preparation
Steps after
Sterilization,Packing,Quality assurance
Input ingredients
powders,liquids,lyophilized ingredients,large solids
Output ingredients
complex IVD products,POC products,filled containers
Market info
Rychiger is known for engineering high-precision filling and sealing machines for the food and medical industries, offering customized, innovative automation solutions, with a strong reputation for reliability and exceptional engineering expertise in the packaging sector.

Technical Specifications


Speed
20 cycles/min
Output Rate
100 containers/min
Number of Lanes
5 lanes
Output per Hour
6,000 containers/h
Size (LxWxH)
14 x 2.7 x 2.4 m
Weight
1,000 kg per module
Connected Load
3 x 400 V + Pe / 50 Hz
Rated Power
40 kW
Compressed Air Requirement
≥ 5 bar,30 l/min
Automation
Asynchronous transport system
DNA-cleanability
Yes
Hygiene Design
Wipe-cleanable surfaces
Optional Features
Laminar flow for particle-free air

Operating Characteristics


Working Mechanism
Asynchronous transport system
Component Assembly
Suitable for IVD and POC devices
Process Integration
Filling,Punching,Sealing
DNA-cleanability
Yes
Automation Level
High
Hygiene Standards
Wipe-clean surfaces
Modular Design
Flexible process integration
Output Rate
100 units/min
Cleaning Method
Manual / Optional laminar flow for particle-free air

Material Compatibility


Cleanability
Wipe-cleanable surfaces
Density/particle size
Suitable for powders,liquids,lyophilized ingredients

Product type Characteristics


Container type
PET / Glass / Custom

Physical Characteristics


Machine footprint
14 x 2.7 x 2.4 m
Weight
1'000 kg per module
Container capacity
100 containers/min
Number of lanes
5 lanes
Asynchronous transport system
Independent carriers

Custom Options


Control panel type
Touchscreen / HMI
Modular design
Yes
Integration possibilities
Custom processes available
Asynchronous transport system
Independent magnetic carriers
Customization for IVD and POC devices
Yes
