Powder/liquid mixing system for homogeneous dispersions
Struggling to integrate challenging powders into liquid formulations? This system ensures rapid, agglomerate-free blending, streamlining your production process to handle viscosities from thin liquids to thick gels efficiently.
Rapidly Disperses and Homogenizes Powders and Liquids

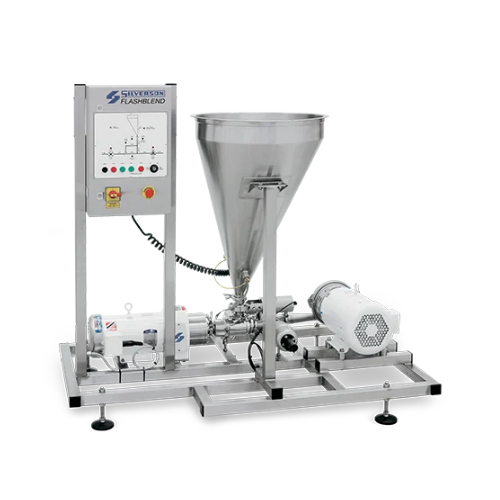

The Flashblend Powder/Liquid Mixing System from Silverson Machines revolutionizes the integration of powders and liquids with its high shear, rapid dispersion capabilities. Designed for continuity and versatility, this system excels in applications ranging from pharmaceuticals to food processing, cosmetics, and industrial chemicals. With throughput rates reaching up to 30,000 lbs/hour, it efficiently processes products such as oral suspensions, protein shakes, and heavy-duty detergents.
Utilizing a venturi chamber and In-Line mixer, the Flashblend creates a vacuum to draw powders directly into the liquid stream, ensuring a consistent, agglomerate-free mix. This equipment supports continuous and semi-continuous operations, minimizing production halts with its clean-in-place (CIP) system, optional sterilize-in-place (SIP), and customizable configurations like conveyor or dust extraction integration.
Constructed with 316 stainless steel for durability and chemical resistance, the system is equipped with TEFC and washdown duty motors, offering optional stainless steel motors for enhanced cleanliness. Tri-clamp fittings and an integral stainless steel control panel facilitate seamless operation and integration into existing setups. Ideal for diverse sectors, from dairy to biopharmaceuticals, the Flashblend ensures efficiency, reliability, and adaptability in demanding production environments.
Benefits
- Maximizes throughput with up to 30,000 lbs/hour powder incorporation.
- Ensures consistent product quality with agglomerate-free dispersion.
- Reduces labor and cleaning downtime with its clean-in-place (CIP) system.
- Enhances production flexibility through continuous and semi-continuous operation modes.
- Supports a wide range of viscosities, improving process adaptability.
- Applications
- Polymers,Paints and coatings,Animal feed,Personal care products,Nutraceuticals,Cosmetics,Food processing,Biopharmaceuticals,Adhesives,Lubricants,Industrial chemicals,Chemical production,Dairy products,Beverage industry,Pharmaceuticals
- End products
- Pvc pastes,Epoxy adhesives,Face creams,Polyurethane coatings,Protein shakes,Livestock feed supplements,Yogurt blends,Vaccine diluents,Shampoo formulations,Synthetic motor oils,Oral suspensions,Heavy-duty detergents,Fruit juices,Water-based paints,Dietary supplements
- Steps before
- Grinding,Emulsification,Ingredient Weighing,Pre-mixing
- Steps after
- Quality Control,Sterilization,Packaging,Cooling
- Input ingredients
- process liquid,powders,problematic gums,thickeners,viscous liquids,liquid additives
- Output ingredients
- agglomerate-free products,homogeneous dispersion
- Market info
- Silverson is renowned for manufacturing high-quality industrial mixers, specializing in high-shear mixers for industries such as food, pharmaceuticals, and cosmetics, offering customized solutions and exceptional engineering expertise.
- Powder incorporation rate
- up to 30,000 lbs/hr
- Powder absorption rate
- up to 500 lbs/min
- Viscosity range
- low to highly viscous gels
- Pumping action
- vacuum in venturi chamber
- Cleaning method
- CIP / SIP optional
- Material of construction
- 316 stainless steel
- Motor type
- TEFC and washdown duty
- Connections
- Tri-clamp fittings
- Sealing
- Single mechanical shaft seals,double optional
- Total power HP
- varies by model
- Standard hopper volume
- varies by model (e.g.,3.5 cu ft)
- Automation level
- Semi-automatic
- Batch vs. continuous operation
- Continuous / Semi-continuous
- Clean-in-Place (CIP)
- CIP compatible
- Mixing speed
- High Velocity
- Powder incorporation rate
- Up to 30,000 lbs/hr
- Aeration control
- Minimizes aeration
- Dispersing capacity
- Agglomerate-free
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Agglomeration risk
- High during powder incorporation
- Viscosity Range
- Low to high viscosity products
- Foaming tendency
- Minimized by design
- Powder type
- Thickeners,gums,problematic powders
- Powder incorporation rate
- Up to 30,000 lbs/hr
- Heat sensitivity
- Handled during CIP/SIP
- Hygiene level
- High,with clean-in-place capabilities
- FDA Materials
- Yes
- Machine footprint
- Semi-automatic system,compact size
- Material of construction
- 316 stainless steel
- Discharge method
- Venturi chamber with rotor/stator assembly
- Feed method
- Hopper with powder feed valve
- Capacity
- Powder incorporation rates up to 30,000 lbs/hr
- Control panel type
- Integral stainless steel control panel
- Control panel type
- Integral stainless steel control panel
- Powder feed system
- Hopper or flexible hose
- Customization for sanitation
- Ultra-sanitary models for aseptic processing
- Advanced features integration
- Conveyors,bulk containers,dust extraction units
- Cleaning mode
- Clean-in-place (CIP) and optional sterilize-in-place (SIP)
