Planetary ball mill for high throughput grinding
For precise material engineering, achieve efficient size reduction, homogenization, and nano-scale grinding with our advanced planetary ball mill, perfect for reducing high-density materials in research and development.
Grinds, Mixes, and Homogenizes Various Materials

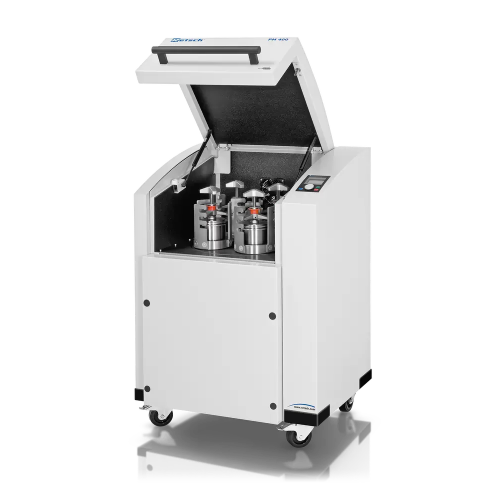

The Planetary Ball Mill PM 400 from Retsch is a robust solution for precision grinding and mixing of small to large sample volumes. This floor model accommodates up to 8 samples simultaneously, ideal for research and development in industries such as materials science and pharmaceuticals. Its high-speed centrifugal mechanism efficiently reduces particles to achieve nanometer-scale fineness, crucial for applications like mechanical alloying and mechanosynthesis.
Equipped with four grinding stations, the PM 400 allows for batch-wise processing with digital controls that ensure reproducibility and safety. The integration of GrindControl offers precise temperature and pressure measurement within the jar, adapting to specific material requirements. Its adjustable speed ranges from 30 to 400 rpm, facilitating optimal particle size reduction while minimizing energy consumption.
Constructed with durability in mind, the mill comes with multiple material options for grinding tools, including stainless steel and tungsten carbide, suited for demanding environments. The Safety Slider feature prevents operation unless jars are securely clamped, ensuring both safety and ease of use. Maintenance is streamlined with easily interchangeable grinding jars and CIP compatibility, enhancing operational efficiency.
Benefits
- Enhances research capabilities with precision particle size reduction down to the nanometer scale.
- Increases sample processing efficiency, handling up to 8 samples simultaneously.
- Reduces process variability with programmable settings and real-time monitoring.
- Ensures operational safety through secure jar clamping and imbalance detection.
- Minimizes maintenance efforts with easy jar exchange and cleaning.
- Applications
- Waste samples,Sewage sludge,Minerals,Pigments,Seeds,Catalysts,Semi-precious stones,Slag,Polymers,Coke,Soils,Glass,Coal,Kaolin,Hydroxyapatite,Clay minerals,Ceramics,Limestone,Paints and lacquers,Bentonite,Electronic scrap,Wood,Fibres,Charcoal,Ores,Cellulose,Iron ore,Quartz,Gypsum,Alloys,Metal oxides,Concrete
- End products
- Coke breeze,Fiber-reinforced composites,Polyethylene plastic,Drilling muds,Paper,Drywall,Bone graft materials,Refined ores,Automotive paints,Metal oxide semiconductors,Plant seed coatings,Ceramic tiles,Steel production,Portland cement,Safety glass,Composted sewage sludge for fertilizer,Gemstone jewelry,Mineral concentrates,Precast concrete slabs,Precious metal recovery from e-waste,Superalloys,Activated carbon filters,Recycled wood fiberboard,Automotive catalytic converters,Natural quartz countertops,Sanitary ware,Soil amendment products,Artist pigments,Porcelain,Cement additives
- Steps before
- Sample preparation,Drying,Crushing,Sieving
- Steps after
- Fineness analysis,Sample collection,Storage,Quality control
- Input ingredients
- alloys,bentonite,bones,carbon fibres,catalysts,cellulose,cement clinker,ceramics,charcoal,chemical products,clay minerals,coal,coke,compost,concrete,electronic scrap,fibres,glass,gypsum,hair,hydroxyapatite,iron ore,kaolin,limestone,metal oxides,minerals,ores,paints and lacquers,paper,pigments,plant materials,polymers,quartz,seeds,semi-precious stones,sewage sludge,slag,soils,tissue,tobacco,waste samples,wood
- Output ingredients
- pulverized materials,homogenized mixtures,nano-sized particles,colloidal suspensions
- Market info
- RETSCH is known for its high-quality laboratory equipment for sample preparation and particle size analysis, including mills, crushers, and sieve shakers, praised for their precision, durability, and reliability in research and industrial applications.
- Speed
- 30 - 400 rpm
- Capacity
- 4 x 220 ml,8 x 20 ml
- Feed size
- Up to 10 mm
- Final fineness
- < 1 µm,for colloidal grinding < 0.1 µm
- Sun wheel speed
- 30 - 400 min-1
- No. of grinding stations
- 4 / 2
- Speed ratio
- 1
- Material of grinding tools
- Hardened steel,stainless steel,tungsten carbide,agate,sintered aluminum oxide,zirconium oxide
- Grinding jar sizes
- 12 ml / 25 ml / 50 ml / 80 ml / 125 ml / 250 ml / 500 ml
- Drive power
- 1.5 kW
- Power consumption
- ~ 2100 W (VA)
- Protection code
- IP 30
- Net weight
- ~ 290 kg
- Dimensions (W x H x D)
- 836 x 1220 (1900) x 780 mm
- Batch size
- max. 4 x 220 ml,max. 8 x 20ml with stacked grinding jars
- Interval operation
- Yes,with direction reversal
- Drive
- 3-phase asynchronous motor with frequency converter
- Effective sun wheel diameter
- 300 mm
- Batch vs. continuous operation
- Batch
- Automation level
- Digital,with programmable SOPs
- Cleaning method
- Manual
- Control panel type
- Display with ergonomic 1-button operation
- Coolant integration
- N/A
- Energy efficiency
- Variable speed operation with programmable settings
- Temperature control
- GrindControl system
- Imbalance sensor
- Innovative counterweight and imbalance sensor for unsupervised operation
- SOP storage
- 10 SOPs can be stored
- Automatic ventilation
- Automatic grinding chamber ventilation
- Abrasion resistance
- Suitable for hard,brittle materials
- Biological compatibility
- 0
- Cleanability
- Easy to clean
- Corrosive resistance (e.g. acids)
- Compatible with diverse materials like alloys,ceramics
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Standards
- CE
- Machine footprint
- 836 x 1220 (1900) x 780 mm
- Number of grinding stations
- 4 / 2
- Grinding jar sizes
- 12 ml / 25 ml / 50 ml / 80 ml / 125 ml / 250 ml / 500 ml
- Stackable grinding jars
- 12 ml / 25 ml / 50 ml / 80 ml
- Sun wheel speed
- 30 - 400 min-1
- Effective sun wheel diameter
- 300 mm
- Protective jacket materials
- Stainless steel,aluminum oxide,zirconium oxide,tungsten carbide
- Control panel type
- Ergonomic 1-button operation
- Jar material options
- 5 different materials for contamination-free grinding
- Grinding jar volume
- 12 ml to 500 ml
- Grinding jar filling level
- 60% ideal filling for wet grinding
- Storage options
- Power failure backup for processing time
