Pilot system for high-viscosity product processing

Efficiently handle high-viscosity or large particle products with this advanced thermal processing system, ideal for maintaining product integrity in complex heat treatment applications.

Processes High-Viscosity Products and Large Particles

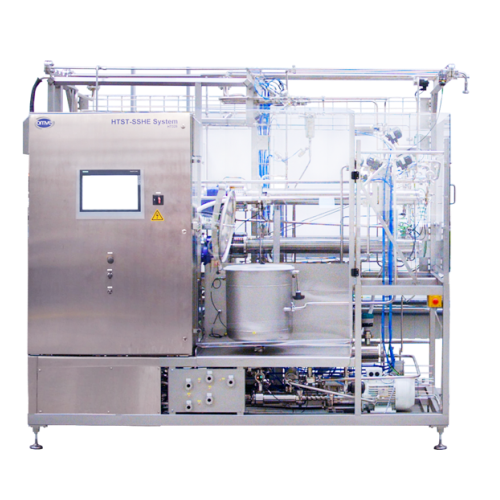

The HT326 UHT/HTST Pilot from OMVE is engineered to meet the demands of processing high-viscosity products and fruit particles up to 7mm in size. Equipped with scraped surface heat exchangers (SSHE) and low shear pumps, it ensures gentle handling and precise heat treatment, ideal for applications in dairy, plant-based products, soups, sauces, and beverages. It processes up to 500L/h, integrating seamlessly into your production line with automated PLC control and both CIP and SIP capabilities, minimizing contamination risks and downtime. This versatile system supports a range of processes, including homogenizing, deaeration, sterilization, and pasteurization. Its construction in robust materials guarantees compatibility and compliance with food and beverage industry standards, providing reliable performance for R&D and pilot plant operations.

Benefits

  • Enhances product quality by maintaining integrity of large fruit particles up to 7mm.
  • Increases process efficiency with automated heat treatment and seamless integration.
  • Minimizes contamination with integrated CIP and SIP systems.
  • Reduces production variability for consistent product output.
  • Supports versatile applications across various food and beverage segments.

General


Applications
Soups,Sauces,Alcoholic drinks,Nutraceuticals,Fats,Still drinks,Oils,Plant-based,Carbonated drinks,Ice creams,Dairy
End products
Sparkling water,Craft beer,Olive oil,Tomato soup,Flavored yogurt,Barbecue sauce,Protein shakes,Almond milk,Coconut oil,Sorbet,Fruit juice
Steps before
Batch cooking,Blending and Mixing,Homogenizing,Fermenting
Steps after
Packaging,Sterilization
Input ingredients
high-viscosity products,fruit particles up to 7mm,fibers up to 25mm
Output ingredients
processed high-viscosity products,processed fruit particles,processed fibers
Market info
OMVE is known for manufacturing pilot and small-scale processing equipment for the food and beverage industry, specializing in pasteurization, carbonation, fermentation, and homogenization systems, with a strong reputation for innovation and quality in engineered-to-order solutions.

Technical Specifications


Pump Type
Low shear
Inlet/Outlet Size
Large
Particle Size Capability
Up to 7mm
Fiber size capability
Up to 25mm
Viscosity Handling
Up to 10,000 cps
Automation Level
Fully automated
Flow Rate
Up to 500 L/h
Compatibility
Combine with HT220/HT320 systems
Cleaning Method
Integrated CIP and SIP

Operating Characteristics


Automation level
Fully automated
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
Integrated CIP and SIP facility
Pump operation
Low shear pump

Material Compatibility


Cleanability
Integrated CIP and SIP facility
Density/particle size
Fibers up to 25mm,particles up to 7mm

Product type Characteristics


Particle size
Up to 7mm for fruit pieces

Physical Characteristics


Inlet/Outlet size
Large
Scraped surface heat exchanger
Yes
Particle processing capability
Up to 7mm
Viscosity processing capability
Up to 10,000 cps
Pump type
Low shear
Fully automated system
Yes

Custom Options


Control panel type
Fully automated
Integration Possibilities
Compatible with HT220 or HT320 systems
Pump type
Low shear pump
Heat exchanger type
Scraped Surface Heat Exchangers (SSHE)
Inlet/Outlet Size
Large inlet and outlet
