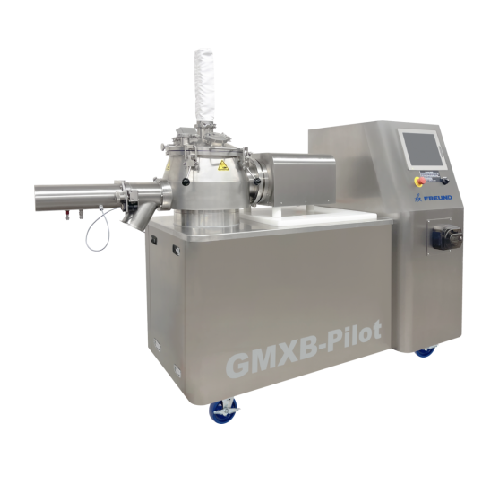

Pilot High shear granulator for wet granulation

Achieve consistent particle sizing and superior homogeneity in your powder formulations with this versatile system, perfect for optimizing your pilot-scale wet granulation and mixing processes.

Granulates and Mixes Powder into Dense Granules

The GMXB-Pilot GRANUMEIST® from Freund is a high shear wet granulation mixer designed for precise and efficient processing in the pharmaceutical, nutraceutical, and fine chemical industries. This equipment stands out due to its bottom-drive design, which facilitates easy cleaning, faster processing times, and enhanced safety. Featuring interchangeable bowls (10L, 25L, 65L) and user-defined mixer and chopper blade speeds, it supports both aqueous and solvent processes. Its integrated peristaltic pump and optional vacuum drying make it suitable for flexible batch operations. Containment is enhanced with the optional Smart-Safe™ system, while a color touchscreen offers validatable and automated process control, aligning with 21 CFR Part 11 compliance. Engineered for scalability and equipped with proportional mixer blade tip speeds, the GMXB-Pilot accommodates diverse granulation needs, from granulated vitamins to fine chemical powders. Additionally, its quick changeover design and options for jacketed and vacuum drying bowls streamline maintenance and operational efficiency.

Benefits

  • Increases operational efficiency with quick changeover design and no tools required.
  • Enhances product quality through precise control of mixing and granulation processes.
  • Reduces maintenance time and effort with easy-to-clean bottom-drive system.
  • Offers scalability across production scales with interchangeable bowl sizes and adjusted mixer speeds.
  • Ensures regulatory compliance with validatable process control supporting 21 CFR Part 11 requirements.

General


Applications
Vitamins,Supplements,Fine chemicals,Nutraceuticals,Coating materials,Pharmaceutical powders,Pharmaceuticals
End products
Fine chemical granules,Protein powders,Coated nutraceuticals,Tablets,Granulated vitamins,Herbal supplements,Powdered dietary supplements,Coated particle drugs,Effervescent tablets,Capsules
Steps before
Purification,Drying,Emulsification,Grinding
Steps after
Vacuum Drying,Tablet Coating,Packing,Coating,Tablet Pressing
Input ingredients
powders,wet granulation ingredients,aqueous solutions,solvent mixtures
Output ingredients
medium to high density granules
Market info
Freund is known for its expertise in granulation and coating technology, supplying high-quality industrial equipment for pharmaceutical, chemical, and food industries. Renowned for innovation and reliability, Freund consistently delivers engineered-to-order solutions tailored to client needs.

Technical Specifications


Bowl Capacity
10L,25L,65L
Working Capacity
3.0 - 7.0 L,7.5 - 17.5 L,19.5 - 45.5 L
Automation
Automatic (Recipe Driven) and Manual Modes
Mixer Speed
75-485 RPM,50-360 RPM,40-260 RPM
Cooling option
Jacketed Bowl for Product Temperature Control (Optional)
Drying integration
Vacuum Drying for One-Pot Processing (Optional)
Data Collection
USB Data Collection Port
Control System
Color Touchscreen Control System
Scalability
Engineered Scalability with Proportional Mixer Blade Tip-Speeds
Containment
Smart-Safe™ Containment Optional
Control System Compliance
21 CFR Part 11 Data,Recipe Handling System

Operating Characteristics


Working mechanism
Bottom Drive High Shear Wet Granulation
Integrated steps
Mixing and granulation
CIP/SIP
Easy cleaning and maintenance
Batch vs. continuous operation
Batch
Changeover time
Quick Changeover - No Tools Required
Control system
Color Touchscreen Control System
Scalability
Engineered Scalability
Automation level
Automatic and Manual Modes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


ISO Certification
ISO 9001
21 CFR Part 11
Data,Recipe Handling System

Physical Characteristics


Bowl Capacity
10L / 25L / 65L
Working Capacity
3.0 - 7.0L / 7.5 - 17.5L / 19.5 - 45.5L
Footprint
Compact
Interchangeable Product Bowls
Yes
Bottom Drive Design
Yes
Quick Changeover Design
No Tools Required
Jacketed Bowl
Optional
Vacuum Drying
Optional
Smart-Safe™ Containment
Optional
Control Panel Type
Color Touchscreen

Custom Options


Control Panel Type
Color Touchscreen Control System
Integration Possibilities
USB Data Collection Port
Automation Control
Automatic (Recipe Driven) and Manual Modes
Process Control
Validatable Process Control
Blade Speed Settings
User Defined Settings For Mixer and Chopper Blade Speeds
Product Temperature Control
Jacketed Bowl (Optional)
Vacuum Drying
Optional for One-Pot Processing
Safety Features
Smart-Safe™ Containment Optional
Scalability
Engineered Scalability
Control System Compliance
21 CFR Part 11 Data,Recipe Handling System
