Pilot plant freeze dryer for sensitive products

Achieve precise moisture control and nutrient preservation in food and pharmaceutical products with an advanced freeze drying solution designed for pilot-scale applications.

Freeze Dries and Preserves Food and Pharmaceutical Products

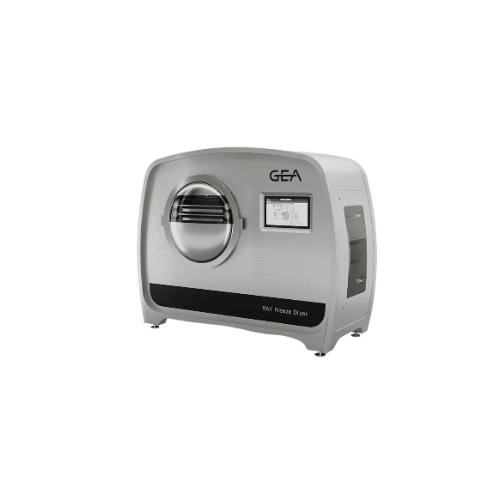

The RAY® Pilot Plant Freeze Dryer from GEA specializes in batch freeze drying for food, beverage, pharmaceutical, and pet food industries. It features a fully automatic process, performing sublimation under vacuum to remove inherent solvents as vapor, thus preserving the natural structure, color, and nutrients of products like instant coffee, fruits, and lactic acid bacteria. With a drying surface up to 1.5 m², it can handle capacities of up to 38 kg/day, offering scalability to industrial systems. The RAY® PP is equipped with a touchscreen interface, allowing precise control and documentation of parameters such as product temperature and vacuum pressure, crucial for ensuring repeatability and product integrity. It efficiently operates at pressures as low as 0.1 mbar and features rapid evacuation times for minimized downtime. The unit’s stainless steel construction ensures hygienic processing and ease of maintenance. It is ideal for R&D and pilot operations, providing a Plug ‘n’ Play solution with high-capacity vapor traps and a water-based heating system to maintain product quality.

Benefits

  • Ensures product integrity with precise control of drying parameters.
  • Minimizes downtime with rapid evacuation and deicing processes.
  • Reduces energy usage through optimized vacuum and heat settings.
  • Enhances product shelf-life and nutrient retention via vacuum sublimation.
  • Scalable design supports seamless transition to larger-scale operations.

General


Applications
Seafood,Pet food,Lactoferrin,Meat,Lactic acid bacteria,Enzymes,Vegetables,Instant coffee,Fruit
End products
Freeze-dried pet kibble,Freeze-dried shrimp,Freeze-dried strawberries,Freeze-dried beef strips,Lactoferrin powder,Probiotic supplements with freeze-dried lactic acid bacteria,Freeze-dried pineapple slices,Freeze-dried instant coffee,Freeze-dried apples,Enzyme supplements,Freeze-dried salmon,Freeze-dried vegetables like carrots and peas
Steps before
Chopping,Blanching,Pre-freezing
Steps after
Sterilization,Packaging,Quality Control
Input ingredients
instant coffee,fruit,vegetables,meat,seafood,pet food,lactic acid bacteria,enzymes,lactoferrin
Output ingredients
freeze dried coffee,freeze dried fruit,freeze dried vegetables,freeze dried meat,freeze dried seafood,freeze dried pet food,preserved lactic acid bacteria,preserved enzymes,preserved lactoferrin
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Drying surface
0.7–1.5 m²
Load
20–38 kg/day
Dry matter percentage
20.0%
Expected batch time
8.0 hours
Sublimation
15.3–30 kg H2O/day
Production capacity
4.0–8.0 kg/day
Installed power
12–25 Kw
Average consumption
7–12 Kwh/h
Water consumption
50–75 L/h
Pressure tolerance
0.1–0.2 mbar
Evacuation time
Less than 8 min
Vacuum regulation
0.1–5 mbar
Condenser temperature range
Monitored and logged
Heating and cooling control
20–140 ºC
Vapor trap capacity
2.5 kg H2O/m²/h
Drying process automation
Fully automated
Batch vs. continuous
Batch

Operating Characteristics


Working mechanism
Batch-based freeze dryer
Integrated steps
Automatic generation of drying profiles
Automation level
Touchscreen computer-based HMI
Batch vs. continuous operation
Batch
CIP/SIP
Easy to clean
Cleaning method
Hygienic processing
Changeover time
Short downtimes between batches
Energy efficiency
Average consumption 7–12 Kwh/h

Material Compatibility


Cleanability
Easy to clean and maintain
Corrosive resistance (e.g. acids)
Stainless steel construction

Physical Characteristics


Machine footprint
Compact design
Control panel type
Touchscreen
Cabinet material
Stainless steel
Discharge method
Batch
Evacuation speed
Less than 8 min
Tray loading efficiency
Efficient
Drying surface area
0.7 or 1.5 m²
Weight capacity
20 or 38 kg/day
Water consumption
50 or 75 L/h
Load capacity
4.0 or 8.0 kg/day

Custom Options


Control panel type
Touchscreen
Integration possibilities
Online monitoring and logging
Customizable drying profiles
Automatic generation
Batch size
RAY®PP 1
Footprint size
Compact
