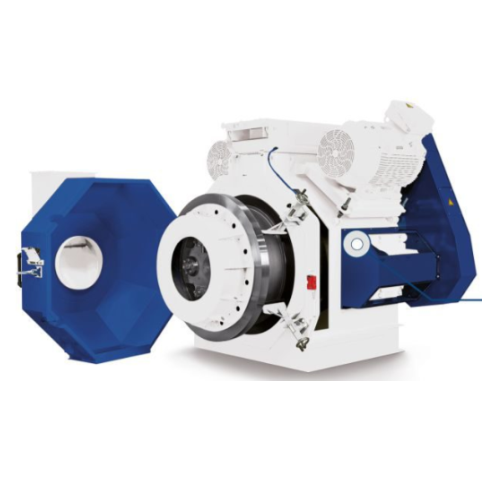

Pellet mill for animal feed production

Optimize your feed production with a robust pellet mill designed to enhance the durability and quality of animal feed pellets, ensuring consistent output and efficient processing.

Pellets Feed and Food Products Efficiently

Ottevanger Milling Engineers’ Progress Pellet Mills are engineered to address the diverse needs of feed producers in creating uniform feed pellets. These robust machines are designed with a unique stepped transmission system utilizing V-belts and timing belts, allowing higher motor power applications. Ideal for producing poultry, cattle, aquafeed, and pet food, they ensure consistent quality and optimized efficiency with a large die surface area and roller diameter. The mills support continuous, high-speed operation and integrate seamlessly into automated production lines, offering a quick die change system and central greasing. With options for two- or three-roller configurations and features like integrated pneumatic dumping and minimal maintenance requirements, the Progress Pellet Mills offer reliable and versatile functionality for animal and pet feed production.

Benefits

  • Ensures consistent pellet quality with uniform die and roller design.
  • Minimizes operational noise and vibrations for improved working conditions.
  • Extends component lifespan, reducing long-term maintenance costs.
  • Offers quick die changes, optimizing production uptime.
  • Enhances process efficiency with high motor power capabilities.

General


Applications
Pet food,Oilseed processing,Soybean processing,Aqua feed,Concentrates,Premix,Compound feed
End products
Dog biscuits,Cattle feed pellets,Poultry feed pellets,Soybean meal,Rapeseed oil,Fish feed pellets,Cat kibble,Soy protein isolate,Mineral premixes,Soy oil,Vitamin premixes,Shrimp feed pellets
Steps before
Grinding,Mixing,Conditioning
Steps after
Cooling,Crumbling,Sieving,Coating
Input ingredients
feed ingredients,raw materials,grains,soybeans,oilseeds,premix and concentrates
Output ingredients
pellets,compound feed pellets,pet food pellets,aqua feed pellets
Market info
Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.

Technical Specifications


Motor Power
Max 250 kW
Die Surface Area
Varies,up to 20,500 cm²
Roller Diameter
Varies,up to 1000 mm
Pellet Mill Type
Two or Three-roller
Die Change Time
Approx. 15 minutes
Die Speed
Variable
Main Shaft Bearings Lifetime
Extended/Longevity optimized
Pneumatic Quick-dump Chute
Integrated
Central Greasing System
Integrated
Die Fitting
Conical
Central Electrical Connection Box
Present
Automation
Present,but specifics unspecified
Frame Stability
Vibration-free,robust

Operating Characteristics


Working mechanism
Stepped transmission with V-belts and timing belts
Integrated steps
Pneumatic quick-dump chute
Vibration-free operation
Stable and robust frame
Noise level
Near-silent operation
Automation level
Central electrical connection box
Changeover time
Quick Die Change system (approx. 15 minutes)
Cleaning method
Easy to clean design
Maintenance
Minimal maintenance costs
Die speed variation
Variable die speed control
Greasing system
Central greasing system
Roller adjustment
Remote roller adjustment
Conical die fitting
Conical die fitting for longer lifetime

Material Compatibility


Abrasion resistance
High
Biological compatibility
N/A
Corrosive resistance (e.g. acids)
Stainless steel components
Density/particle size
Varied - Suitable for pellets
Cleanability
Easy to dismantle and clean

Physical Characteristics


Machine footprint
Varies by model
Frame type
Robust and stable
Die surface area
Large
Roller diameter
Large
Vibration
Vibration-free
Machine design
Simple
Discharge method
Integrated pneumatic quick-dump chute
Electrical connection
Central connection box
Maintenance
Minimal
Hoist facility
Integrated hoist facility

Custom Options


Control panel type
Central electrical connection box
Integration possibilities
Integrated pneumatic quick-dump chute
Roller configuration
Two or three-roller pellet mill
Die change system
Quick Die Change System
Roller adjustment
Remote roller adjustment
Feeder type
Forced feeder
Turning device
For slowly turning the die to the left or to the right
Heated components
Heated door/feeding chute
