Particle sizing solution for milling and sifting

Streamline your milling and sifting processes with a flexible system designed to interchangeably handle particle size reduction and screening, maximizing productivity and maintaining material purity across diverse powder formulations.

Mills and Sifts Powders for Consistent Particle Size

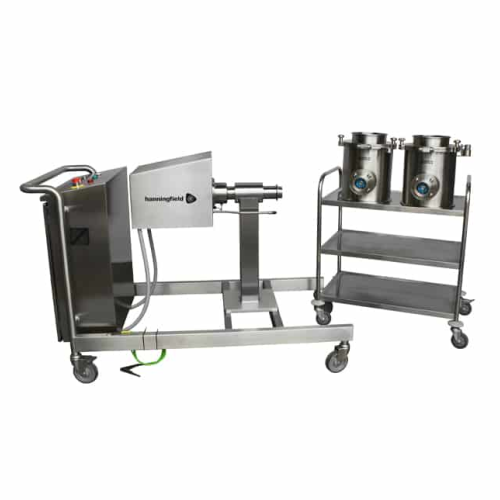

The Particle Sizing Solution from Hanningfield Process Systems seamlessly integrates milling and sifting functionalities into a single unit, effectively optimizing your production operations. This versatile equipment features interchangeable conical mill and centrifugal sifter heads, allowing for precise control over particle size distribution and uniformity. It is ideal for processing powder formulations such as tablets, capsules, and protein powders across industries including pharmaceuticals, nutraceuticals, chemicals, and food and beverage.

Engineered for efficiency, it supports inline operations with high throughput capabilities that extend from lab to pilot and full-scale production. The system operates at low heat, dust, and noise levels, enhancing workplace conditions and efficiency. Constructed from 316L stainless steel and featuring FDA-compliant components, it ensures compliance with industry standards while offering robust corrosion resistance.

The Particle Sizing Solution is equipped with a coupling drive arm for quick tool changes, facilitating easy cleaning and maintenance through its GMP-compliant, easy-clean design. Additionally, the ATEX/ex-proof version allows safe operation in volatile environments. Whether you’re de-lumping materials or achieving fine particle milling, this equipment is designed to meet and exceed the rigorous demands of modern production lines.

Benefits

  • Increases processing efficiency by combining milling and sifting into one compact unit.
  • Ensures consistent product quality with customizable particle sizing options.
  • Enhances operational safety and compliance with FDA-compliant and ATEX-certified design.
  • Minimizes maintenance effort with easy-to-clean, GMP-compliant components.
  • Supports scalable production from laboratory testing to full-scale operations.

General


Applications
Chemicals,Supplements,Vitamins,Oral solid dosage,Nutraceuticals,Food and beverage,Powder formulations,Cannabis products,Pharmaceuticals
End products
Baking mixes,Energy bars,Protein powders,Chemical powders,Fine chemicals,Powdered drinks,Vitamin tablets,Cannabinoid oils,Beverage mixes,Herbal extracts,Tablets,Flavoring agents,Capsules,Dietary supplements
Steps before
Powder Screening,De-lumping,Material Integrity Checking
Steps after
Packing,Tablet Pressing
Input ingredients
powder,agglomerated material,bulk material
Output ingredients
sifted powder,milled particles,de-lumped material
Market info
Hanningfield Process Systems is known for manufacturing high-quality, customized process handling, and containment equipment for industries such as pharmaceutical, food, and chemical, specializing in milling, sieving, and powder handling solutions.

Technical Specifications


Cost efficiencies
Integrates sifting and milling
Capacity
High throughput
Scalability
Lab to pilot to production
Construction
Stainless Steel 316L
Compliance
FDA Compliant
Operation
Inline feed and discharge
Noise generation
Low
Heat generation
Low
Dust generation
Low
Particle size variability
Changeable sifter basket / mill screen
Cleaning
Easy-Clean GMP Design,CIP/WIP
Explosive Protection
ATEX / Ex-proof versions available
Impeller type
Customisable and interchangeable
Mesh sizes
Various
Milling technology
Conical
Operation modes
Dry and wet milling
Security screening
High throughput and capture of alien objects

Operating Characteristics


Working mechanism
Milling and sifting
Integrated steps
Inline feed and discharge
Batch vs. continuous operation
Batch / Inline Continuous
CIP Principles
Detachable mill and sifter heads for CIP/WIP
Energy efficiency
Low heat,dust and noise generation

Material Compatibility


Biological compatibility
FDA Compliant
Cleanability
Easy-Clean GMP Design
Corrosive resistance (e.g. acids)
316L Stainless Steel Construction
Density/particle size
Various Mesh Sizes

Product type Characteristics


Heat sensitivity
Low heat generation
Noise level
Low noise generation
Dust generation
Minimal dust
Material Integrity
Preserves material through capture of alien objects
Flexibility
Interchangeable sifter and mill heads
Process Scalability
Lab to production scale

Physical Characteristics


Conical shape
Yes
Basket size
Various
Feed/Discharge method
Inline
Detachable heads
Yes

Custom Options


Material of Construction
Stainless Steel 316L
