Multilane wrapping solution for food and confectionery products

Enhance your packaging line efficiency with high-speed multilane wrapping that ensures precise product isolation and seamless integration into continuous production, ideal for confectionery and snack items.

Wraps and Seals Multilane Solid Products

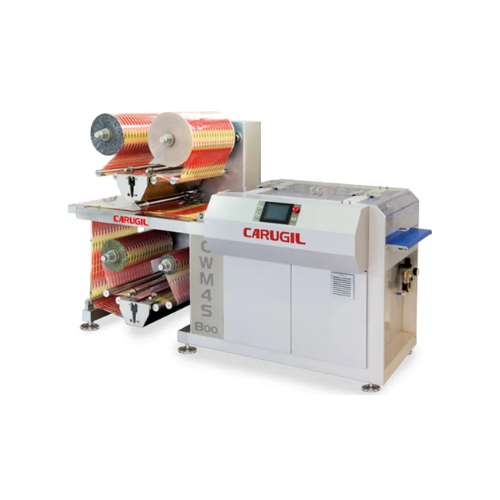

The CWM-4S from Carugil offers a specialized solution for efficient, high-speed packaging in sectors such as food, confectionery, and bakery. This horizontal form-fill-seal machine excels at processing various solid products, including licorice sticks, wafer bars, and chewing gum pellets, using multilane technology for parallel operation up to 40 lanes. Its robust design minimizes operation speed for enhanced reliability and gentle product handling, while optional features like a rotary knife and guillotine cater to continuous product needs. Air-tight sealing ensures consistent product isolation, contributing to extended shelf life. Integration is seamless with upstream forming and downstream cartoning and labeling processes, and the machine’s portability allows for easy alignment with existing production lines. Optional printing systems enable precise labelling, and the equipment supports easy maintenance with portable access configurations. With its high throughput capacity of up to 4,000 pieces per minute, the CWM-4S addresses complex packaging demands with efficiency and precision.

Benefits

  • Increases production efficiency with high-speed multilane operation up to 4,000 pieces per minute.
  • Enhances product shelf life with secure air-tight sealing.
  • Facilitates easy repositioning to align with existing production lines due to its portable design.
  • Optimizes labor with automatic cartoning and optional labelling capabilities.
  • Ensures gentle handling of products, preserving quality through low-speed lane operation.

General


Applications
Snacks,Pet food,Confectionery,Sweets,Bakery products
End products
Biscuits,Fruit paste sticks,Licorice sticks,Wafer bars,Chocolate bars,Chewing gum pellets,Dog chews,Soft candy pieces
Steps before
Mixing,Extruding,Preforming
Steps after
Cartoning,Labelling
Input ingredients
chewing gum,soft candy,fruit masses,licorice,wafers,biscuits,chocolate bars,dog sticks,fruit paste
Output ingredients
4-side seal packs,air-tight pouches
Market info
Carugil is known for its expertise in designing and manufacturing industrial engineered-to-order equipment, particularly for the confectionery and food packaging industries, providing customized solutions that meet specific client needs with high-quality standards and innovative technology.

Technical Specifications


Lane capacity
Up to 40 lanes
Production speed
Up to 4,000 pieces/min
Seal type
4-Side Seal
Portability
Portable with wheels
Product compatibility
Licorice,Wafers,Biscuits,Chocolate Bars,Dog Sticks
Optional equipment
Rotary knife,Guillotine
Printing system
For labelling individual packages (optional)

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Inline Continuous

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
High
Corrosive resistance (e.g. acids)
High
Density/particle size
Suitable for various sizes

Physical Characteristics


Machine Footprint
Portable with wheels
Lane Configuration
4 to 40 lanes
Wrap Style
4-Side Seal

Custom Options


Number of lanes
4 to 40 lanes
Portable design
Fitted with wheels
Sealing options
4-Side Seal
Optional rotary knife
For continuous products
Printing system
Optional for labeling
Optional guillotine
Optional
