Linear belt vibratory weigh filler for solid chocolate

Optimize your chocolate production by minimizing product giveaway and ensuring gentle handling with a solution designed for precise weight filling and dosing of delicate confectionery items.

Weighs and Fills Solid Chocolates Accurately

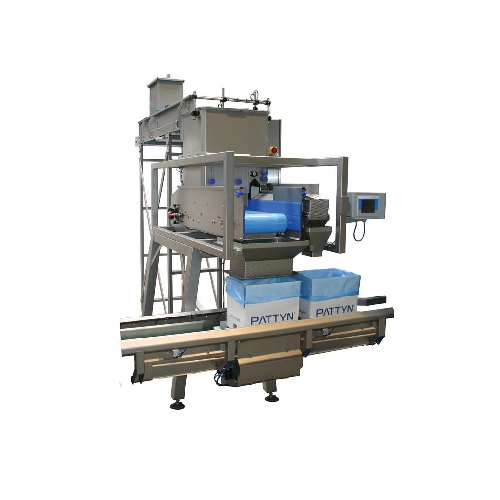

The LBVF-34A from Pattyn Packaging Lines is a linear belt vibratory weigh filler that expertly combines belt and vibratory dosing technologies to deliver precise chocolate weighing and filling. This machine is engineered to minimize product giveaway by utilizing a belt for rapid coarse filling and a vibratory system for fine dosing. It’s commonly used for packaging chocolate bars, truffles, and various other solid confections in the food and confectionery industries. Capable of handling up to 6 cycles per minute, the LBVF-34A operates seamlessly in high-speed, automated production settings. Featuring quick-release demountable belts, a color touch panel for intuitive operation, and a compact footprint, it ensures quick cleaning and minimal downtime. Additionally, it’s designed to integrate smoothly with upstream and downstream equipment in a fully automated bulk packaging line, making it an ideal choice for efficiency-driven chocolate manufacturing facilities.

Benefits

  • Minimizes product giveaway with precise vibratory fine dosing.
  • Ensures gentle handling of fragile chocolate products using a low drop height.
  • Reduces cleaning time with quick-release demountable components.
  • Integrates seamlessly into automated production lines, enhancing operational efficiency.
  • Handles high-speed packaging demands with consistent accuracy.

General


Applications
Solid chocolate,Sweets,Snacks
End products
Chocolate cubes,Chocolate truffles,Snack bites,Hard candies,Chocolate coins,Chocolate bars,Chocolate chips,Fruit gummies,Chocolate pralines
Steps before
Case erecting,Bag inserting
Steps after
Bag sealing,Case closing,Palletizing
Input ingredients
solid chocolate
Output ingredients
boxed chocolate,weighed chocolate,filled chocolate containers
Market info
Pattyn is known for its expertise in designing and manufacturing industrial packaging solutions, specializing in ETO equipment for bulk packaging automation, with a strong reputation for innovation, quality, and customer-focused service in the industry.

Technical Specifications


Filling Speed
Up to 6 c/min
Container Size - Minimum
L.300 x W.200 x D.100 mm
Container Size - Maximum
L.800 x W.500 x D.650 mm
Filling Technology
Belt coarse filling,Vibratory fine filling
Drop Height
Low for gentle treatment
Cleaning Method
Quick,easy cleaning for minimum down-time
Automation
Colour touch panel control

Operating Characteristics


Working Mechanism
Belt and Vibratory Dosing
Integrated Steps
Coarse and Fine Filling
Automation Level
PLC / Colour Touch Panel
Flow Type
Batch
Changeover Time
Quick,Easy
CIP/SIP
Quick Release for Cleaning
Cleaning Method
Manual / Quick Release

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Footprint
Not specified
Discharge Method
Belt for coarse filling,vibratory for fine filling
Control Panel Type
Colour touch panel
Feed Method
Linear belt and vibratory
Hopper Type
Small vibratory weigh hopper
Conveyor
Conveyor with loadcell

Custom Options


Control panel type
Colour touch panel
Cleaning method
Quick,easy cleaning
Integration possibilities
Pattyn case erector,bag inserter,case closer,palletizer
