Lab mixer for high-accuracy powder and paste mixing

Achieve precise mixing of powders and pastes with a gentle convective action, ensuring product integrity in R&D settings, while offering scalable insights for production-level processes.

Mixes and Blends Powders, Slurries, and Pastes

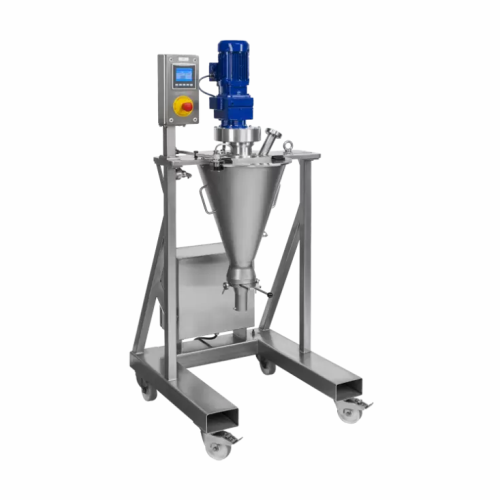

The Nauta® Minimix from Hosokawa Micron is a lab mixer designed for precision mixing in research and development settings. This conical screw mixer operates on a convective mixing principle, where a rotating screw combined with an orbital motion ensures thorough and gentle blending of powders, slurries, and pastes without product distortion. It is ideal for creating high-quality formulations in pharmaceuticals, cosmetics, plant-based proteins, and more.

Capable of operating in batch and pilot-scale processes, the Minimix facilitates easy scalability to production levels, delivering essential mixing data. The equipment includes models with a vessel capacity from 5 to 20 liters and is known for its energy efficiency, featuring a typical motor power of just 0.18 kW. Its design supports liquid addition and temperature treatments, with special configurations available for vacuum and pressurized conditions.

Available in atmospheric and thermal/hazardous models, the Minimix is constructed from stainless steel for durability and compatibility with a variety of materials. It integrates seamlessly into lab environments with its full control systems, including PLC and frequency converters, and allows easy cleaning with features like quick-release fasteners and half-hinged acrylic covers.

Benefits

  • Enables precise scaling from lab to production with reliable mixing data.
  • Conserves energy with an efficient low-power motor design.
  • Protects product integrity with gentle, distortion-free mixing.
  • Flexible operation supports a diverse range of materials and treatment processes.
  • Facilitates easy maintenance and rapid cleaning with user-friendly design features.

General


Applications
Chemicals,Beverages,Food,Animal feed,Marine algae,Battery materials,Nuclear,Ceramics,Metals,Plant-based proteins,Cosmetics,Kaolin,Gypsum,Minerals,Pharmaceuticals
End products
Cosmetic powders,Nutraceutical blends,Nutritional supplements for marine algae,Plant-based meat alternatives,Protein shakes,Gypsum plaster,Battery electrodes,Nuclear fuel pellets,Metal powder coatings,Ceramic powders,Fine chemical additives,Animal feed pellets,Pharmaceutical powders,Kaolin clay
Steps before
Size Reduction,Grinding,Powder Preparation,Drying
Steps after
Temperature Treatment,Cooling,Heating,Packing
Input ingredients
free flowing powders,fragile powders,segregative powders,pastes,slurries,liquid addition,sticky products,segregative products
Output ingredients
high quality powder mixtures,mixed pastes,mixed slurries
Market info
Hosokawa Micron is renowned for specializing in the manufacturing of powder and particle processing technologies, including mixing, drying, and milling equipment. They are respected for their innovative solutions and engineering excellence in industrial engineered-to-order equipment markets.

Technical Specifications


Mixing speed
Variable
Mixing accuracy
High accuracy
Vessel volume
5,10,20 litres
Power consumption
0.18 kW
Vessel height
1140 mm
Total height
1710 mm
Automation
PLC-controlled
Outlet to floor
492 / 582,439 / 529,286 / 376 mm
Frame width
760 mm
Temperature treatment
Cooling / Heating
Pressure handling
Pressurized / Vacuum conditions
Vessel filling volume
4.2,8.4,16.5 l for powder

Operating Characteristics


Working mechanism
Convective mixing
Batch vs. continuous operation
Batch
Automation level
PLC-controlled
Cleaning method
Manual
Energy efficiency
Low power consumption
Temperature treatment
Cooling / Heating
Pressure conditions
Pressurized / Vacuum

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Vessel shape
Conical
Vessel size
5,10,20 litres
Total height
1710 mm
Frame width
760 mm
Discharge method
Manually operated ball valve
Outlet to floor (feet/wheels)
492 / 582 mm,439 / 529 mm,286 / 376 mm

Custom Options


Control panel type
Full controls incl. PLC and frequency converter
Integration possibilities
Prepared for fork truck transportation
Vessel type
Forced stainless steel vessel with quick release fasteners
Cover type
Stainless steel cover with DN100/150 charging opening with tri-clamp fastener
Execution type
Atmospheric execution / For hazardous and thermal applications
