Jars and bottles rinsing solution

Ensure impeccable hygiene and particle-free cleanliness for your jars and bottles by integrating this high-speed rinsing solution into your production line, effectively preparing containers for their filling and sealing stages.

Rinses and Sterilizes Jars and Bottles

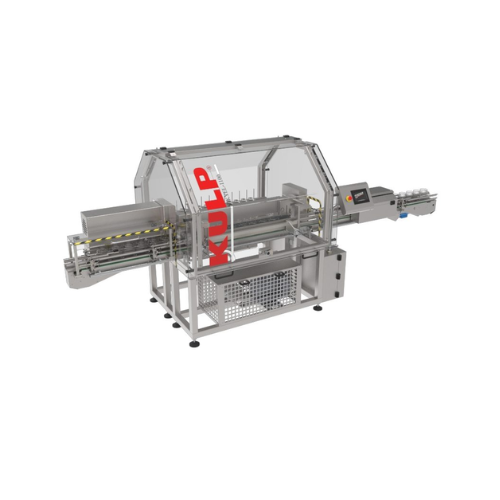

The KULP YIKYEL-1100 Air Rinser by Kulp Makina is engineered to tackle cleanliness in food, beverage, pharmaceutical, and consumer goods packaging. The unit uses high-efficiency air knives to remove particulates from jars and bottles, leveraging a FESTO filtration system to ensure clean input air. Its flexibility accommodates various container sizes, and it enhances sterilization through an optional UV light source. Operating at a capacity of 2400 – 4800 packages per hour, the YIKYEL-1100 seamlessly incorporates into continuous, high-speed production lines. Constructed with a robust stainless steel frame, it supports easy maintenance with a user-friendly touch screen interface, offering both English software and safety features like polycarbonate covers and security switches.

Benefits

  • Enhances hygiene and product safety with effective particulate removal and optional UV sterilization.
  • Increases production efficiency with a throughput of up to 4800 packages per hour.
  • Adapts to multiple container sizes, streamlining integration into diverse production lines.
  • Minimizes maintenance and operational costs with user-friendly controls and robust construction.
  • Improves air quality and productivity through high-performance FESTO filtration.

General


Applications
Beverages,Sauces,Liquid formulations,Detergents,Snacks,Sweets,Spices,Food products,Essential oils
End products
Vinegar,Cooking oils,Detergent powder,Chocolate syrup,Spice blends,Powdered milk,Salad dressing,Honey,Vanilla extract,Iced tea,Soy sauce,Energy drinks,Herbal tinctures,Sports drinks,Tomato sauce,Liquid soap,Lemon extract,Fruit juices
Steps before
Collection,Sorting,Inspection
Steps after
Sterilization,Packing
Input ingredients
glass jars,plastic jars,tinplate jars,glass bottles,plastic bottles
Output ingredients
clean jars,clean bottles,sterilized containers
Market info

Technical Specifications


Container type
Glass / Plastic / Tinplate
Capacity
2400–4800 Packages/Hour
Filtering System
FESTO filtration system
Automation
Touch Screen Control Panel
Disinfection method
UV Light source
Frame construction
Heavy Duty Stainless Steel
Cleaning method
Air Knife

Operating Characteristics


Working mechanism
Air Rinser with air knife and UV sterilization
Integration capability
Can be integrated into any kind of packaging lines
Package type flexibility
Glass,Plastic,and Tinplate
Automation level
Touch Screen Control Panel
Package dimension adaptability
High flexibility for different dimensions
Disinfection method
Optional UV Light Source
Process flow
Inline Continuous
Control system
User-friendly interface software in English
Cleaning method
Filtered air for dust and particulates removal

Material Compatibility


Material Type
Glass
Material Type
Plastic
Material Type
Tinplate
Corrosive resistance
Yes
Cleanability
High

Physical Characteristics


Control panel type
Touch Screen Control Panel
Frame material
Heavy Duty Stainless Steel Frame
Enclosure type
Lighted cabin with Polycarbon covers
Package handling method
Rotates the packages and uses air knife
Discharge method
UV LIGTH tunnel for sterilization
Container type
Glass,Plastic,Tinplate

Custom Options


Control panel type
Touch Screen Control Panel
Integration possibilities
Easily integrated into any kind of packaging lines
UV Light source
Optional for disinfection
User interface language
English
