Intermittent motion cartoning machine for blister packs
Optimize your packaging line with a space-efficient cartoning machine, perfect for precise integration with blister packaging systems and ensuring seamless leaflet insertion and reliable product flow.
Efficiently Cartons and Integrates Blister Packs

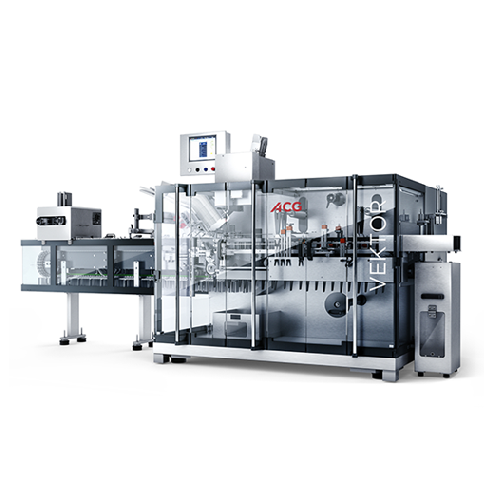

The VEKTOR from ACG is a compact, intermittent-motion cartoning machine tailored for the pharmaceutical and nutraceutical sectors. It specializes in packaging stacked blister packs and solid dose medications. Built on a robust servo-driven balcony design, the VEKTOR ensures compliance with cGMP standards, offering smooth and silent operation for minimal disruption. It integrates seamlessly with upstream blister packaging machines, streamlining leaflet and booklet insertion into cartons of varying sizes. With a maximum output of 80 cartons per minute, it supports a variety of carton types, enhancing flexibility in production lines. The system incorporates a ‘No product-No leaflet-No carton’ function to ensure reliable, error-free output. Additionally, the VEKTOR requires minimal changeover time due to its single format part feature, optimizing floor space and operational efficiency.
Benefits
- Saves production floor space with its compact design.
- Streamlines operations with quick and easy changeover.
- Ensures reliable, error-free output with 'No product-No leaflet-No carton' feature.
- Enhances operational efficiency through seamless integration with other packaging systems.
- Meets stringent industry standards with cGMP-compliant construction.
- Applications
- Nutraceuticals,Pharmaceutical tablets,Blister packs
- End products
- Immune support tablets,Over-the-counter medicines,Vitamin c tablets,Antacid tablets,Cold and flu tablets,Fish oil capsules,Herbal extract capsules,Probiotic capsules,Multivitamin supplements,Calcium supplements
- Steps before
- Blister packaging,Upstream processing
- Steps after
- Packing,Leaflet insertion,Booklet transfer
- Input ingredients
- blister packs,cartons,leaflets,booklets
- Output ingredients
- packaged cartons
- Market info
- ACG World is known for manufacturing capsules and capsule filling machines, providing integrated pharmaceutical solutions with a strong reputation for innovation, quality, and comprehensive service offerings in the pharmaceutical manufacturing industry.
- Maximum output
- 80 cartons/min,50 cartons/min
- Carton width
- Min 20 mm,Max 95 mm
- Min 50 mm,Max 130 mm
- Carton height
- Min 16 mm,Max 90 mm
- Min 16 mm,Max 100 mm
- Carton length
- Min 65 mm,Max 200 mm
- Min 65 mm,Max 220 mm
- Carton type
- Reverse tuck-in,glued type,parallel tuck-in,front tuck-in/rear gluing,gluing after tuck-in
- Automation
- Servo-driven platform
- Integration capability
- Leaflet and booklet transfer units
- Automation level
- Manual / PLC / SCADA
- Batch vs. continuous operation
- Batch / Inline Continuous
- Changeover time
- Quick and easy
- CIP/SIP
- Easy access and cleaning
- Cleaning method
- Easy access for manual cleaning
- Energy efficiency
- Cost-effective
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Control panel type
- Servo-driven platform
- Integration with upstream equipment
- Blister packaging machines
- Changeover capability
- Quick and easy
- Product handling system
- 'No product-No leaflet-No carton' system
