Horizontal load carton erector for food production

Enhance your production line with precise carton erecting, loading, and sealing—ideal for efficiently packaging diverse food products while maintaining high hygiene standards in compact spaces.

Erects, Loads, and Seals Cartons

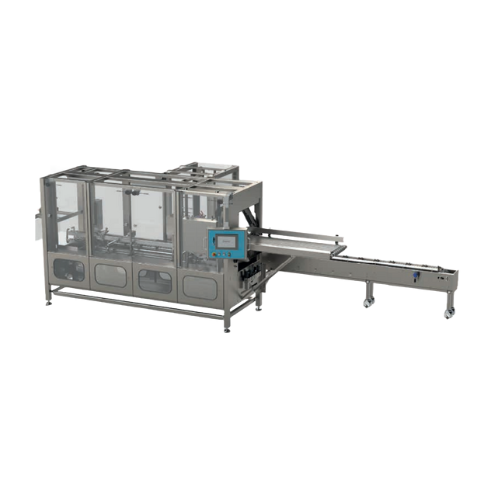

The Cartoner 100 Horizontal Load Intermittent Motion Cartoning Machine from Blueprint Automation is designed specifically for high-speed, automated cartoning processes. It excels in erecting, loading, and sealing cartons, making it integral to packaging solutions in the food and pharmaceutical sectors. With the capability to process up to 100 pre-glued cartons per minute, its intermittent motion provides high throughput in a compact footprint. The machine employs servo-driven and AC drive systems, ensuring precise and accurate operations. Its almost-completely stainless steel construction promotes exceptional cleanliness, adhering to industry hygiene standards critical for food production. The Cartoner 100 supports a range of applications, from bakery goods and dairy to pharmaceuticals and personal care products, accommodating diverse end products including cake slices, cat food cans, and pill bottles. Its modular design allows seamless integration into existing production lines, providing customization options tailored to unique operational needs. Additionally, it meets industry certifications and supports easy cleaning and maintenance—a must for maintaining product quality and maximizing uptime.

Benefits

  • Increases production efficiency with high-speed operation handling up to 100 cartons per minute.
  • Minimizes contamination risk with easy-to-clean stainless steel construction.
  • Enhances packaging accuracy with servo-driven and AC drive systems.
  • Integrates seamlessly into existing lines with compact design and modular integration options.
  • Ensures compliance with stringent hygiene standards required in food and pharmaceutical industries.

General


Applications
Personal care,Frozen,Protein,Pet food,Snacks,Bakery,Confectionery,Fresh produce,Dryfood,Pharma,Ice cream,Dairy
End products
Powdered milk,Pill bottles,Pasta,Cake slices,Frozen vegetables,Salad greens,Cat food cans,Potato chips,Chocolate bars,Cheese wedges,Shampoo bottles,Ice cream sandwiches,Protein bars
Steps before
Product Filling,Primary Packaging
Steps after
Glue Application,Flap Closure,Secondary Packaging,Shipping Preparation
Input ingredients
pre-glued carton,product
Output ingredients
loaded carton,closed carton,sealed carton
Market info
BluePrint Automation is known for designing and manufacturing innovative packaging automation systems, specializing in end-of-line robotic case packing solutions for various industries, enhancing operational efficiency and product handling with a strong reputation for quality and innovation.

Technical Specifications


Capacity
Up to 100 cartons per minute
Footprint
Relatively small
Material
Stainless steel
Drive type
Servo driven / AC drives
Operation mode
Intermittent Motion
Hygiene level
High standard suitable for food production

Operating Characteristics


Working mechanism
Intermittent Motion
Integrated steps
Carton erecting,loading,sealing
CIP/SIP
Not specified
Automation level
Servo driven or AC drives
Batch vs. continuous operation
Intermittent (Batch)
Cleaning method
Hygienic design for food industry
Changeover time
Not specified

Material Compatibility


Corrosive resistance (e.g. acids)
High - suitable for food production industry
Cleanability
High standard due to stainless steel construction
Biological compatibility
Suitable for hygienic applications

Physical Characteristics


Machine footprint
Compact
Material construction
Stainless steel
Discharge method
Pocket-to-carton transfer
Load capacity
Up to 100 cartons per minute
Conveyor type
Horizontal load
Drive type
Servo driven / AC drives
Hygienic design
Yes

Custom Options


Control panel type
Touchscreen HMI
Integration possibilities
PLC/SCADA compatible
Material of construction
Stainless steel
Drive system
Servo driven or AC drives
