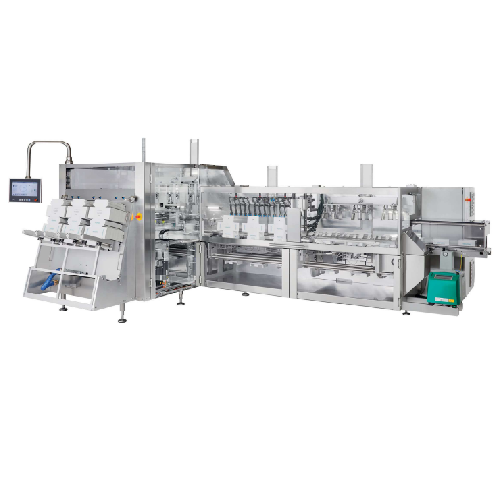

High-speed cartoning system for primary wrapped products

Optimize your packaging line with this high-speed cartoning system, designed for seamless integration with primary packaging machines, ensuring rapid handling and precise packing of small-sized, primary wrapped products.

Cartons Solid Products at High Speed

The BLM cartoning system from Theegarten-Pactec offers exceptional speed and flexibility for food, confectionery, beverage, and household product packaging. With a modular design, it smoothly integrates into your production line, efficiently erecting, filling, and closing cartons for solid products like chocolate bars, cereals, and dishwasher tablets. Capable of handling up to 2,000 individual products per minute, this system supports various packaging formations and carton structures, allowing tailored configurations to meet your specific requirements. The cartoning system’s continuous operation is enhanced by its ability to connect directly to high-output primary packaging machines, ensuring seamless processing. Designed for energy efficiency, it optimizes throughput while minimizing operational costs, a key consideration for sustainable production. Its robust construction and material options ensure durability and compatibility with diverse products, with available engineering support for tailored system solutions.

Benefits

  • Enhances productivity by processing up to 2,000 products per minute.
  • Minimizes labor costs with its fully integrated, continuous operation.
  • Adapts to various product sizes and packaging formats for versatile use.
  • Optimizes space and efficiency with a modular system design.
  • Ensures seamless integration with existing high-output packaging lines.

General


Applications
Soft caramels,Fudge,Hard candies,Effervescent tablets,Stock cubes,Chocolate products,Toffee,Cereals,Jelly products,Bubble gum products,Dishwasher tablets,Chewing gum
End products
Mint-flavored chewing gum,Granola bars,Cornflakes,Bouillon cubes,Toffee squares,Muesli packs,Fudge cubes,Fruit-flavored jelly candies,Vitamin c effervescent tablets,Chocolate bars,Caramel chews,Fruit-flavored bubble gum,Hard peppermint candies,Detergent pods
Steps before
Primary packaging,Product wrapping,Product feeding
Steps after
Carton sealing,Bulk packaging,Logistics preparation
Input ingredients
primary wrapped products,wrapped chocolate bars,wrapped bouillon cubes,cereals,soft caramels,stock cubes,dishwasher tabs
Output ingredients
display cartons,cartoning system
Market info
Theegarten-Pactec is known for its expertise in manufacturing highly specialized packaging machines for small-sized confectionery products, offering innovative, flexible, and efficient solutions tailored to various customer needs in the industry.

Technical Specifications


Speed
2,000 individual products per minute
Display Carton Speed
120 display cartons per minute
Capacity
600 wrapped chocolate bars per minute
Capacity
2,000 wrapped bouillon cubes per minute
Product Type
Small-sized primary wrapped products
Automation
Simultaneous erecting,filling,and closing
Modularity
Modular system for different product sizes,output ranges,packing formations,and box designs
Direct Connection
Designed for direct connection to primary packaging machines

Operating Characteristics


Product handling flexibility
Modular system for different sizes
High-speed operation
2,000 individual products per minute
Modular design
Allows high flexibility in product formation
Simultaneous process steps
Erecting,filling,and closing of cartons
Direct integration capability
Connects with high-output primary packaging machines

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Footprint
Compact
Modular Design
Yes
Carton Size Range
Small-sized primary wrapped products
Discharge Method
Simultaneous erecting,filling and closing
Control Panel Type
Standard

Custom Options


Control panel type
Touchscreen / PLC-based
Box design flexibility
Different designs possible
