High shear wet granulation line
Achieve consistent and uniform granules with energy-efficient wet granulation designed to optimize mixing and drying, simplifying your formulation process and enhancing end-product quality.
Homogenizes and Granulates Powders Efficiently

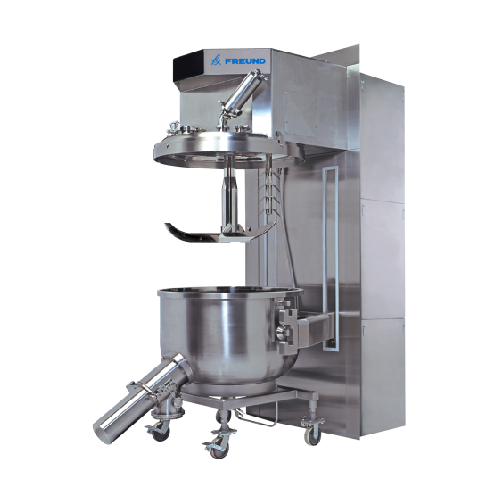

The GMX GRANUMEIST® from Freund is a high shear wet granulator and mixer designed for pharmaceutical, nutraceutical, and fine chemical applications. It features a top-drive system, simplifying cleaning and maintenance while enhancing user safety. This equipment excels in creating consistent granule density and homogeneity for products like effervescent tablets, protein powders, and APIs. With bowl capacities ranging from 150L to 1200L, it supports batch operations and integrates easily into existing production lines with user-defined mixer and chopper speeds. The system offers optional vacuum drying for one-pot processing and an EcoClean™ technology for efficient cleaning. Compatible with cGMP standards, it promotes secure operations with a Smart-Safe™ containment option and features a color touch screen for process control, supported by multiple end-point detection parameters.
Benefits
- Enhances production efficiency by achieving consistent granule density and homogeneity.
- Reduces cleaning time and maintenance efforts with a top-drive design and removable components.
- Increases processing flexibility with user-defined mixer and chopper speeds.
- Complies with cGMP standards, ensuring safe and secure pharmaceutical manufacturing.
- Supports diverse product processing, including powders, granules, and liquids, for versatile applications.
- Applications
- Vitamins,Supplements,Fine chemicals,Pharmaceutical tablets,Nutraceuticals,Pharmaceutical powder,Biopharmaceuticals
- End products
- Dietary supplement granules,Multivitamin tablets,Active pharmaceutical ingredients (apis),Vitamin c tablets,Chewable vitamins,Probiotic capsules,Protein supplement powders,Enzyme supplements,Effervescent tablets,Omega-3 capsules
- Steps before
- Mixing,Powder Blending
- Steps after
- Drying,Tablet Coating,Roller Compaction,Tableting
- Input ingredients
- powders,aqueous solutions,solvents
- Output ingredients
- medium density granules,high density granules,wet granules
- Market info
- Freund is known for its expertise in granulation and coating technology, supplying high-quality industrial equipment for pharmaceutical, chemical, and food industries. Renowned for innovation and reliability, Freund consistently delivers engineered-to-order solutions tailored to client needs.
- Capacity
- 50–800 L
- Batch vs. continuous
- Batch
- Mixer Power
- User-Defined
- Granulation Time
- Multiple End-Point Detection
- Automation
- Automatic (Recipe Driven) and Manual Mode
- Data Collection
- USB Data Collection Port
- Processing Type
- Aqueous and Solvent Processing
- Temperature Control
- Optional Jacketed Bowl for Product Temperature Control
- Cleaning Method
- Single Point Connection For Cleaning Solutions
- Control System
- Color Touch Screen Control System
- Containment
- Smart-Safe™ Containment Optional
- Control System
- COMPUTMAutomated Control System
- Compliance
- 21 CFR Part 11 Data,Recipe Handling System
- Working Mechanism
- High Shear Wet Granulation
- Integrated Steps
- One-Pot Processing
- Batch vs. Continuous Operation
- Batch
- CIP/SIP
- CIP Integrated
- Automation Level
- Automatic and Manual Modes
- Cleaning Method
- CIP / Removable Bowl and Mixing Blade
- Processing Flexibility
- Aqueous and Solvent Processing
- User-Defined Mixer and Chopper Speeds
- Available
- Drying Integration
- Optional Vacuum Drying
- Abrasion resistance
- Yes
- Cleanability
- Easy cleaning with removable parts
- Corrosive resistance (e.g. acids)
- Optional jacketed bowl for corrosion resistance
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Integrated processing
- Vacuum drying (optional)
- Machine Footprint
- Reduced processing area required
- Bowls Available
- Removable bowl,additional bowl for quick process changeover (optional)
- Mixing Blade
- Removable with fixed bowl lid
- Top Drive Design
- Allows for easy cleaning and maintenance
- Vertical Shaft Chopper
- For improved granulation
- Bowl Capacity
- 150L to 1200L
- Working Capacity
- 50L to 800L
- Control panel type
- Color Touch Screen Control System
- Integration possibilities
- 21 CFR Part 11 Data,Recipe Handling System
- Installation
- Optional Stand-Alone Installation Available
- Processing Flexibility
- User-Defined Mixer and Chopper Speeds
- Containment Technology
- Smart-Safe™ Containment Optional
- Cleaning Technology
- EcoClean™ Technology
- Process Control
- Automated (Recipe Driven) and Manual Mode
- Additional Features
- Removable Bowl and Mixing Blade with Fixed Bowl Lid
- Additional Options
- Optional Vacuum Drying for One-Pot Processing
- Product Temperature Control
- Optional Jacketed Bowl
- System Connection
- Single Point Connection For Cleaning Solutions
- End-Point Detection
- Multiple Parameters
