High shear mixer for viscous powder dissolution

Need consistent, homogeneous blending of high-viscosity liquids and powders? This system offers powerful high shear mixing and vacuum capabilities, ensuring uniform distribution and efficient processing of complex formulations.

Mixes and Emulsifies High-Viscosity Products

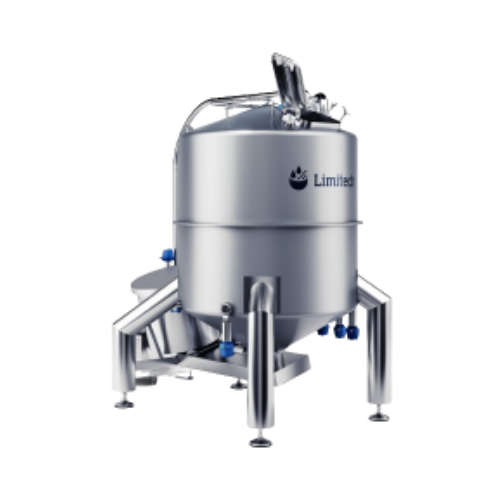

The SuperFlow 1 Batch from Limitech A/S is a robust high shear batch mixer engineered to efficiently handle high-viscosity products across multiple industries, including food, dairy, beverage, personal care, and pharmaceuticals. Its standout feature is the powerful mixing wheel that ensures quick and uniform blending, emulsifying powders into liquids regardless of viscosity levels, and achieving consistent texture in end-products like flavored milk, mascaras, toothpaste, and more. With a capacity range from 50 to 6,000 liters, it supports batch operations while integrating seamlessly with inline systems. The mixer offers optional vacuum and direct steam injection capabilities, enhancing product consistency and processing efficiency. Energy-efficient with variable-speed motor control, the SuperFlow 1 ensures reduced energy consumption. Constructed from high-grade materials, it is CIP-ready, simplifying cleaning and maintenance. Limitech provides customization, allowing for tailored solutions with comprehensive engineering support to meet specific production requirements.

Benefits

  • Achieves consistent product quality with efficient high-viscosity emulsification.
  • Minimizes energy usage through optimized motor control.
  • Reduces contamination risk with CIP-ready design.
  • Streamlines process integration with customizable features and support.
  • Enhances production flexibility with versatile capacity options.

General


Applications
Sauces,Gels,Soft drinks,Foundation,Ice cream mix,Flavored milk,Dairy,Soft gels,Mascara,Toothpaste,Condiments,Pharma,Recombined milk,Fruit desserts,Personal care,Lotion and creams,Pet food,Powder,Cream fillings,Carbonated drinks,Baby food,Paints,Beverages,Chocolate fillings,Vegan/plant-based products,Dairy products,Lipstick
End products
Oat milk yogurt,Omega-3 soft gels,Bavarian cream,Processed cheddar cheese,Volumizing mascara,Anti-aging cream,Cola soda,Horseradish cream sauce,Lip balm,Aloe vera gel,Mint toothpaste,Herbal dog food,Hollandaise sauce,Acrylic emulsion paint,Strawberry flavored milk,Vanilla ice cream base,Talcum powder,Tropical fruit mousse,Uht recombined milk,Carbonated lemonade,Ganache,Fruit baby puree,Vegan protein shake,Liquid foundation
Steps before
Ingredient Dispensing,Pre-Mixing,Powder Sieving,Powder Blending
Steps after
Cooling,CIP Cleaning,Quality Control
Input ingredients
powders,thickeners,liquids
Output ingredients
homogenous mixtures,uniform powder blends,high viscous products
Market info
Limitech is known for manufacturing customized food processing equipment, specializing in jacketed kettles and mixers for the food industry, focusing on flexibility and quality to meet client-specific requirements.

Technical Specifications


Capacity
50–6,000 L
Mixing type
High shear mixing
Mixing tools
Mixing wheel,stator,knife
Heating method
Direct steam,Indirect steam
Vacuum capability
Optional
CIP-Readiness
Yes
Customization
Available with technical department
Automation
Frequency inverter on mixer
Cooling option
Cooling in jacket
Direct steam injection
Yes
Dispersion
Yes
Dissolving capability
High viscous products

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch
CIP/SIP
CIP Ready
Cleaning method
CIP

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Viscosity range
Low to high viscosity
Temperature sensitivity
Heat sensitive
Foaming
Non-foaming
Powder dissolving capability
High capacity
Container size
50 to 6,000 liters
Agglomeration risk
Low due to high shear mixing
Homogenizing capacity
Excellent

Physical Characteristics


Machine capacity
50 to 6,000 liters
Changeable mixing tools
Mixing wheel,stator,knife
Vacuum capability
Optional
Water inlet location
On top
Vortex breaker
Included
Welded cap with manway hatch
Included
Cooling in jacket
Optional

Custom Options


Volume range
50 to 6,000 liters
Vacuum option
Available
Heating option
Direct steam / Indirect steam
Cooling option
Jacket cooling
Frequency inverter
Available on mixer
Mixing tools
Changeable
Integration possibilities
Stand-alone or part of a process line
Control panel type
CIP-Ready
