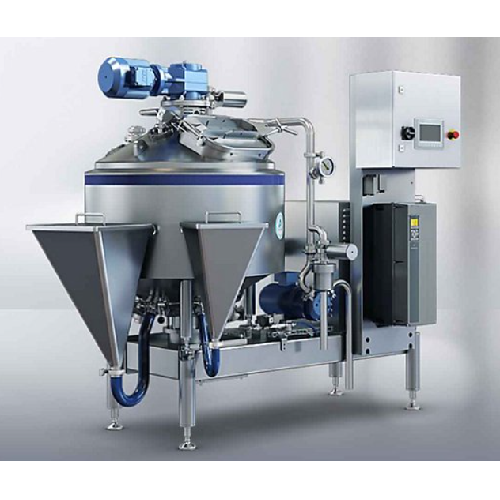

High shear mixer for smooth or particulate food products
Achieve consistent quality in diverse food products with precise mixing, cooking, and cooling—all in one compact unit designed for easy operation and swift maintenance.
Mixes, Cooks, and Cools Diverse Food Products
The Tetra Pak® High Shear Mixers B200-300 Series, designed by Tetra Pak, offers a reliable solution for food manufacturers seeking versatility in batch processing. These mixers efficiently blend, cook, and cool various food and beverage products such as vegan spreads, sweet chili sauce, and plant-based milks. Their closed-top design allows for manual operation with straightforward controls, promoting ease of use and minimal setup requirements. The mixers handle viscosities up to 20,000 cp and offer flexible shear rates from low to 60,000 s-1, providing tight control over texture and particle size. Enhance production efficiency with vacuum mixing options for increased capacity, while robust construction ensures seamless integration into existing lines. The mixers feature industry-standard components, ensuring long-term durability and compliance with food safety standards. Whether you are expanding capacity or starting a new production line, Tetra Pak® provides complete engineering support and customization to meet your specific needs.
Benefits
- Enhances production flexibility by handling a wide range of viscosities and particle sizes.
- Streamlined operations reduce the need for additional equipment, saving space and costs.
- Simplifies recipe adjustments and process control through easy-to-use manual interface.
- Increases production efficiency with quick changeovers and minimal service downtime.
- Vacuum mixing option boosts production capacity without extensive investment.
- Applications
- Food,Sauces,Spreads,Nectar,Jams,Still drinks,Cheese,Dips,Plant-based products,Desserts,Ice cream,Dressings,Fruit preparations,Tomato products,Juice,Dairy
- End products
- Lemon herb sauce,Custard,Table sauces,Mozzarella cheese,Ricotta cheese,Vegan spreads,Piri piri basting sauce,Ice cream toppings,Barbeque sauce,Almond milk,Oat milk,Cream cheese,Marmalade,Caramel dip,Soy milk,Chocolate pudding,Fruit jams,Plant-based milk,Vinaigrette,Sweet chili sauce,Thousand island dressing,Flavored yogurt,Blue cheese,Vegan cheeses,Smooth dressing,Tomato ketchup
- Steps before
- Ingredient Preparation,Weighing,Measuring,Chopping,Blending
- Steps after
- Cooling,Filling,Packaging,Storage
- Input ingredients
- ice cream toppings,vegan spreads,ingredients with varying viscosities (up to 20,000 cp),particles up to 10 mm in diameter
- Output ingredients
- smooth dressing,chocolate pudding,thick vegan cheeses,sweet chili sauce,marmalade with particles,sauces like barbeque sauce,lemon herb sauce,piri piri basting sauce,table sauces
- Market info
- Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.
- Batch size
- 300 litres
- Viscosity handling
- up to 20,000 cp
- Shear rate
- 0 to 60,000 s-1
- Particle size control
- up to 10 mm
- Automation
- Manual operation
- Working mechanism
- Batch mixing
- Integrated steps
- Mixing,cooking,cooling
- Shear flexibility
- 0 to 60,000 s-1
- Batch vs. continuous operation
- Batch
- Automation level
- Manual operation with straightforward operator panel
- Control
- Temperature and vacuum adjustable
- CIP/SIP
- CIP compatible
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Product Variety
- Ice cream toppings,vegan spreads,sauces,marmalades
- Tank size
- 300 Litres
- Footprint
- Compact
- Control panel type
- Straightforward operator panel
- Control panel type
- Straightforward operator panel
- Integration possibilities
- Manual operation with vacuum option
- Compact footprint
- Designed without complex utility hook-up
