High shear mixer for emulsification and powder dissolving

Achieve seamless mixing and emulsification for high and low viscous products, while effortlessly dissolving powders in a streamlined batch process tailored to optimize your production.

Mixes, Emulsifies, and Dissolves Diverse Products

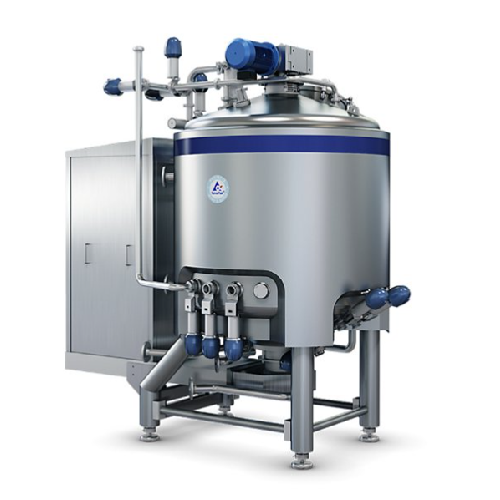

The Tetra Pak® High Shear Mixer Batch Unit is a robust solution designed for processing a wide range of food and beverage products, from dairy and plant-based items to sauces and dressings. This mixer stands out with its dynamic stator and double shaft agitator, enabling efficient mixing, emulsification, and dissolving of both high and low viscosity materials. Capable of processing 25 to 20,000 liters per hour in up to four batches per hour, it integrates seamlessly into production lines, offering flexible heating and cooling options tailored to specific product requirements. Its unique powder valve ensures reliable powder handling, preventing blockages and production halts. Available with embedded automation through Tetra Pak® PlantMaster technology, it allows for seamless process control and recipe updates, enhancing operational efficiency. Additionally, options like pressure vessels for high-temperature cooking and flash cooling systems ensure the unit meets diverse processing needs while adhering to safety standards and delivering energy-efficient operation.

Benefits

  • Enhances product consistency by ensuring thorough mixing and emulsification for various viscosities.
  • Optimizes production efficiency with customizable heating and cooling options to match specific processing needs.
  • Minimizes production interruptions with a unique powder valve preventing blockages and ensuring smooth operation.
  • Reduces labor costs with embedded automation for streamlined process control and remote support capabilities.
  • Improves energy efficiency with integrated flash cooling system for rapid and cost-effective cooling solutions.

General


Applications
Food,Sauces,Nectar,Still drinks,Cheese,Formulated dairy products,Plant-based products,Cream cheese,Soup,Ice cream,Dressings,Juice,Toppings,Beverage concentrates,Dairy
End products
Hummus,Hollandaise sauce,Caesar dressing,Tomato soup,Strawberry milkshake,Cheese dip,Fruit-flavored beverage syrup,Ice cream sundae topping,Oat milk,Almond milk,Vegan cheese spread,Soy milk,Greek yogurt,Buttermilk,Raspberry coulis,Coconut-based cheese,Mango nectar,Caramel sauce
Steps before
Ingredient preparation,Ingredient weighing,Powder handling,Pre-heating
Steps after
Cooling,Packing,Filling,Pasteurization,Homogenization
Input ingredients
cream cheese,formulated dairy products,beverage concentrates,soups,sauces,dressings,ice cream toppings,powders,viscous products
Output ingredients
emulsified products,blended mixtures,homogeneous products,processed cream cheese,processed dairy products,processed beverage concentrates,processed soups,processed sauces,processed dressings,processed ice cream toppings
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
25 to 20,000 l/h
Batch size
1 - 4 batches/hr
Product Viscosity
up to 100,000 cP
Heating Temperature
Up to 150°C
Cooling Rate
90°C to 50°C in 6 minutes
Automation
Embedded automation with Tetra Pak® PlantMaster
Heating Method
Steam injection,dimple jacket lining

Operating Characteristics


Mixing mechanism
High shear,dynamic stator
Batch vs. continuous operation
Batch
Agitation mechanism
Double shaft agitator
Heating method
Steam injection,dimple jacket
Powder handling
Powder valve system
Dosing control
Automatic / Manual
Cleaning method
CIP
Automation level
Embedded automation with Tetra Pak PlantMaster
Cooling option
Flash cooling
Pressure cooking capability
Pressure vessel for high-temperature cooking

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Viscosity handling
Up to 100,000 cP
Foaming control
Yes
Heat sensitivity
Suitable for sensitive products
Powder dissolving
Yes
Product versatility
High (wide variety of products)
Container type
Batch vessels


Pressure vessel certification
European PED directive EN97/23EC or U-stamped USA ASME standard

Custom Options


Control panel type
PLC-based
Heating method options
Steam injection,Dimple jacket lining
Dosing system
Automatic / Manual
Pressure vessel certification
European PED directive EN97/23EC / U-stamped USA ASME
Automation Integration
Tetra Pak® PlantMaster technology
