High shear granulator for uniform wet granules

Achieve uniform and homogeneous wet granules with high-speed mixing and automated control, reducing manual intervention and enhancing production line efficiency.

Mixes and Granulates for Uniform Wet Granules

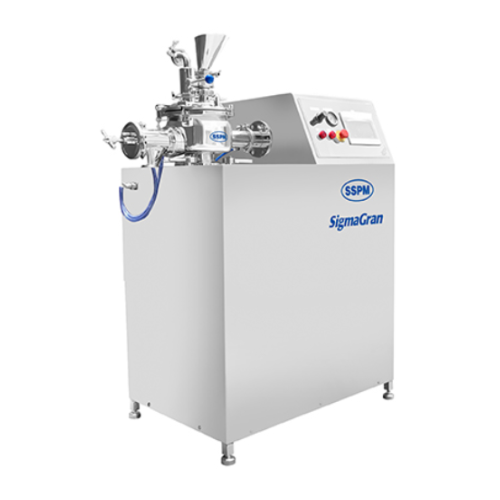

The SigmaGran® High Shear Mixer Granulator from SSPM Systems & Engineers seamlessly integrates into pharmaceutical, food, and chemical production lines to enhance mixing and granulation processes. Its robust design employs high shear forces to efficiently produce uniform and homogeneous wet granules, ensuring consistent product quality. This versatile equipment serves a wide range of applications including the production of pharmaceutical tablets, chewable vitamins, and chemical catalyst granules. With models scalable from 2.5 L to 1500 L gross volume, it accommodates various batch sizes, providing flexibility for both R&D labs and large-scale operations. Integrated automation via an advanced control system reduces manual intervention and improves operational efficiency. The system complies with 21 CFR Part 11, adheres to CGMP norms, and features options like pneumatically operated top lid, 360-degree spray ball coverage for effective cleaning, and flame-proof construction for operational safety. Customizable contact parts in SS 316/316 L provide excellent corrosion resistance, ensuring suitability for a variety of materials.

Benefits

  • Enhances product consistency and quality through uniform wet granulation.
  • Reduces manual intervention and labor costs with automated control systems.
  • Ensures easy scalability from small to large batch production.
  • Supports compliance with regulatory standards, including 21 CFR Part 11.
  • Minimizes cleaning downtime with efficient wash-in-place system.

General


Applications
Food,Chemicals,Supplements,Pharmaceutical tablets,Nutraceuticals,Pharmaceuticals
End products
Herbal extract granules,Sweetened powdered drinks,Chewable vitamins,Chemical catalyst granules,Polymer granules,Protein supplements,Effervescent tablets,Dietary fiber granules
Steps before
Dry Mixing,Material Handling,Sifting
Steps after
Conveying,Tablet Coating,Tablet Pressing,Packing
Input ingredients
dry substances,wet substances,pharmaceutical powders,food ingredients,chemical powders
Output ingredients
uniform wet granules,homogeneous wet granules
Market info

Technical Specifications


Compliance
21 CFR Part 11
Material of Contact Parts
SS 316/316 L
Construction
Flame-proof
Gaskets and Seals Material
Silicon and FDA-approved materials
Cleaning Coverage
360-degree spray ball
Air Purging Facility
Impeller and chopper
Maintenance
Lesser maintenance
Bowl Interchangeability
Up to 10 litres
Earthing and Safety Interlocks
Integrated
Scalability
From R,D to production
Control System
User-friendly
Cleaning System
Wash-in-place
Volume Range
2.5 L to 1500 L (Gross) / 2 L to 1200 L (Working)
Batch Capacity
1 kg to 600 kg

Operating Characteristics


Working Mechanism
High Shear Mixer Granulator
Integrated Steps
Dry and Wet Mixing
Automation Level
Advanced Automation and Control System
CIP/SIP
Wash-in-place system
Batch vs. Continuous Operation
Batch Operation
Cleaning Method
360-degree spray ball coverage

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Contact parts
SS 316/316 L
Seals and gaskets
FDA-approved silicon

Product type Characteristics


Industries Served
Pharma,Food,Chemicals
Wet granulation capacity
1 kg to 600 kg


FDA Materials
Silicon and other FDA-approved materials
21 CFR Part 11 Compliance
Available upon request

Physical Characteristics


Machine footprint
Compact
Construction material
SS 316/316 L
Top lid type
Pneumatically operated
Discharge method
Pneumatically operated discharge assembly
Spray coverage
360-degree
Changeable bowl size
Up to 10 litres
Earthing provisions
Provided

Custom Options


Material
SS 316/316 L
Flame-proof construction
Yes
Omega-type gaskets and seals
Silicon and other FDA-approved materials
Pneumatically operated top lid and discharge assembly
Yes
360-degree spray ball coverage
Yes
Air purging facility
Yes
Interchangeability of bowls
Feasible up to 10 litres
Earthing and safety interlocks
Integrated
