High-capacity stick pack packaging solution

Enhance your production efficiency by packaging diverse products like powders and liquids into compact stick packs, optimizing space and ensuring convenient single-serve solutions for consumers.

Efficiently Packages Liquids and Powders into Stick Packs

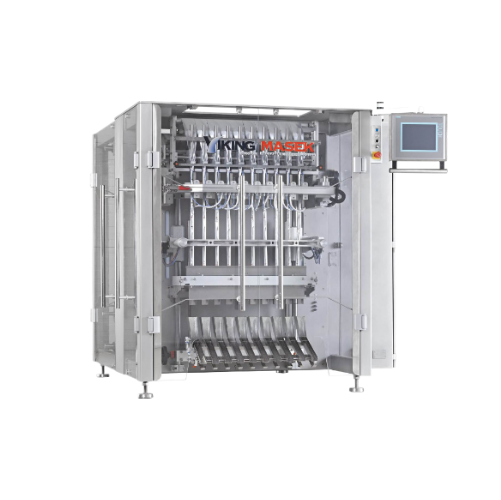

The Stick Pack ST1200 from Viking Masek is a high-capacity stick packaging machine designed to efficiently process both liquids and powders. It operates with up to 20 lanes simultaneously, making it suitable for high-speed continuous production lines across diverse industries like food, beverage, pharmaceuticals, and cannabis. This machine forms, fills, seals, and cuts stick packs, featuring customizable options like tear notches and various seal patterns. With automatic film tracking and integrated sensors, it ensures precision and reduces waste. Constructed from GMP-compliant materials, it supports hygienic applications and easy cleaning. The ST1200 can be seamlessly integrated into existing production lines, enhancing automation with PLC controls and real-time monitoring. Optional features include static elimination, embossing, and versatile filling systems tailored to specific product types.

Benefits

  • Increases production capacity with multi-lane processing, accommodating up to 20 lanes simultaneously.
  • Enhances precision and minimizes waste through automatic film tracking and integrated quality controls.
  • Streamlines changeovers and reduces downtime with easy-to-use, customized options.
  • Ensures product safety and regulatory compliance with GMP construction materials.
  • Integrates seamlessly into existing systems with advanced PLC controls and real-time monitoring capabilities.

General


Applications
Food,Medical devices,Snacks,Non-food products,Beverage,Coffee,Supplies,Medical,Powders,Cannabis,Health,Liquids
End products
Cannabis oil dosages,Powdered milk portions,Powdered nutritional supplements,Instant coffee packets,Tea powder sticks,Medical swab sticks,Single-serving honey packs,Energy gel sachets,Sugar sticks,Cosmetic cream samples,Pain relief gel packs,Spice mix sachets,Protein powder sachets,Powdered drink mix,Instant soup packets,Electrolytes drink mix
Steps before
Material Mixing,Material Feeding,Film Loading
Steps after
Cartoning,Sealing,Labelling,Inspection,Packing
Input ingredients
powders,dense materials,fine materials,loose materials,particulate materials,liquids,gels
Output ingredients
stickpack bags,pour spouts,tear notches,easy-open systems
Market info
Viking Masek is known for manufacturing innovative packaging machinery. They specialize in automated packaging solutions, including vertical and horizontal form-fill-seal machines, and are reputed for quality, flexibility, and custom-engineered solutions for various industries.

Technical Specifications


Speed
Up to 50 CPM
Lanes
Up to 20 lanes
Bag Size Minimum
17 mm x 40 mm (0.67" x 1.57")
Bag Size Maximum
100 mm x 200 mm (3.94" x 7.88")
Roll Diameter Maximum
450 mm (17.75")
Roll Width Maximum
1200 mm (47.24")
Weight
1,600 kg (3,525 lbs)
Air Pressure
6 bar (15 CFM at 90 PSI)
Power Supply
10 kVA (480 V,three phase,60 Hz,20 AMPS)
Automation
Siemens or Allen Bradley control system
Construction
GMP construction

Operating Characteristics


Automation level
PLC / Siemens or Allen Bradley control system
Batch vs. continuous operation
Continuous Motion
Changeover time
Easy change-over parts
Cleaning method
GMP construction
Discharge method
Individual discharge chutes
Film tracking
Automatic film tracking
Packaging speed
Speeds up to 50 CPM

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Bag size
Min
Max
100 mm x 200 mm
Machine weight
1,600 kg (3,525 lbs)
Maximum Roll Diameter
450 mm (17.75")
Maximum Roll Width
1200 mm (47.24")
Discharge method
Individual discharge chutes
Control panel type
Siemens or Allen Bradley control system

Custom Options


Control panel type
Siemens or Allen Bradley control system
Integration possibilities
Fully automated cartoning solutions
Construction material
Stainless steel,Pharma construction (IQ/OQ)
Bag seal patterns and shapes
Various seal patterns and shapes
Cut type
Straight,Zigzag,Round
Easy open features
Tear notch,Microperforation
Printing options
Hot stamp,inkjet,or thermal transfer printer
Seal type
Offset back seal
Discharge method
Individual discharge chutes
