Fluid bed dryer for wet granulation in pharmaceutical industry

Streamline your production with fast, uniform drying and precise granulation, enhancing efficiency and safety in your processing line while meeting stringent compliance standards.

Processes and Dries Granules and Powders

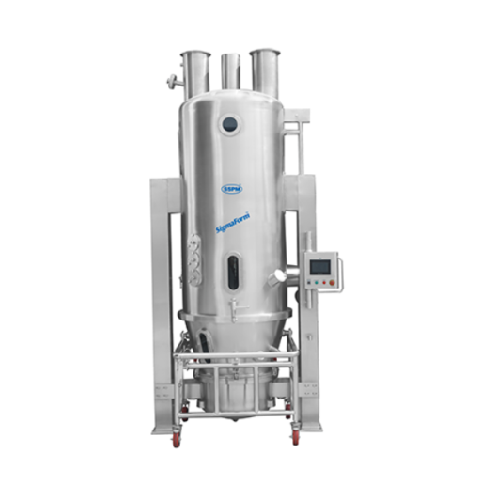

The SigmaForm™ from SSPM Systems & Engineers is a versatile fluid bed dryer and granulator designed for seamless integration into pharmaceutical, food, and chemical production lines. It operates through fluidization, effectively drying and granulating materials like effervescent tablets, seasoning blends, and detergent powders with controlled precision. Its scalability from R&D to full production, combined with a unique top/bottom spray capability, supports a range of batch operations. Designed with a 12-bar shock-resistant option and compliance with 21 CFR Part 11, it ensures both safety and regulatory adherence. The system includes advanced automation features, such as a user-friendly control interface and a robust air handling unit equipped with HEPA filters for maintaining product integrity. The interchangeability of containers up to 30 kg enhances flexibility, while its energy-efficient design minimizes utility consumption. For quick cleaning, optional CIP systems are available, ensuring minimal downtime. Configurable to specific operational requirements, the SigmaForm™ provides the necessary engineering support for customized solutions.

Benefits

  • Enhances production efficiency with seamless batch processing capabilities.
  • Ensures compliance with stringent industry regulations, including GMP and 21 CFR Part 11.
  • Offers flexible scalability, accommodating R&D to full-scale production needs.
  • Saves energy by minimizing utility consumption through optimized fluidization technology.
  • Quick and easy cleaning reduces downtime, improving operational productivity.

General


Applications
Food,Chemicals,Pharmaceutical tablets,Pharmaceutical powder,Pharmaceuticals
End products
Detergent powders,Probiotic granules,Antibiotic granules,Fertilizer granules,Vitamin c tablets,Nutraceutical capsules,Protein powder supplements,Effervescent tablets,Seasoning blends,Instant beverage powders
Steps before
Mixing,Blending,Formulation
Steps after
Packaging,Quality Control,Coating
Input ingredients
wet mass,bulk powder
Output ingredients
granulated material,dried product
Market info

Technical Specifications


Suitable For Top / Bottom Spray
Yes
Shock-Resistant Design
12-bar
Filter Type
Pre/micro/HEPA
Exhaust Type
Spark Proof blower
Exhaust Polish Filter
Included
Pneumatic Cylinder
Three-level
Inflatable Seal
Three-level
Container Interchangeability
Up to 30 kg
Scalability
R,D to Production
Earthing
Proper earthing
Safety Interlocks
Included
Control System
User-friendly
Compliance
21 CFR Part 11
Container Volume
6 L to 1800 L
Optimum Batch Size
2 KG to 600 KG (MAX)
Capacity
0.5 BD1 KG (MIN) to 300 KG (MIN)

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch
Cleaning method
CIP / Manual

Physical Characteristics


Machine Footprint
SigmaForm™ tailored design
Container Volume
6 L to 1800 L
Optimum Batch Size
2 KG (MAX) to 600 KG (MAX)
Scalability
R,D to production
Interchangeability of Containers
Up to 30 kg

Custom Options


Control panel type
Advanced automation and control system
Compliance,Certifications
21 CFR Part 11 compliance
Interchangeability
Containers up to 30 kg
Safety Features
12-bar shock-resistant design
Scalability
From R,D to production
Earthing and Safety Interlocks
Equipped with proper earthing and safety interlocks
Customization upon Request
Specific designs such as 12-bar shock-resistant
