Filter dryer with containment system for hazardous materials
Ensure operator safety and product integrity during hazardous material processing with a filter dryer designed for seamless operations and precise containment.
Filters, Dries, and Contains Hazardous Materials

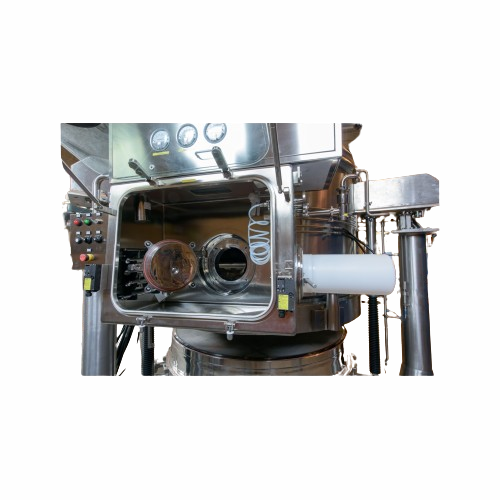

The COMBER Pressofiltro® Series PF 50 – PF 2000 is an engineered solution from HEINKEL Group designed to meet rigorous industrial requirements for filtration and drying. Unique in its integration of an agitated Nutsche filter with a containment system, it addresses the high-stakes challenge of handling hazardous materials safely. Utilizing containment glove boxes, it ensures contamination-free product handling, crucial for maintaining purity in pharmaceutical ingredients and specialty chemicals.
The system supports operations such as batch or continuous processing for a variety of materials, including slurries and cakes. It features variable design capacities from 0.13 to 2 m² filter area and slurry volumes ranging from 55 to 2,000 liters. Engineered to adhere to cGMP and FDA guidelines, it employs HEPA-filtered air handling to maintain containment levels down to 10 ng/m³ TWA.
Constructed with high-grade materials like stainless steel and Hastelloy, it offers exceptional resistance to corrosive substances. The system’s automated features include a PLC-controlled interface, enabling seamless integration with existing production lines. Enhanced by options like dust filters, CIP systems, and vacuum units, the COMBER Pressofiltro® ensures both efficiency and safety in demanding applications.
Benefits
- Ensures operator safety and product integrity with advanced containment systems.
- Enhances operational efficiency by integrating filtration and drying in one unit.
- Supports stringent regulatory compliance with cGMP and FDA standards.
- Minimizes contamination risk with HEPA-filtered air handling and glove box systems.
- Offers robust material construction to withstand aggressive chemical environments.
- Applications
- Chemicals,Surface coating,Fine chemicals,Metal recycling,Food products,Pharmaceuticals
- End products
- Pigments and dyes,Surface coating resins,Active pharmaceutical ingredients,Specialty chemicals,Nutraceuticals,Recyclable metal powders,Intermediates for drug manufacturing,Flavorings and extracts
- Steps before
- Filtration,Crystallization,Slurry Preparation
- Steps after
- Product Discharge,Packing,Sampling
- Input ingredients
- slurry,hazardous materials
- Output ingredients
- filtered product,heel removal,product discharge,contamination-free product
- Market info
- Heinkel (Comber) is renowned for manufacturing industrial engineered-to-order equipment, specializing in filtration, centrifugal, and mixing solutions. They are recognized for their precision engineering, quality, and ability to tailor solutions for pharmaceutical and chemical industries.
- Filter area
- 0.13 to 2 m²
- Slurry volume
- 55 – 2,000 liters
- Design temperature
- -10 to 150°C (14 to 302°F)
- Design pressure
- -1 to +4 barg (FV to 60 psig)
- Containment level
- down to 10 ng/m³ TWA
- Heated areas
- All product wetted components
- Control type
- PLC,HMI with touch screen,MCC
- Material
- Stainless steels,Nickel based alloys,Titanium
- Containment chambers
- Passive,active,single,two chamber,multiple chamber
- Air handling system
- HEPA inlet and exhaust filters
- Sealing materials
- PTFE gaskets,O-Rings in FFKM or FEP encapsulated
- Accessories
- Dust filter with automatic back cleaning,sampling valve,CIP system,etc.
- Batch vs. continuous operation
- Batch
- Containment level
- Down to 10 ng/m³ TWA
- Isolation features
- Single,two chamber,multiple chamber designs
- Sampling and discharge operations
- In single unit
- Sampling method
- Contamination free
- Product isolation method
- HEPA filters,glove boxes
- Corrosive resistance (e.g. acids)
- Yes
- Cleanability
- Compliance with cGMP and FDA guidelines
- Wetted Materials
- Stainless steels,Nickel based alloys such as Hastelloy C 22 or Alloy 59,Titanium
- Sealing materials
- PTFE gaskets,O-Rings in FFKM or FEP encapsulated
- Filter area
- 0.13 to 2 m²
- Slurry volume
- 55 – 2,000 liters
- Design temperature
- -10 to 150°C (14 to 302°F)
- Design pressure
- -1 to +4 barg (FV to 60 psig)
- Containment system design
- Passive,active,single,two,multiple chamber
- Glove box type
- Yes
- Isolation unit air handling
- With HEPA filters
