Filler and capper for bottles and jars

Optimize your production with a compact filling and capping solution that delivers fast, accurate results, reducing waste and increasing efficiency for a seamless transition between different bottle sizes and product types.

Fills and Caps Liquid Products Efficiently

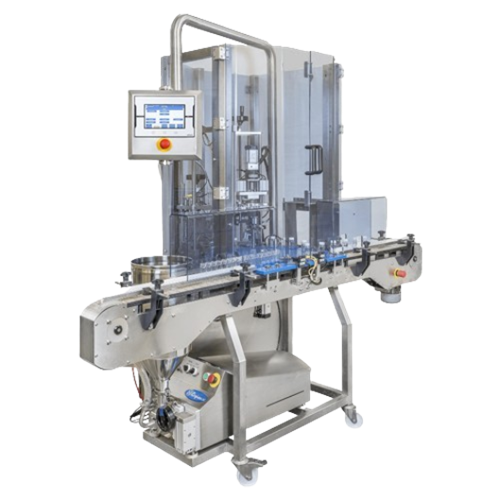

The Response Monobloc 250 Filler & Capper from Adelphi Manufacturing is a versatile solution for packaging liquid products efficiently across industries such as cosmetics, pharmaceuticals, and food. This compact machine fills and caps up to 35 containers per minute, with volumes ranging from 3ml to 250ml, offering precision with an accuracy of ±0.25%. Its quick-strip design minimizes downtime, while the intuitive HMI touch screen ensures ease of operation. Constructed from 316L stainless steel and PTFE, it meets both pharma and food quality compliance. Designed to integrate seamlessly into existing production lines, it can incorporate in-feed tables, bottle blowers, automatic cap placement, and labeling systems to complete turnkey packaging lines. The machine’s bench-top design allows for easy changeover between different container sizes, reducing operational bottlenecks. Additionally, its construction ensures zero EU import duty, making it an economically viable option for manufacturers globally.

Benefits

  • Improves operational efficiency with fast filling and capping of up to 35 containers per minute.
  • Minimizes product waste through exceptional accuracy of ±0.25%.
  • Reduces downtime with a quick-strip design for easy maintenance and cleaning.
  • Enhances productivity with straightforward HMI touch screen controls for seamless operation.
  • Offers space-saving installation with its compact footprint and versatile integration options.

General


Applications
Personal care,Food,Veterinary products,Agrochemical products,E-liquid,Beverage,Household products,Oil,Cosmetics,Chemical products,Lube oil,Pharmaceutical products
End products
Car engine oil,Pesticide,Cough syrup,E-cigarette liquid,Fertilizer,Detergent,Shampoo,Face cream,Juice,Pet medicine,Motor oil,Salad dressing
Steps before
Purification,Emulsification,In-feed table loading
Steps after
Packing,Labeling,Collection table processing
Input ingredients
bottles,jars,screw-top vials,containers
Output ingredients
filled bottles,filled jars,filled screw-top vials,capped containers,packaged containers
Market info

Technical Specifications


Speed
Up to 35 containers per minute
Fill Volume
3 ml to 250 ml
Accuracy
±0.25%
Material
316L stainless steel / PTFE
Container Type
Bottles,jars,screw-top vials
Control System
Intuitive HMI touch screen

Operating Characteristics


Filling and capping speed
Up to 35 containers per minute
Fill volume range
3ml to 250ml
Accuracy
±0.25%
Automation level
Automatic
Changeover time
Quick and easy
Integration capabilities
Can incorporate in-feed table,bottle blower,labeller,etc.
Space efficiency
Compact footprint

Material Compatibility


Biological compatibility
Pharma and food quality compliant
Corrosive resistance (e.g. acids)
316L stainless steel
Cleanability
Easy to clean

Product type Characteristics


Container type
Bottles,jars,screw-top vials


FDA materials
316L stainless steel / PTFE compliance
Zero EU Import Duty
Yes

Physical Characteristics


Machine Footprint
Compact,space-efficient
Control Panel Type
Intuitive HMI touch screen
Discharge Method
Automatic cap placement

Custom Options


Control panel type
HMI touch screen
Integration possibilities
Turnkey packaging line
