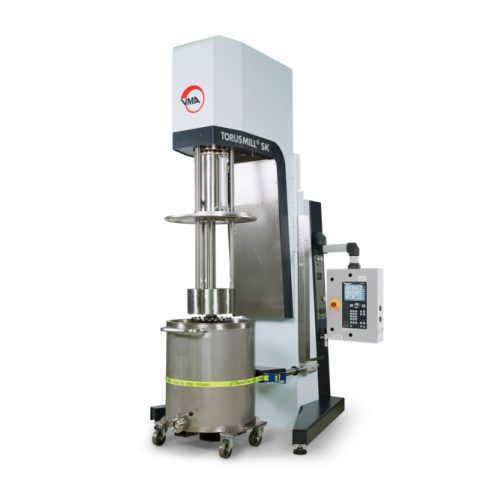

Explosion-proof immersion mill for paints and varnishes

Optimize high-performance coatings production with an explosion-proof immersion mill that ensures exceptional grinding results and safety in hazardous environments, ideal for processing low to medium viscosity products with precision and consistency.

Ensures Precise Dispersion and Mixing in Explosive Conditions

The DISPERMAT® SC4-EX, from VMA-GETZMANN, is an explosion-proof dissolver tailored for industries requiring robust dispersion solutions in potentially hazardous environments. This equipment excels in handling medium to large batches of high-viscosity products, such as automotive paints and adhesives. Its unique design incorporates a powerful 15–22 kW motor, facilitating efficient dispersion through a patented mixing technology. The dissolver supports a wide range of applications, including agrochemicals and pharmaceuticals, ensuring precise consistency across various formulations.

Operating with a full suite of automation features, the DISPERMAT® SC4-EX integrates seamlessly into your production line with PLC control for enhanced monitoring and process control. It achieves significant energy efficiency through optimized motor control, reducing energy consumption during long operations. Constructed with high-grade materials, this dissolver is available in corrosion-resistant options to suit your specific chemical requirements. For ease of maintenance, it offers a straightforward setup with quick access to components, minimizing downtime and ensuring prolonged operational life. Further customization options are available, including tailored rotor speeds and vessel configurations to meet unique processing needs.

Benefits

  • Enhances safety with ATEX-certified explosion-proof design.
  • Increases production efficiency by optimizing energy use during long operations.
  • Ensures product consistency across batches with precise dispersion capabilities.
  • Minimizes maintenance downtime through easy access to components.
  • Offers flexibility with customizable rotor speeds and vessel configurations.

General


Applications
Sealants,Nano-applications,Microbiology,Buildings and colors,Cosmetics,Automotive paints,Spice pastes,Printing inks,Liquid crystal displays,Carbon materials,Construction chemistry,Anode and cathode materials,Batteries,Electronics,Food supplements,Separator films,Ceramics,Agrochemicals,Technical ceramics,Food products,Polishing agents,Pharmaceuticals,Food additives,Coatings,Conductive additives and battery compounds,Consumer ceramics,Adhesives,Body care
End products
Automotive spark plugs,Architectural exterior paints,Lithium-ion battery electrodes,Activated charcoal,Circuit board coatings,Led displays,Pesticides,Vitamin c supplements,Fine china,Microporous separator sheets,Chili pastes,Urethane adhesives,Conductive graphene additives,Ceramic floor tiles,Insecticides,Fish oil supplements,Electrochemical electrodes,Emulsifiers,Enzyme cultures,Concrete additives,Architectural interior paints,Polymer separator films,Pharmaceutical active ingredients,Automotive base coats,Red food dye,Curry pastes,Moisturizing lotions,Automotive clear coats,Carbon black additives,Waterproof coatings,Oled screens,Silicone sealants,Inkjet printer inks,Lithium-ion anodes,Carbon nanotubes,Anti-aging creams,Polishing slurries
Steps before
Mixing,Emulsification,Pre-dispersion,Slurry Preparation
Steps after
Packing,Coating,Quality Control,Product Treatment
Input ingredients
premixed product,slurries,raw materials,color pigments,additives,binders,conductive additives,nanotubes
Output ingredients
homogeneous distribution,dispersion,fine milling,uniform coating,pigment dispersion,nano-scale products,high strength values,stabilized emulsions
Market info
VMA-Getzmann is renowned for manufacturing high-quality dispersing, mixing, and milling equipment, particularly for the chemical, coatings, and inks industries, specializing in engineered-to-order solutions that emphasize innovation, reliability, and technical excellence.

Technical Specifications


Power
5.5 - 55 kW
Product Capacity
30 – 2000 litres
Control Type
CN / C / SC / PLC
Speed
100 - 750 rpm
Torque
436 - 657 Nm
Container Capacity
200 - 1250 litres
Height Adjustment
Electric
Temperature Class
T3
Explosion Protection
II 2G Ex h IIB T3 Gb
Dissolver Disc
Mounted below milling basket
Cooling System
Double walled,spirally guided cooling liquid
Automation
PLC-controlled
Material Used for Milling System
ZrO2 or SiSiC
Data Recording
Graphical indication
Repeatability
Constant speed or power input
Height Measurement
Adjustable for container sizes
USB Connectivity
Yes (Wi-Fi,LAN expected in 2022)
Software
WINDISP© 7
Shaft Adjustment
Easy height adjustment
Container Clamping Range
Ø 60 ‒ 130 cm
Frequency
50–60 Hz
Weight
2800 kg

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
PLC / Manual
Cleaning method
CIP / Manual
Energy efficiency
Low kW consumption per liter processed
Height adjustment
Electric
Work Safety
TÜV Certified Safety
Nano Technology
Fine grinding down to nano scale

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container Shape Adjustability
Round / Square / Custom


ATEX certification
II 2G Ex h IIB T3 Gb
Work safe directive
2006/42/EC

Physical Characteristics


Machine footprint
220 x 420 x 260 cm
Basket size
200 - 1250 litres
Tank size
30 - 600 litres

Custom Options


Control panel type
PLC
Height adjustment
Electric
Speed adjustment
Infinitely variable
Optional features
LED lighting,temperature sensor,Liquiphant level switch
Process control
C technology,DISPERSAFE®
Connectivity
USB (Wi-Fi,LAN expected in 2022)
Cover customization
Product feed system,various filling funnels
