Entry-level texture analysis system for Qc applications

Perfect for quality control labs, this portable system streamlines texture and material testing, ensuring precise consistency and repeatability in your product assessments.

Measures and Analyzes Texture Consistency

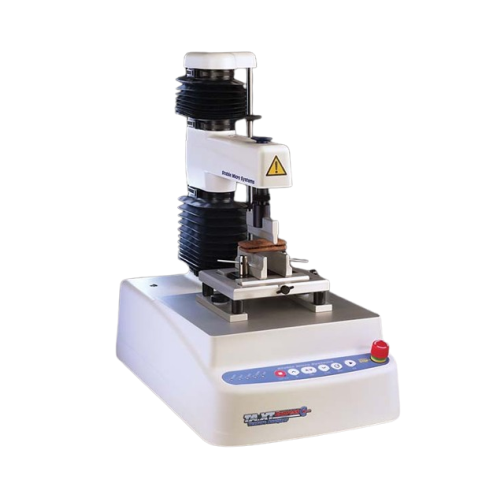

The TA.XTExpressC Texture Analyser from Stable Micro Systems is a versatile instrument engineered for precise texture measurement across diverse industries. This compact, portable analyser is ideal for QC and R&D applications, facilitating the evaluation of products such as yogurt, cheddar cheese, protein bars, and industrial adhesives. Equipped with a load capacity of up to 10 kg and a speed range of 0.01 to 10 mm/s, it efficiently handles testing and analysis of solids, powders, granules, and slurries. The intuitive Exponent Connect Lite software ensures straightforward data analysis, allowing new operators to quickly adapt. Designed for bench-top or manual use, it can operate independently or integrate into a broader testing setup, providing reliable performance with minimal maintenance. The TA.XTExpressC is indispensable for manufacturers aiming to optimize product consistency and consumer appeal.

Benefits

  • Enhances product consistency and quality control with precise texture analysis.
  • Saves time with rapid setup and easy data interpretation facilitated by Exponent Connect Lite software.
  • Increases operational efficiency with portable, bench-top design for flexible testing locations.
  • Versatile application across multiple industries, supporting diverse product testing needs.
  • Reduces training time and operational complexity for new users.

General


Applications
Hair products,Medical devices,Gels,Bakery,Granules,Cosmetics,Pharmaceutical packaging,Fish,Dairy,Food,Polymers,Skincare,Soft materials,Paper and cardboard,Films,Food packaging,Electronics,Animal feed,Pasta,Dental,Powder,Rice,Hair,Petfood,Personal care products,Meat,Leather,Cereals,Pharmaceutical,Adhesives,Vegetables,Medical,Snack products,Textiles,Fruit
End products
Pet bottles,Dog kibble,Dental amalgam,Industrial adhesives,Cardboard boxes,Electronic circuits,Protein bars,Salmon fillets,Face cream,Cheddar cheese,Yogurt,Cooked rice,Strawberry jam,Tortilla chips,Muesli base flakes,Hair gel,Biofilms,Industrial duct tapes,Spinach puree,Lipstick
Steps before
Sample Preparation,Product Sorting
Steps after
Data Analysis,Quality Control Review,Product Packaging,Further Testing
Input ingredients
bakery products,cereals,dairy products,fruit,vegetables,fish,meat,pasta,rice,snacks,powders,granules,capsules,tubes,sachets,syringes,cream,waxes,adhesives,paints,polymers,cosmetics,skincare,personal care products
Output ingredients
textural quality data,source variations,batch variations,consumer acceptability assessments
Market info
Stable Micro Systems is renowned for its expertise in manufacturing texture analysis equipment, providing precision instruments and solutions for food, cosmetics, pharmaceuticals, and other industries, enhancing product development through detailed, reliable rheological and texture measurement.

Technical Specifications


Force capacity
10kg.f (100N)
Force resolution
0.1g
Loadcells
0.5,5,10kg.f
Speed range
0.01 – 10mm/s
Maximum aperture
210mm/370mm
Distance resolution
0.0025mm
Data acquisition rate
500pps

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch
Changeover time
Quick
CIP/SIP
Manual
Energy efficiency
Low Power Consumption
Cleaning method
Manual
Run from any device capability
Touchscreen / PC / Mobile / Tablet

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Testing materials
Foods,cosmetics,soft materials
Use case
Quality control,production line

Physical Characteristics


Footprint
Compact
Portability
Yes
Control panel type
Touchscreen / Mobile / PC
Maximum aperture
210mm/370mm
Discharge method
Data transfer to PC

Custom Options


Control Panel Type
Touchscreen Interface
Integration Possibilities
Desktop/Laptop PC and Mobile/Tablet Browser Interface
Measurement Options
Additional devices for extra parameters
Software Upgrade Options
Exponent Connect software
Automation Options
Automated Linear Indexing System
