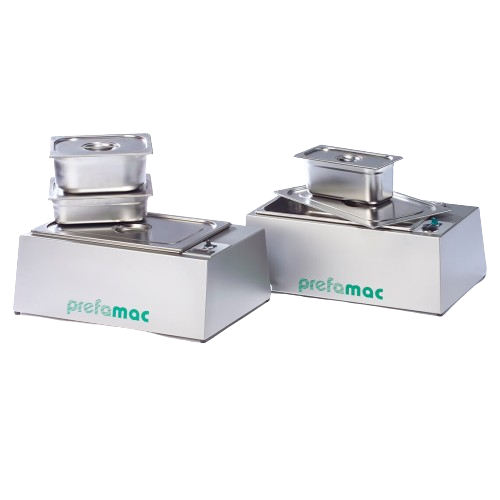

Electric melting tray for small-scale chocolate applications

Effortlessly melt and prepare chocolate with precision and efficiency, ideal for those requiring flexible, small-scale production and on-site demonstrations.

Melts and Heats Chocolate for Diverse Applications

The GASTRONORM Melting Tray from Prefamac Chocolate Machines offers a versatile solution for small-scale chocolate melting, essential for chocolatiers and event caterers. Distinctively electrified, it eliminates the need for water, ensuring purity and preventing chocolate waste. This equipment simplifies operations with bench-top flexibility and manual controls, perfect for producing ganache, truffles, bars, and decorative coatings. With available inner containers of varied capacities—20 L, 13.5 L, 2 x 9 L, and more—aside from being standard with a mechanical thermostat, a digital version is optional for precise heat management. Built with full pearled stainless steel, it ensures durability and allows easy cleaning, enhancing workflow efficiency. Operating at single-phase power options of 220-240V 50Hz or 110V 60Hz, it adapts seamlessly to international standards, making it indispensable for trade shows and fair demonstrations, ultimately supporting customizable production requirements.

Benefits

  • Ensures contamination-free chocolate melting with an electrically heated design, eliminating water use.
  • Facilitates quick production adjustments with interchangeable container sizes.
  • Enhances temperature precision and reduces monitoring time with optional digital thermostat.
  • Simplifies post-event cleanup with easy-to-clean stainless steel construction.
  • Adapts to varied power settings, ensuring seamless integration across global operations.

General


Applications
Confectionery,Sweets,Pastry,Baking,Chocolate,Trade fair demonstrations,Event catering
End products
Chocolate truffles,Fair trade chocolate samples,Candy melts,Event dessert displays,Melted chocolate for pastries,Pastry toppings,Sweet glazes,Chocolate coating,Chocolate bars,Confectionery fillings,Chocolate fondue,Chocolate ganache,Chocolate decorations
Steps before
Ingredient preparation,Chocolate chunk processing,Container setup
Steps after
Cooling,Chocolate tempering,Pouring into moulds or containers,Packaging
Input ingredients
chocolate
Output ingredients
melted chocolate
Market info
Prefamac is known for manufacturing high-quality chocolate processing equipment, including tempering, enrobing, and cooling machines. The company is recognized for innovative and custom-engineered solutions tailored to the confectionery industry, emphasizing precision, efficiency, and reliability.

Technical Specifications


Heating Method
Electric
Thermostat Type
Mechanical/Digital
Voltage
220-240V 50Hz/110-120V 60Hz
Dimensions
Height 290 mm,Length 650 mm,Width 440 mm
Weight
19 kg
Container Capacity
20 L,13.5 L,2 x 9 L,2 x 6 L,3 x 6.5 L
Construction Material
Pearled Stainless Steel
Number of Phases
Single-phase

Operating Characteristics


Working mechanism
Electric heating
Batch vs. continuous operation
Batch
Cleaning method
Manual
Container flexibility
Different inner containers available
Automation level
Manual operation

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
650 mm x 440 mm x 290 mm
Tank shape
Rectangular
Capacity
Multiple options
Material
Pearled stainless steel
Weight
19 kg
Container type
Removable inner containers
Electricity requirements
Single-phase 220-240V 50Hz or 110V 60Hz

Custom Options


Container size options
20 L,13.5 L,2 x 9 L,2 x 6 L,3 x 6.5 L
Thermostat type
Mechanical / Digital
Electricity voltage
220-240V 50Hz / 110-120V 60Hz
Additional trays
Yes
Additional covers
Yes
Heating system
Electric heating
Removable inner containers
Available
