Dust filter for loss-in-weight feeder refill

Optimize your feeder operations by effectively filtering displaced air and minimizing ingredient waste, ensuring process cleanliness and compliance with regulatory standards.

Filters and Cleans Displaced Air in Feeder Systems

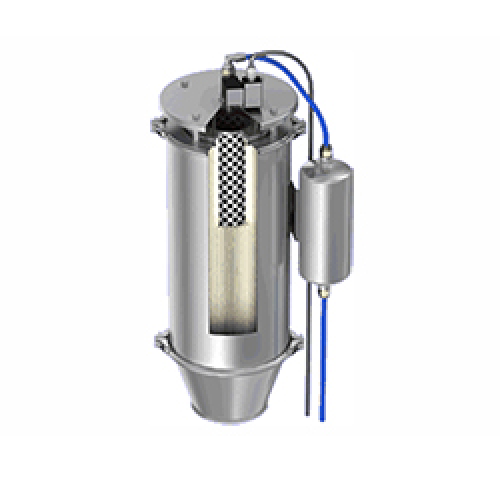

The JetFilter from SPS | Solids Process Solutions is a specialized dust and air filtration unit, seamlessly integrating with feeder systems to maintain air purity during loss-in-weight feeder refills. What sets this equipment apart is its automatic pulse cleaning system using compressed air, which efficiently removes trapped dust, reducing ingredient waste and ensuring compliance with FDA, ATEX, and GMP directives. Designed for a wide range of industries, including aquafeed, pharma, and plastics, it supports the production of items such as fish pellets and pharmaceutical capsules. With a filtration surface area ranging from 0.3 m² to 3.0 m², the JetFilter is constructed with a durable stainless steel casing and a polyester fleece filter cartridge, optimizing performance and longevity under continuous operation. Its integration into existing production lines is straightforward, providing an essential solution for maintaining clean air, thus safeguarding both equipment and product quality.

Benefits

  • Minimizes ingredient waste with automatic dust removal, enhancing material efficiency.
  • Ensures compliance with safety regulations, including FDA, ATEX, and GMP.
  • Reduces maintenance requirements with self-cleaning filter technology.
  • Enhances air quality during feeder operations, protecting both equipment and product integrity.
  • Easy integration into existing feeder systems, optimizing operational workflow.

General


Applications
Chemicals,Food,Feed,Recycling,Fine chemicals,Nutrition,Detergents,Compounding,Pharma,Plastics,Minerals,Masterbatch,Aquafeed,Dairy,Petfood
End products
Detergent powders,Pharmaceutical capsules,Masterbatch pellets,Pet food kibble,Mineral powders,Extruded cheese sticks,Fine chemical reagents,Dairy protein powders,Fish pellets,Food packaging films,Chemical additives,Nutritional supplement tablets,Injection moldable plastic granules,Recycled plastic flakes
Steps before
Dosing,Extrusion
Steps after
Inspection
Input ingredients
Output ingredients
Market info

Technical Specifications


Filter Material
Polyester fleece
Compliance
FDA,ATEX,GMP
Filter Surface Area
0.3 m² – 1.5 m² – 3.0 m²
Cleaning Method
Pulses of compressed air
Construction Material
Stainless steel casing
Dust Recovery
Automatic cleaning

Operating Characteristics


Working mechanism
Filtering of displaced air during feeder refill
Integrated dust cleaning
Automatic pulse of compressed air
Batch vs. continuous operation
Inline Continuous
Dust return feature
Dust falls back into the feeder
Filter cleaning method
Pulse jet cleaning

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel casing


FDA compliance
Yes
FDA materials
Yes
ATEX certification
Yes
GMP Compliance
Yes

Physical Characteristics


Filter surface area
0.3 m² – 1.5 m² – 3.0 m²
Filter material
Polyester fleece
Casing material
Stainless steel
Cleaning method
Pulses of compressed air

Custom Options


Material type
Stainless steel
Filter material type
Polyester fleece
Filter surface area
0.3 m² – 1.5 m² – 3.0 m²
