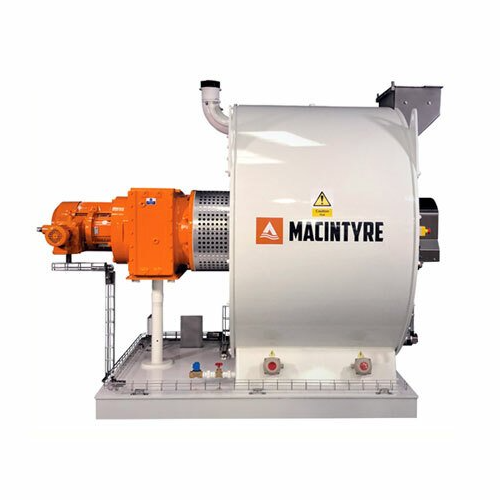

Duplex refiner/conche for chocolate production

Effortlessly transform cocoa, sugar, and other ingredients into smooth, finely refined chocolate masses with precise control over particle size, acidity, and moisture levels, ensuring consistent quality in every batch.

Grinds and Conches Chocolate Mixtures Efficiently

The Next Generation Duplex Refiner/Conche from Hamburg Dresdner Maschinenfabriken is engineered to transform and enhance chocolate production processes. It uniquely combines the functions of grinding, mixing, refining, and conching in a single compact machine. Ideal for chocolates, compounds, coatings, and truffles, it supports production of diverse end-products like dark chocolate bars, hazelnut praline fillings, and caramel-filled chocolates.

Utilizing an innovative design, it features a double grinding bar mechanism with pressure-adjustable capabilities, ideal for maintaining consistent quality. The equipment handles batch operations efficiently, aided by an automatic conching control and temperature regulation system. With models like the RC3000D and RC5000D, you can expect medium-scale, continuous operations with low energy consumption due to an energy-efficient motor system.

Available in stainless steel with a hygienic closed design, it ensures durability and easy cleaning. Its compact size allows seamless integration into existing production lines, and the advanced PLC control system, compatible with Siemens and Allen Bradley interfaces, facilitates intuitive operation and monitoring. Additional options such as shear attachments and anti-vibration components allow further customization to meet specific production needs.

Benefits

  • Enhances product quality by ensuring consistent texture and flavor through precise pressure adjustments.
  • Increases production efficiency by combining multiple processes in a single machine.
  • Reduces operational costs with low-maintenance design and energy-efficient motors.
  • Offers flexibility in product outputs, accommodating diverse chocolate types and fillings.
  • Simplifies integration with existing systems, aided by compact and hygienic design.

General


Applications
Pralines,Confectionery products,Compounds,Chocolates,Coatings,Truffles,Fillings
End products
Ganache for confections,White chocolate pralines,Fruit-infused chocolate bars,Flavored compound pastes,Almond compound coatings,Hazelnut praline fillings,Dark chocolate bars,Cream cheese fillings for chocolate,Chocolate shell coatings,Caramel-filled chocolates,Nut-flavored truffles,Milk chocolate bars,Chocolate truffle centers
Steps before
Cocoa liquor milling,Sugar milling,Loading powders,Loading liquid materials
Steps after
Cooling,Homogenization,Packing,Coating
Input ingredients
cocoa liquor,sugar,liquid materials,powders
Output ingredients
chocolate,compounds,coatings,pralines,truffles,fillings
Market info
Macintyre Probat is known for manufacturing specialized industrial machinery, particularly in the cocoa and chocolate processing industry, offering engineered-to-order solutions with a reputation for innovation and reliability in their equipment designs.

Technical Specifications


Machine Capacity
3000 kg,5000 kg
Main Drive Motor Power
55 kW,75 kW
Power Assisted Motor Power
0.5 - 5 kW
Electric Immersion Heating
2 - 4 kW
Dimensions (LxWxH)
3400 x 1700 x 3213 mm,3420 x 1800 x 3346 mm
Net Weight
9200 kg,13500 kg
Automation
PLC-controlled
Operator Interface
10" Color Touch Screen
Temperature Control
PT100 probe,4-20 mA
Cooling Medium
Chilled water
Material Loading
Through machine hopper
Infeed Pipe Diameter
DN50 flanges

Operating Characteristics


Working Mechanism
Double grinding bar support wheel mechanism
Integrated Steps
Cocoa liquor mill,Sugar mill,Mixer,Refiner,Conche
Batch vs. Continuous Operation
Batch
Automation Level
Automatic conching procedure control,PLC-controlled
Cleaning Method
Manual
Temperature Control
Automatic temperature control system

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
2182 mm (L) x 703 mm (W) x 1321 mm (H) for RC3000D
Machine footprint
2182 mm (L) x 1033 mm (W) x 1643 mm (H) for RC5000D
Feed/discharge method
Loading of powders through machine hopper
Feed/discharge method
Two infeed pipes for liquid materials,DN50 flanges
Shape
Compact and hygienically closed design

Custom Options


Control System
Siemens (Schneider,Allen Bradley,Rockwell,Mitsubishi)
Operator Interface
10" color touch screen
Automatic Conching Procedure Control
Yes
Pressure and Temperature Control
PLC
Recipe Programming
Multiple with multi-stage capability
Optional Extras
Shear Attachment,Anti-Vibration Strip
Remote Service Capability
M Guard fitted
