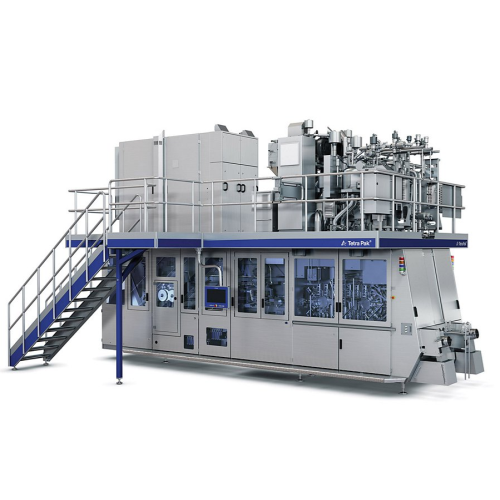

Dual-line filler for tetra top packages

Maximize your production flexibility with a high-speed, dual-line filling solution that supports diverse liquid products, ensuring extended shelf life and seamless integration into your existing production processes.

Fills and Seals High Acid and Ambient Products

The Tetra Pak TT/3 UHH is a dual-line filling machine tailored for high acid and ambient products. Its exceptional ability lies in its flexibility to handle diverse liquid products, from tomato juice and plant-based milks to whey protein powder and probiotic yogurt drinks. Utilizing nitrogen dosing, this equipment reduces oxygen content, preserving flavor and extending shelf life. With a capacity of up to 9,000 packages per hour, the TT/3 UHH ensures seamless integration into existing production lines. Designed for efficiency, it features PLC control and Ethernet connectivity for remote monitoring and streamlined operations. Robust injection molding and sealing techniques provide reliable packaging integrity, complemented by a comprehensive cleaning unit to maintain hygiene standards. Compliance with food safety regulations and customizable configurations are available to meet specific production demands.

Benefits

  • Enhances production flexibility by allowing simultaneous filling of two different products.
  • Reduces operational costs with efficient nitrogen dosing to extend shelf life.
  • Minimizes downtime through rapid package volume changes and dual-line operation.
  • Ensures product safety and quality with advanced hygiene and sealing technology.
  • Supports diverse product offerings, from dairy to plant-based liquids, in a single machine.

General


Applications
Nectar,Still drinks,Whey powder,Ambient drinking yoghurt,Plant-based products,Ice cream,Dairy alternative,Juice,High acid products
End products
Lemonade,Tomato juice,Plant-based protein shake,Vegan ice cream,Oat milk,Almond milk,Coconut water,Probiotic yogurt drink,Orange nectar,Passionfruit still drink,Soy yogurt,Whey protein powder
Steps before
Purification,Mixing,Emulsification,Homogenization,Blending
Steps after
Sterilization,Packaging,Nitrogen Dosing,Quality Inspection,Distribution
Input ingredients
high acid ambient still drinks,ambient drinking yoghurt,packaging materials,polythene,3% hydrogen peroxide
Output ingredients
Tetra Top® packages,ambient distribution,packages with extended shelf life,leak-proof joint lids,high acid ambient products
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Filling speed
9000 packages/hour
Shelf life
2-6 months
Package volume change time
5 minutes
Production lines
Dual-line
Nitrogen dosing
Reduces oxygen content from 21% to 10%
Injection moulding speed
World's fastest
HEPA air supply
Yes
Operator Panels (TPOP)
2
Process communication
Ethernet
Operating system
Windows 10
Hygiene chamber cleaning
3% Hydrogen peroxide (H2O2) vapour,UV-light
MIBI failure rate
0.1%

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Changeover time
5 minutes
CIP/SIP
HEPA air cleaning
Cleaning method
CIP / Manual using Tetra Top® Cleaning Unit
Energy efficiency
High due to nitrogen dosing

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container Shape
Rectangular/ Tetra Top®

Physical Characteristics


Dual-line architecture
Independent production on both sides
Control panel type
Tetra Pak® Operator Panels (TPOP)
Operator interface
Application based on Windows 10
Hygiene chamber
Supports up to 6 months shelf-life
Platform design
Larger platform with staircase

Custom Options


Dual-line configuration
Independent operation
Operator interface
Tetra Pak® Operator Panels
Control system
Windows 10 based application
Integration capabilities
Line Controller 40,Ethernet enabled
