Dry granulation system for pharmaceutical powders

Streamline your powder processing with a dry granulation system that enhances particle integrity and flow, ensuring seamless integration into your production line for creating high-quality tablets and granules.

Compacts and Granulates Powders into Uniform Granules

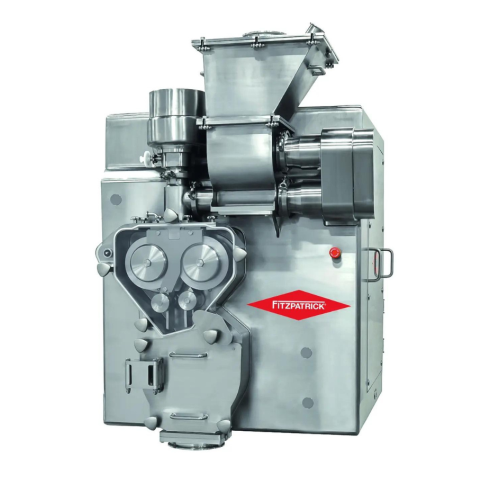

The High Containment Roller Compaction System from The Fitzpatrick Company, a division of IDEX MPT, Inc., offers precise powder compaction and granulation with minimal process variables. Known for its efficiency in transforming powders into uniformly compacted ribbons, this equipment is indispensable for pharmaceutical, nutraceutical, and food productions demanding seamless integration and particle size consistency. Utilizing a counter-rotating roll mechanism, it enhances powder flow and prevents segregation, ensuring trouble-free feeding into downstream processes. Capable of continuous high-speed operations, it excels in producing pharmaceutical tablets, collagen supplements, and detergent granules. Designed for robust industrial use, the system features a PLC-controlled interface for effortless automation and remote monitoring, optimizing energy use through variable-speed motor control while meeting GMP and FDA requirements. Constructed with options for stainless steel or Hastelloy, it guarantees resistance to harsh chemicals and ensures a hygienic production environment. Equipped with a CIP system, it allows quick, contamination-free maintenance and can be customized for various production needs through configurable roll dimensions and mill screen sizes.

Benefits

  • Enhances powder flow and prevents caking, ensuring seamless downstream processing.
  • Reduces operational costs with high-speed, continuous operation that maximizes output.
  • Minimizes contamination risks and meets industry standards with GMP-compliant construction.
  • Offers flexibility for diverse production needs with customizable settings and material options.
  • Simplifies cleaning processes with integrated CIP system, decreasing downtime for maintenance.

General


Applications
Food,Chemicals,Nutraceuticals,Cannabis,Pharmaceuticals
End products
Pharmaceutical tablets,Instant soup granules,Cannabis edibles,Collagen supplements,Detergent granules,Protein bars
Steps before
Powder Blending,Purification,Drying
Steps after
Milling,Tablet Pressing,Packing
Input ingredients
powders,primary particles,powder blends
Output ingredients
granules,dense compact ribbons,uniform particle size,dosage forms,tablets,granular material
Market info
The Fitzpatrick Company is known for its expertise in designing and manufacturing particle processing equipment, specializing in dry granulation, roll compaction, and size reduction technologies, earning a strong reputation for quality and innovation in the pharmaceutical and industrial sectors.

Technical Specifications


Granulation method
Dry Granulation
Compaction type
Roll Compaction
Process control parameters
Feed system design,speed,Roll dimensions,Roll speed,force,gap,Roll surface profile
Particle size control
Uniform particle size through milling
Powder flow improvement
Eliminates caking and bridging
Granule integrity
Controlled particle hardness
Bulk density control
Reduces bulk density
Dust control
Reduces dust and cross-contamination
Automation
Available (specifics not provided)
Environmental risk reduction
Minimized

Operating Characteristics


Working Mechanism
Compaction and Milling
Automation Level
Manual / PLC
Batch vs. Continuous Operation
Continuous
Changeover Time
Minimal
Cleaning Method
Manual / CIP
Feed System Design
Counter-rotating Rolls
Energy Efficiency
Lean Process

Material Compatibility


Grinding capability
Pharmaceutical / Nutraceutical / Food / Chemical
Powder handling
Dry powders / Granulated materials
Adsorbent materials
Yes
Crushablility
High

Physical Characteristics


Roll Dimensions
Diameter,Width

Custom Options


Roll dimensions
Diameter,width specifications
Roll surface profile
Smooth/Textured
Mill rotor design
Variable velocity settings
Mill screen type,hole size
Customizable specifications
Control panel type
PLC-integrated
Feed system design,speed
Adjustable calibration
Roll speed,force,gap
Customizable parameters
Powder compact routing
Customizable layout
