Double shaft paddle mixers for industrial powders and granulates

Achieve precise mixing and homogenization of dry powders and granulates in record time with this robust equipment, designed for optimal performance in high-speed, batch operations.

Mixes and Homogenizes Powders and Granulates

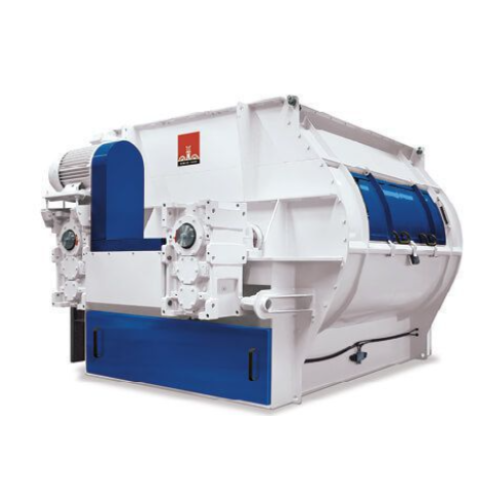

The DPMA Series from Ottevanger Milling Engineers are double shaft paddle mixers designed for precise and efficient mixing of dry powders, granulates, and liquids. Utilizing a fluidized zone created by counter-rotating paddles, these mixers achieve a homogeneous blend in just 30 to 60 seconds. Common applications include the production of protein powder blends, granular fertilizers, pet and aqua feeds, and premix concentrates. Available in capacities ranging from 500 to 12,000 liters, they offer versatile batch processing compatible with various industries, including food, animal feed, and oilseed processing. The mixers feature a residue-free design with unique sealing, customizable materials like S235JR and 316L stainless steel, and corrosion-resistant finishes. They integrate smoothly into automated lines with options for liquid dosing and adjustable paddles. Designed for ATEX 22 environments, these mixers support a range of engineering customizations to meet specific production requirements.

Benefits

  • Achieves homogeneous mixing in under a minute, enhancing productivity.
  • Minimizes residue and dust for cleaner operation and reduced waste.
  • Operates efficiently with low energy consumption, lowering operational costs.
  • Handles diverse material types, ensuring versatility across various applications.
  • Customizable to specific needs, supporting flexible production requirements.

General


Applications
Pet food,Dry powders,Granulates,Oilseed processing,Soybean processing,Aqua feed,Concentrates,Premix,Compound feed
End products
Sunflower oil,Dog kibble,Shrimp feed,Mineral concentrates,Granular fertilizer,Protein powder blends,Vitamin premixes,Soy protein isolate,Poultry feed mash
Steps before
Grinding,Dosing,Weighing
Steps after
Pelleting,Drying,Coating
Input ingredients
dry powders,granulates,liquids
Output ingredients
homogeneous mixture
Market info
Ottevanger Milling Engineers is renowned for designing and manufacturing innovative milling equipment and complete production lines for the grain processing industry, including feed mills, flour mills, and biomass processing, with a reputation for quality, efficiency, and customized solutions.

Technical Specifications


Mixing time
30–60 seconds
Capacity
500–12,000 liters
Mixing accuracy
1
Power consumption
Low
Minimum filling degree
25% of nominal content
Drive
7.5–110 kW
Material options
S235JR/316L
Finishing standards
up to 0.3 mμ

Operating Characteristics


Mixing time
30-60 seconds
Mixing accuracy
1
Batch vs. continuous operation
Batch
Minimum filling degree
25% of nominal content
Power consumption
Low
Residual and dust-free design
Yes,due to unique sealing principle

Material Compatibility


Abrasion resistance
High
Cleanability
Easy to clean design
Corrosive resistance (e.g. acids)
Options for S235JR/316L steel
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product type
Dry powders,granulates


ATEX certification
ATEX Zone 22

Physical Characteristics


Machine footprint
Varies by model
Capacity
500 to 12,000 liters
Construction materials
S235JR/316L
Finishing standards
Up to 0.3mμ
Feed/Discharge method
Extra wide bomb doors
Drive power
Varies by model (7.5 kW to 110 kW)
Weight
1400 kg to 16000 kg

Custom Options


Liquid dosing equipment
Available
Lump crusher
Optional
Adjustable paddles/hardox paddles
Yes
ATEX execution
Available
Weighing frame
Optional
Material and finishing standards
S235JR/316L,up to 0.3mμ
Machine customization
Customizable
