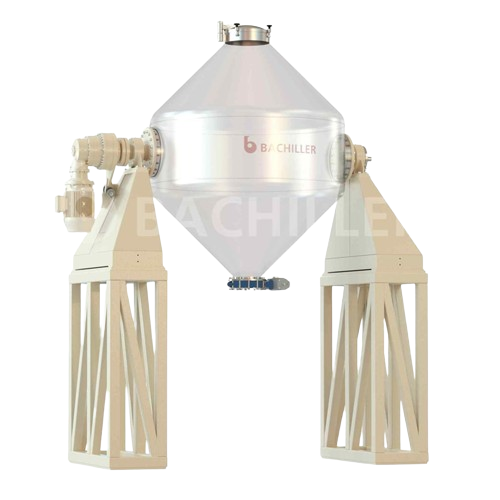

Double cone mixer for powders and solids
Ensure gentle mixing of fragile powders and solids with a low-speed, non-forced blend to maintain product integrity while meeting high cleaning requirements between batches.
Gently Mixes and Homogenizes Solids and Powders
The Double Cone (MBC) from Bachiller is designed for precise mixing of delicate solids and powders. Its biconical rotary drum gently tumbles products at low speed, minimizing structural damage for fragile materials. Ideal for the chemical, pharmaceutical, and food industries, it’s commonly employed to mix vitamin blends, protein supplements, and resin powders.
With capacity ranging from 200L to 35,000L, the MBC offers batch-wise operations known for their accuracy, achieving a mixing accuracy of 1:10,000 in mere minutes. This mixer ensures complete discharge, reducing product contamination risks during changeovers and simplifying cleaning.
Material-wise, the mixer comes in hygienic finishes, internally mirror-polished to a Ra ≤ 0.6 µm, and can be outfitted with a heating/cooling jacket, liquid injection, or choppers for intensified mixing. Compliance is assured with CE marking under the Safety for Machinery Directive 2006/42/CE, with ATEX options for hazardous environments.
Maintenance is streamlined with low-maintenance design features and options for automated solids loading, dosing systems, and vacuum conveying. Bachiller supports customization and offers engineering assistance to tailor the mixer to your specific processing needs, ensuring seamless integration into your production line.
Benefits
- Preserves product integrity with gentle, non-forced mixing.
- Achieves high-precision homogenization quickly, enhancing batch consistency.
- Simplifies cleaning and changeovers, minimizing downtime between production runs.
- Customizable for various production needs, ensuring seamless process integration.
- Ensures safety and compliance with industry standards, including CE and ATEX options.
- Applications
- Vitamins,Snacks,Cosmetics,Pigments,Minerals,Sweeteners,Food,Chemicals,Polymers,Fine chemicals,Spices,Breakfast cereals,Animal feed,Resins,Metallic powders,Plastics,Baby food,Pharmaceutical excipients,Pharmaceuticals,Food additives,Tea infusions,Soluble coffee
- End products
- Polystyrene beads,Pelletized chicken feed,Vitamin c tablets,Skin cream bases,Antioxidant blends,Polyethylene pellets,Herbal tea sachets,Metallic pigment coatings,Mineral supplement capsules,Cornflakes,Color additives,Granola,Acrylic resin powders,Muesli base flakes,Instant baby formula,Ibuprofen capsules,Protein powder supplements,Cat food mix,Soluble instant coffee crystals,Uv protection lotions
- Steps before
- Grinding,Drying,Emulsification
- Steps after
- Packing,Coating,Sterilization
- Input ingredients
- additives,baby food,breakfast cereals,colorants,dextrin,diet foods,food preparations,gelatin,improvers,muesli,powder humectation,ready mix,salads,snacks,soluble coffee,soup,spices,sweeteners,tea infusions,vitamin complements,catalysts,cellulose,metallic powders,minerals,phosphates,pigments,plastics and pellets,polymers,premix,resins,amino acids,antibiotics,API’s,caffeine,cephalosporin,cosmetic,crystals,feed additives,food additives,ibuprofen,omeprazole,peptides,pharmaceutical excipients,preservatives,saccharine,veterinary,vitamins
- Output ingredients
- homogenized powders,blended products,discharged mixes
- Market info
- Bachiller specializes in industrial engineered-to-order equipment, known for high-quality process equipment in the chemical, petrochemical, pharmaceutical, and food industries. They are recognized for their expertise in designing and manufacturing pressure vessels, reactors, and mixing equipment.
- Capacity
- 200–35,000 L
- Mixing accuracy
- 1
- Batch operation
- Yes
- Internal finish
- Mirror polished Ra ≤ 0.6 µm
- External finish
- Matte or Mirror
- Liquid injection
- By spraying
- Operation under pressure
- Yes
- Vacuum capability
- Yes
- Choppers
- For mixing intensification
- Automatic positioning
- Yes
- ATEX execution
- Internal zone 20/0
- Solids loading and dosing
- Automatic
- Heating/cooling jacket
- Yes
- Weighting system
- Yes
- Product loading
- Through vacuum conveying
- Working mechanism
- Biconical drum rotation,non-forced mixing
- Batch vs. continuous operation
- Batch
- Cleaning method
- Very easy to clean
- Automation level
- Manual / Automatic positioning
- Energy efficiency
- Low maintenance required
- Cleanability
- Very easy to clean
- Density/particle size
- 0.5–1000 µm
- Drum shape
- Biconical
- Drum size
- 200L to 35,000L
- Discharge method
- Complete product discharge
- Feed/discharge method
- Vacuum conveying system
- Internal Finish
- Internally mirror polished Ra ≤ 0.6 µm (Grit 360)
- External Finish
- Polished in matte or mirror
- Heating/Cooling Option
- Heating/cooling jacket
- Pressure/Vacuum Design
- Design under pressure and/or vacuum
- Choppers
- Mixing intensification and lump breaking
- Product Loading
- Product loading through vacuum conveying system
- Automatic Positioning
- Automatic positioning of the machine
