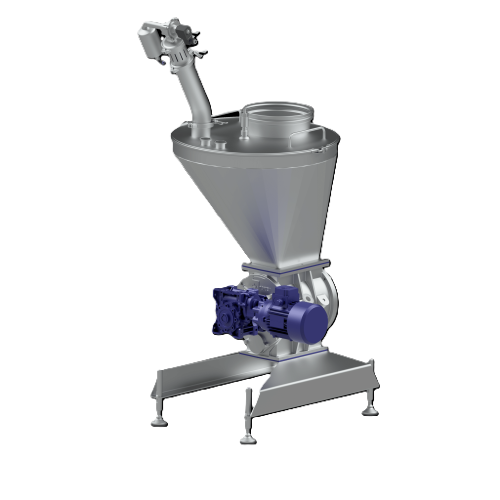

Dilute-phase conveying solution for powder handling

Efficiently transfer powders and granules with robust leak containment while preserving product integrity, ideal for high-speed, continuous operations that demand precision in dosing and filtration.

Transports and Separates Powders and Granules Efficiently

The Dilute-Phase Conveying System from Daniatech offers an efficient solution for transporting powders and granules across various industries such as dairy, food, and personal care. Utilizing both vacuum and pressure conveying technologies, this system ensures continuous, high-speed operation while maintaining product quality. The vacuum mechanism operates under atmospheric pressure, minimizing product heat exposure and enhancing cleanliness, making it suitable for ATEX-regulated environments. In contrast, the pressure system excels at longer distances, providing higher capacities with options for cooling and dehumidification. Designed for applications like conveying and separation, the system efficiently manages materials like xanthan gum solutions and cornflour slurries, with transport velocities between 20-30 m/s. Available with stainless steel construction for enhanced corrosion resistance, it integrates seamlessly into your processing line while offering ease of maintenance with features like CIP systems and airlock hopper configurations. Additionally, Daniatech supports customization tailored to your production needs, alongside engineering support for optimal integration.

Benefits

  • Enhances operational efficiency with continuous, high-speed conveying.
  • Maintains product integrity without heating, vital for sensitive materials.
  • Improves safety and compliance with superior leak containment for ATEX environments.
  • Reduces maintenance efforts and downtime with easy-to-clean CIP systems.
  • Supports long-distance material transport, ideal for large-scale operations.

General


Applications
Personal care,Soups,Plant-based beverages,Sauces,Hummus,Pet food,Syrups,Hydrocolloids,Confectionary,Liquid batters,Condiments,Starches,Biotech,Mayonnaise,Concentrates,Juices,Soft drinks,Dairy
End products
Pancake batter,Chocolate truffles,Alfredo sauce,Tomato soup,Cornstarch slurry,Oat milk,Xanthan gum solution,Maple syrup,Enzyme solutions,Shampoo base,Chicken-flavored dog kibble,Spicy mustard,Cola syrup,Orange juice concentrate,Roasted garlic hummus,Cottage cheese,Vegan mayonnaise
Steps before
Bigbag Discharge,Dense-Phase Conveying,Weighing and Dosing,Delumping
Steps after
Inline Sifting,Magnetic Detection,Cyclone Separation,Silo Storage
Input ingredients
bulk materials,powder,air,atmopsheric air,vacuum air
Output ingredients
conveyed bulk materials,separated powder,clean air
Market info
Daniatech specializes in manufacturing industrial mixers and processing equipment, known for innovation and high-quality engineering, specifically within the food, beverage, and pharmaceutical industries. Their solutions are tailored to improve efficiency and performance in production processes.

Technical Specifications


Capacity
0.1 – 10 ton/h
Transport velocity
20 – 30 m/s
Transport distance
up to 100 m
Operating pressure (Pressure system)
above 1 bar
Operating pressure (Vacuum system)
500 mbar vacuum
Automation
Pressure transmitter for blockage protection
Air intake
Filter,HEPA-filter option
Piping
Stainless steel pipe transport line
Leak containment
Superior in vacuum systems
Product flow
Gentle flow with airlock systems
ATEX consideration
Designed for cleanliness and ATEX

Operating Characteristics


Working Mechanism
Vacuum / Pressure
Integrated Steps
Air filtering and separation
Batch vs. Continuous Operation
Continuous
Leak Containment
High containment
Product Heating
Minimal (Vacuum System)
Automation Level
PLC / SCADA
Handling Cleanliness
High cleanliness demand
ATEX Consideration
Yes
Airflow Velocity
20–30 m/s
Transport Distance
Up to 100 m

Material Compatibility


Density/particle size
0.1 – 10 ton/h

Product type Characteristics


Heat Sensitivity
Yes
Viscosity
Low to medium
Abrasion Resistance
Low abrasiveness

Physical Characteristics


Transport line material
Stainless steel
Feed method
Airlock / Rotary valve / Screw feeder

Custom Options


Air intake
Filter / HEPA-filter,cooling,dehumidification
Air pump
With silence damper
Weighing and dosing equipment
Available
Transport line
Stainless steel pipe,elbows,2-way valves,flexible connection
Reinforced bends
Available
Additional equipment
Inline sifter,magnetic detection,separation
ATEX
Available
