Decarboxylation package for botanical extraction

Optimize decarboxylation and reaction processes with precise temperature control and efficient vacuum sealing to ensure the highest purity for your botanical extracts and active ingredients.

Controls Reaction Environment for Decarboxylation Processes

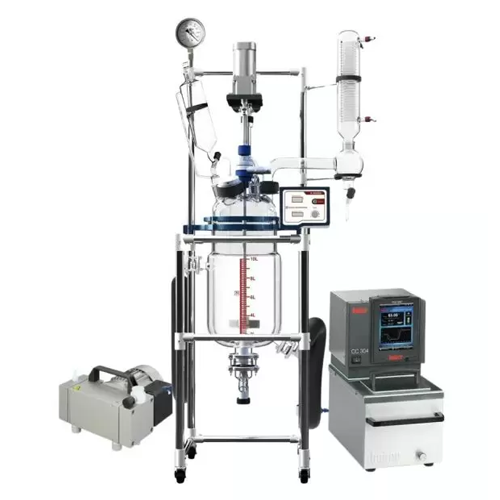

The Ai R10 and Ai 2R10 from Across International are glass jacketed reactors designed for optimal control in decarboxylation and chemical reactions. Featuring adjustable stirring speeds and a vacuum-sealed environment, these reactors maintain stable conditions for producing high-purity cannabidiol (CBD) oils, APIs, and botanical extracts. They integrate seamlessly into lab-scale and pilot plant setups, supporting batch processing with manual operation. The reactors’ high borosilicate glass construction ensures resistance to heat, cold, and corrosion while the dual-jacketed model offers enhanced temperature control by drawing vacuum from the outer jacket. With a digital control interface, you’ll benefit from precise adjustments and minimal energy consumption. Certified to meet stringent safety and quality standards, these reactors are also equipped for easy cleaning and maintenance, making them ideal for pharmaceutical, chemical, and botanical extraction industries.

Benefits

  • Optimizes product consistency with precise temperature and vacuum control.
  • Enhances energy efficiency, reducing utility costs by extending chiller life.
  • Integrates efficiently into existing lab setups with a compact, bench-top design.
  • Minimizes chemical exposure risks with solvent-resistant materials and secure seals.
  • Ensures compliance with safety standards through robust construction and certifications.

General


Applications
Chemicals,Liquid formulations,Pharmaceutical tablets,Fine chemicals,Nutraceuticals,Botanical extraction,Biopharmaceuticals,Essential oils
End products
Cannabidiol (cbd) oils,Botanical extracts,Active pharmaceutical ingredients (api),Chemical reagents,Vitamin e oil,Herbal tinctures,Omega-3 supplements,Multivitamin liquid supplements
Steps before
Material Preparation,Solvent Dispensing,Chemical Synthesis Setup
Steps after
Solvent Recovery,Cooling,Vacuum Drying
Input ingredients
synthetic reaction materials,viscous materials,reactive materials,solvents
Output ingredients
recovered materials,condensed output,processed chemicals
Market info
Across International is known for manufacturing high-quality thermal management equipment, such as vacuum ovens, furnaces, and laboratory equipment, with a strong reputation for reliability and innovation in industries like materials research, cannabis processing, and laboratory testing.

Technical Specifications


Reaction glass vessel capacity
2.6 gallons (10L)
Cooling/heating jacket capacity
0.8 gallon (3L)
Glass material
High borosilicate glass 3.3
Rotation controller
Digital controller with variable frequency drive
Maximum jacket pressure
4.4 psi or 0.03 MPa
Agitator material
304 stainless steel with PTFE liner
Condenser
Dual-cooling coil design
Vacuum level
20 torr
Glass vessel temperature range
-110F to 400F
Vacuum sealing
Glass or PTFE
Reactor dimensions (WxDxH)
18 x 26 x 78"
Shipping weight
240 Lbs

Operating Characteristics


Temperature range
-110°F to 400°F
Stirring speed
Adjustable
Vacuum level
20 torr
Batch vs. continuous operation
Batch
Cooling capability
Dual-cooling coil design
Automation level
Digital control
Cleaning method
Manual
Energy efficiency
N/A
Pressure resistance
Maximum 4.4 psi
Material feeding method
Pressure equalizing funnel

Material Compatibility


Corrosive resistance (e.g. acids)
Heat/cold/corrosion-resistant

Product type Characteristics


Application
Synthetic Reaction

Physical Characteristics


Machine footprint
18 x 26 x 78 inches
Discharge method
1-inch glass bottom drain port with PTFE open/close valve
Reactor vessel shape
Cylindrical
Capacity
10L (2.6 gallons)
Weight
240 Lbs
Control panel type
Digital controller with variable frequency drive

Custom Options


Control panel type
Digital controller with variable frequency drive
Integration possibilities
Compatible with temperature and stirring speed digital displays
Cooling option
Includes optional chiller for condenser
Reactor configuration
Single or Dual jacketed glass reactor
Insulation option
Thermo insulation jacket with adjustable drawstrings
