Counter-rotating agitator for high viscosity products

Achieve seamless heat transfer and precise mixing with a counter-rotating agitator, ideal for handling both high and low viscosity products in continuous operations.

Mixes, Homogenizes, and Transfers Heat

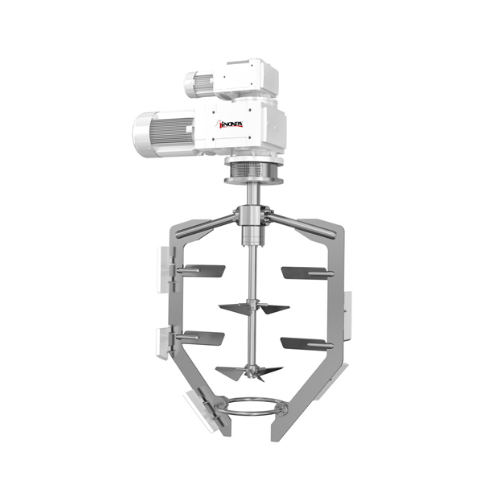

The MCR Counter-Rotating Industrial Agitator from INOXPA is designed to enhance your processing line with its unique ability to efficiently mix, homogenize, and transfer heat across varied production environments. Utilizing two coaxial shafts connected to geared motors that rotate counter to each other, this agitator handles both low and high-viscosity products with precision. The central shaft’s high-speed rotation disperses and mixes, while the outer shaft, equipped with scrapers, ensures uniform temperature by removing product from tank walls and enhancing heat transfer. Ideal for applications in pharmaceuticals, cosmetics, and food industries, the MCR Agitator excels in producing items such as creams, lotions, sauces, and medical suspensions. It is customizable to your specifications, offering variable speed settings for detailed process control and adaptability. Constructed from AISI 316L stainless steel, it ensures durability and compliance with EHEDG hygienic guidelines, supports CIP and SIP processes, and includes options for ATEX certification. The modular design allows for easy maintenance and the replacement of crucial components like seals, minimizing downtime and ensuring sustained productivity.

Benefits

  • Enhances process flexibility with variable speed control for different stages of production.
  • Reduces risk of overheating through efficient heat transfer facilitated by scraper anchors.
  • Complies with stringent hygiene standards, ensuring product safety and quality.
  • Streamlines maintenance with easy access and replacement of components, minimizing downtime.
  • Customizable configurations provide tailored solutions for diverse industry needs.

General


Applications
Low viscosity products,Cosmetics,Heat-sensitive products,Food products,High viscosity products,Pharmaceuticals
End products
Soups,Lip balms,Toothpaste,Perfumes and lotions,Yogurt and custards,Sauces and dressings,Chocolate spreads,Medical suspensions,Fruit preserves,Purees,Creams and ointments,Body lotions
Steps before
Purification,Pre-mixing,Grinding,Emulsification
Steps after
Sterilization,Packaging,Coating,Temperature Homogenization
Input ingredients
medium viscosity products,high viscosity products,low-viscosity phases,complex agitation processes,fluid agitation processes,products requiring heat exchange
Output ingredients
homogenized products,heat-transferred products,dispersed mixtures
Market info
INOXPA is known for its expertise in manufacturing stainless steel components and equipment, particularly for the food, dairy, cosmetic, and pharmaceutical industries. They are reputed for high-quality, hygienic, and reliable processing solutions.

Technical Specifications


Shaft Type
Coaxial
Rotation
Counter-rotating
Speed
Variable frequency drive
Mixing capability
Medium and high viscosity
Heat Transfer
Scraper anchor for homogenization
Geometry Adaptation
Modular design
Motor Type
Independent high-efficiency bevel gear motors
Sealing System
Mechanical seal SiC/C
Material in Contact
1.4404 (AISI 316L)
Modular design
Configurable with different options
Temperature Homogenization
Scraper anchor
Phase Optimization
Low-viscosity phases
Configuration Options
Power and turning speeds

Operating Characteristics


Batch vs. continuous operation
Batch
CIP/SIP
Yes,optimized for CIP/SIP processes
Automation level
Variable frequency drive
Cleaning method
CIP Compatible
Integration Flexibility
Modular Design
Heat transfer capability
Scraper anchor for heat exchange

Physical Characteristics


Material
1.4404 (AISI 316L)
Shaft Configurations
Coaxial Shafts
Size and Rotational Speeds
Configurable,wide range
Design
Hygienic design,modular
Propeller Type
Central shaft propellers
Scraper Anchor
Outer shaft with scrapers
Surface Finish
Various options available
Sealing System
Configurable
Dimensions
Variable based on configurations
Heat Transfer Capability
Enhanced with scraper anchor

Custom Options


Control panel type
Variable frequency drive
Surface finish options
Customizable
Sealing system
Customizable
Elastomeric materials
EPDM / FPM
Type of anchor
Customizable
ATEX certification option
Available
