Continuous powder agglomeration system

Enhance product solubility and flowability while minimizing energy consumption with this high-speed solution that transforms powders into instantly soluble agglomerates, seamlessly fitting into your continuous production line.

Agglomerates and Mixes Powders Continuously

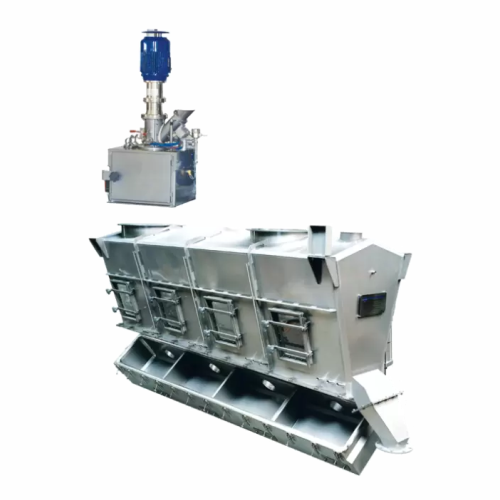

The Flexomix Continuous Powder Agglomeration System from Hosokawa Micron is a compact, robust solution for efficient mixing and agglomeration of powders with liquids, enhancing product properties such as solubility and flowability. Utilizing a combination of the Flexomix continuous mixer/agglomerator and the Schugi fluid bed dryer, it ensures optimal process control and product consistency.

This system is ideal for applications in the pharmaceutical, food, chemical, and energy sectors, producing end products like granulated detergents, instant cocoa mixes, and pharmaceutical granules. It processes capacities from 100 to 40,000 kg/h, featuring a gravimetric powder feeding system and a liquid dosing skid for precise control.

Automation is integral, with advanced HMI-PLC panels providing lot traceability, operator identification, and remote diagnostics. The system is energy-efficient, using about 35% less energy compared to traditional methods. Constructed with corrosion-resistant materials, it is available in multiple sizes to match specific process requirements and adheres to industry standards. Cleaning and maintenance are simplified with a self-cleaning mechanism and a quick-disassemble design, ensuring minimal downtime and ease of operation. Customization is supported to align with your unique processing needs.

Benefits

  • Enhances product solubility and flowability, ensuring better performance in end applications.
  • Reduces energy use by approximately 35%, lowering operational costs.
  • Continuous operation minimizes manual intervention, increasing labor efficiency.
  • Flexible design accommodates diverse powder materials, facilitating quick product changeovers.
  • Integrated control systems improve process reliability and traceability, ensuring high quality output.

General


Applications
Detergent powders,Plant-based proteins,Veterinary antibiotics,Pesticides,Minerals,Dairy,Food,Chemicals,Cosmetic powders,Starch,Humidified products,Fine powders,Animal feed,Ceramics,Phosphates,Cocoa drink powder,Metals,Instant soup,Flavorings,Pharmaceuticals,Battery materials,Super absorbent polymers,Metal salts
End products
Lithium-ion cathode materials,Extrusion-ready humidified clay,Dehydrated meal kits,Amoxicillin agglomerates,Effervescent tablets,Chemical catalysts,Mineral makeup foundation,Granulated pesticides,Zinc sulfate granules,Cup noodle seasoning,Pea protein isolates,Laundry powder detergent,Metal powder blends,Baked food flavor enhancers,Instant cocoa mix,Porcelain slip,Milk powder,Compacted fine silicon dioxide,Monoammonium phosphate granules,Animal nutrition pellets,Modified starches,Diaper core granules,Talc granules
Steps before
Storage,Conveying,Charging,Mixing
Steps after
Drying,Cooling,Discharging,Sieving,Packing
Input ingredients
powders,liquids,base powders,solution binders,veterinary antibiotics,pesticide formulae,fine powders,phosphates,detergent powders,filter cakes,cocoa drink powder,cross-linking agents
Output ingredients
agglomerates,porous granulates,instantly soluble agglomerates,homogeneous powder mixture,dried and cooled agglomerates
Market info
Hosokawa Micron is renowned for specializing in the manufacturing of powder and particle processing technologies, including mixing, drying, and milling equipment. They are respected for their innovative solutions and engineering excellence in industrial engineered-to-order equipment markets.

Technical Specifications


Capacity
100–40,000 kg/h
Particle size range
100–1,500 microns
Typical D50 value
200–700 microns
Automation
Optimally integrated hardware and software controls
Mixing chamber
Flexible with pitch-adjustable mixing blades
Motor power
3.7–75 kW
Dryer size
0.25 m² to > 20 m²
Airflow control
Largely determined by system components (blower,heating/cooling equipment)
Energy savings
Approximately 35% less energy compared to spray tower
Self-cleaning feature
External roller cage massages the mixing chamber
Continuous operation
Yes

Operating Characteristics


Working mechanism
Continuous mixing and agglomeration
Automation level
Integrated HMI-PLC control
Cleaning method
Self-cleaning with external roller cage
Batch vs. continuous operation
Continuous
Changeover time
Less than two minutes
Energy efficiency
35% less energy compared to spray tower
CIP/SIP
Integrated cleaning options available

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Varies by model
Machine dimensions
Length
Discharge method
Gravity
Mixing chamber design
Vertical,pitch-adjustable blades
Control panel type
Ergonomic HMI-PLC

Custom Options


Control panel type
Ergonomic HMI-PLC panels
Process integration
Seamless integration with existing systems
Automation integration
SCADA / PLC systems
Mixing flexibility
Pitch-adjustable mixing blades
System adaptability
Flexible product handling capabilities
