Conical mill for high-capacity powder milling
Optimize your powder milling process with efficient conical milling systems designed for precise particle size control and high-product recovery, ensuring minimal waste and maximized throughput.

Processes and Reduces Particle Size for Various Applications

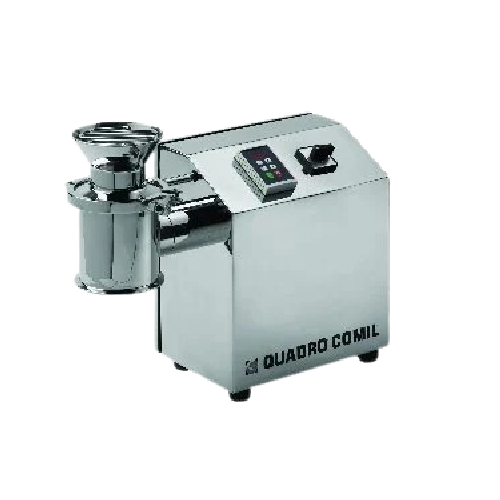

The Underdriven Comil Series from Quadro Engineering is a suite of conical milling solutions tailored for efficient powder processing across pharmaceutical, nutraceutical, and food industries. This equipment excels in reducing particle size and deagglomerating materials with its unique underdriven design, facilitating compact integration in production lines. Featuring a scalable capacity ranging from lab-scale to production-scale, it can process up to 35,000 lb/hr of material. Its inline tri-clamp design ensures seamless installation, while the absence of spacers enables quick changeovers of impellers and screens, maintaining high throughput with minimal downtime.
The Underdriven Comil is engineered for energy efficiency, optimized by variable-speed motor control, and is available with specialized tooling for heat-sensitive products. Constructed with stainless steel, it meets cGMP standards, ATEX, and UKEX certifications, ensuring compliance for use in potentially explosive atmospheres. The equipment supports closed-system processes, essential for pharmaceutical-grade manufacturing, and includes clean-in-place (CIP) capabilities for rapid and contamination-free maintenance, offering both operational excellence and regulatory compliance.
Benefits
- Enhances productivity with high-capacity throughput and minimal space requirements.
- Ensures precise particle size distribution for consistent product quality.
- Quick changeovers reduce downtime, boosting overall operational efficiency.
- Meets stringent safety and compliance standards for use in explosive environments.
- Integrated CIP capabilities facilitate efficient maintenance and reduce contamination risk.
- Applications
- Food,Nutraceuticals,Pharmaceutical osd,Chemical,Pharmaceutical api,Cannabis
- End products
- Protein powders,Chemical powders,Pharmaceutical tablets,Cannabis oils,Herbal supplements,Food thickeners
- Steps before
- Wet Conditioning,Granulation,Material Reclaim
- Steps after
- Drying,Sterilization,Packing,Tableting
- Input ingredients
- pharma materials,food materials,chemical materials,wet materials,dry powders,sticky agglomerates,raw bulk solids,tablets
- Output ingredients
- uniform particles,uniform-size powders,granulated powders,processed pharma materials,processed food materials,processed chemical materials,material reclaim
- Market info
- Quadro Engineering is known for its expertise in manufacturing pharmaceutical, food, and chemical processing equipment, particularly in milling, sieving, and deagglomeration solutions. The supplier is renowned for innovation, quality, and reliability in efficient particle size reduction technologies.
- Capacity
- Several ounces (grams) to 35,000 lb/hr (15,900 kg/hr)
- Head Height
- Extremely short
- Throughput
- High-capacity
- Particle Size Distribution (PSD) Controllability
- Accurate
- Motor Power
- 0.5 HP (375 kW) to 10 HP (7.5 kW)
- Containment (OEL)
- Levels under 1 µg/m3
- Cooling Method
- Not explicitly specified
- Screen and Impeller Changeover
- Quick changeover
- Design
- Spacerless
- Atex Compliance
- ATEX and UKEX certified
- Installation
- Inline tri-clamp design
- Operating Environment
- Compact
- Batch vs. Continuous
- Inline
- Cooling Temperature
- Reduced heat generation
- Changeover Time
- Quick
- Scale-Up Factor
- 1 to 20
- High-capacity throughput
- 35,000 lb/hr (15,900 kg/hr)
- Compact design
- Short head height
- Inline design
- Compact,scalable,flexible
- Changeover time
- Quick changeover of impellers and screens
- Automation level
- Integrated tri-clamp design
- Batch vs. continuous operation
- Batch / Inline Continuous
- Cooling requirement
- Reduced heat generation
- Containment level
- OEL levels under 1 µg/m3
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Suitable Applications
- Pharma,Nutraceuticals,Food,Chemical,Cannabis
- ATEX Certification
- Ex Zone 0,20 (1GD) / 1/21 (2GD)
- Compact footprint
- Yes
- Head height
- Short
- Infeed size
- Large-diameter
- Integration
- Inline
- Discharge method
- Straight-through flow
- Design
- Spacer-less
- Model Scale
- Lab-scale,Mid-range,Production-scale
- Model Types
- U5,U10,U20,U30
- Material Handling
- Heat-sensitive compatible
- Screen,Impeller Designs
- Quick changeover system
- Spacer-less Design
- Yes
- Large-Diameter Infeed
- Unhindered inline product flow
- Discharge Method
- Straight-through housing
- Specialized Tooling
- Handling heat-sensitive products
- Integration Possibilities
- Inline installation
- Motor Options
- 0.5 to 10 HP (0.375 to 7.5 kW)
