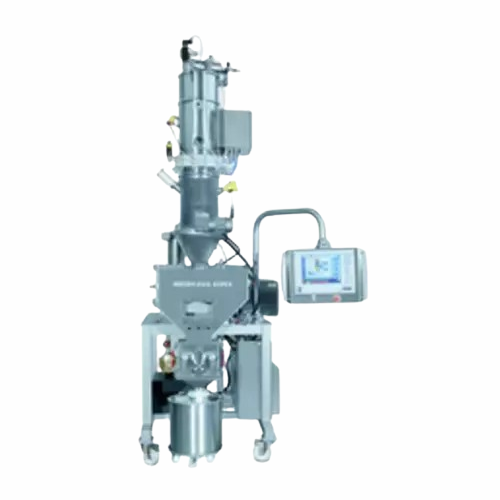

Compactor for powder processing

Designed for transforming powdered materials into uniform granules, this compactor enhances flow properties and reduces dust, improving the efficiency of your production line while maintaining consistency in product quality.

Compacts and Granulates Powders into Granules

The Series APC L, APC C, and ARC K compactors and roller presses from Hosokawa Alpine offer precise granulation solutions for diverse industries, including chemical, food, and pharmaceuticals. These machines excel in converting powders into uniform granules, improving flow properties and reducing dust emissions. Utilizing a robust pressing mechanism, they efficiently process materials through distinct methods such as dry granulation and briquetting.

Key applications range from creating catalytic converters and vitamin capsules to producing 3D printed parts and rechargeable battery electrodes. The L series features a mobile design with quick roller changes, ideal for up to 200 kg/h throughput, while the K series supports higher capacities exceeding 1000 kg/h, suited for continuous operations requiring adjustable roller gaps and integrated cooling.

Constructed with stainless steel, these systems ensure product purity and comply with FDA and ATEX standards, crucial for sensitive manufacturing environments. Additionally, the Pharmapaktor C model is tailored for pharmaceutical applications, featuring electromechanical gap adjustments and WIP/CIP capabilities, achieving batch processing from as low as 50 grams. The comprehensive design allows seamless integration into existing production lines with PLC control and optional remote monitoring, supporting optimal production efficiency and quality control.

Benefits

  • Enhances product consistency with precise granulation, meeting stringent quality standards.
  • Saves time and labor with quick roller changes and easy clean-up.
  • Supports flexible production demands with customizable roller gaps and cooling systems.
  • Ensures operational safety and compliance with dust-tight, FDA, and ATEX-certified designs.
  • Accommodates a wide range of batch sizes, reducing material waste in diverse applications.

General


Applications
Sugar and sweeteners,Dishwashing powder,Food industry,Lithium-ion batteries,Crop protection agents,Lactose and dairy products,Powder coating,Catalysts,Talc,Chemicals,Pharmaceutical tablets,Flame retardants,Fertiliser,Medicinal herbs,Low energy solutions,Spices,Additive manufacturing metal,Tea,Animal feed,Additive manufacturing polymer,Titanium dioxide,Industrial wax,Nutritional supplements,Recovered carbon black,Cocoa processing,Technical ceramics,Composite materials,Cable recycling,Calcium carbonate,Lignin,Film recycling,Recycling of lithium-ion batteries,Protein shifting,Hard minerals,Graphite
End products
Abrasive grains,Lignocellulosic materials,Pencil leads,Confectioner's sugar,Fiber-reinforced composites,Rechargeable battery electrodes,3d printed metal parts,Detergent formulations,Catalytic converters,Fire retardant materials,Chalk,White pigment,Plant fertilizers,Insulation materials,Coated tablets,Skimmed milk powder,Cocoa powder,Paint powders,Ceramic tiles,Carbon-filled plastics,Animal nutrition supplements,Instant tea granules,Textured vegetable protein,Herbal extracts,Pesticide formulations,Talcum powder,Vitamin capsules,Insulated copper wires,Recycled plastic films,Spice powders,Grain-based sweeteners,3d printed plastic models,Synthetic waxes,Polymer pellets,Rechargeable battery recycling materials
Steps before
Grinding,Purification,Drying,Mixing
Steps after
Packing,Coating,Tablet Pressing,Sifting
Input ingredients
powders,chemical catalysts,tea,nutritional supplements,pharmaceutical powders
Output ingredients
compact granules,improved flow properties,customised particle size and shape,increased bulk density,pharmaceutical granules
Market info
Hosokawa Alpine is known for its expertise in manufacturing advanced process equipment and systems for powder and particle processing technology. It has a strong reputation for innovation, quality engineering, and customer-focused solutions in various industries.

Technical Specifications


Roller diameter
200–300 mm
Roller width
50–200 mm
Pressing force
150–300 kN
Throughput
1.5–1000 kg/h
Roller speed
4–30 rpm
Drive
2.95–51 kW
Weight
approx. 1250–1300 kg
Automation
Pressing force control
Cooling option
Roller cooling
Vacuum pre-venting
Yes
Material
Stainless steel
Cleaning method
Quick cleaning
FDA compliance
FDA-compliant design
Batch size
Processing small product batches (approx. 50 g)
Insulator design
OEB 5
Operating mode
Inert operating mode

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
PLC / Manual
Quick cleaning
Under 5 minutes
Cleaning method
CIP / WIP
Pressing force control
Automatic
Process control
Yes
Roller change time
Less than 5 minutes
Energy efficient process
Yes

Material Compatibility


Stainless steel compatibility
Yes
Corrosive resistance
Yes
Density/particle size
Variable

Product type Characteristics


Gravimetric characteristics
Yes/No
Agglomeration risk
Yes/No
Abrasiveness of material
High/Medium/Low
Heat sensitivity
High/Medium/Low
Flowability
Free/Restricted
Particle size distribution
10–1000 µm
Viscosity
Low/Medium/High

Physical Characteristics


Machine footprint
Compact design
Roller diameter
200 mm,250 mm,300 mm
Roller width
20-200 mm
Weight
Approx. 1250 kg - 1300 kg
Control panel type
Integrated control system
Material
Stainless steel
Discharge method
Integrated sieve mill

Custom Options


Roller cooling
Yes
Adjustable roller gap
Yes
Gas-tight design
Yes
Inert operating mode
Yes
Insulator design
Yes
ATEX
Yes
FDA-compliant design
Yes
WIP design
Yes
