Chocolate processing unit for mixing, grinding, and conching

Optimize chocolate production with precise mixing, grinding, and conching, achieving consistent texture and flavor. Reduce processing time and energy usage, ideal for businesses enhancing their confectionery capabilities.

Mixes, Grinds, and Conches Chocolate Compounds

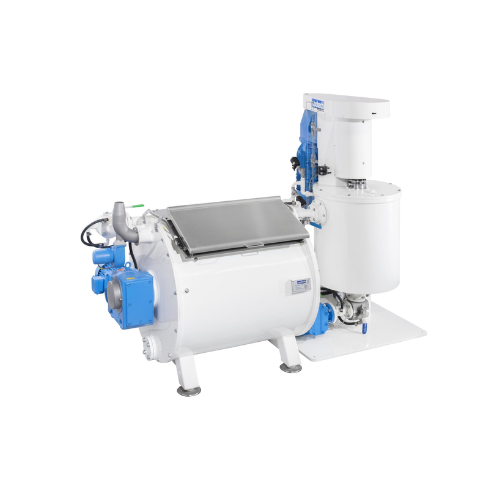

The CHOCOCON 150 from Caotech B.V. is a versatile chocolate and compound processing unit that seamlessly combines a horizontal 500L mixer/conch with a vertical low-speed ball mill CAO C150. This equipment is engineered for efficient mixing, fine grinding, and conching of chocolate, creams, bread spreads, and fat-based compounds, significantly enhancing production efficiency in confectionery and food processing industries. With a batch capacity of 500 kg, it achieves an end fineness of 22-25 microns in approximately 3 hours using crystal sugar. It offers flexibility in ingredient handling, including powdered sugar, which reduces grinding time. Designed to minimize maintenance and energy consumption, it operates with low heat development and requires no foundation, saving on installation space. Its compact design includes a redesigned mixer opening for faster loading, making it an attractive choice for production lines aiming to produce milk chocolate bars, dark chocolate chips, and cocoa butter compounds efficiently.

Benefits

  • Enhances production efficiency with faster ingredient loading and processing.
  • Reduces labor costs through low-maintenance and easy-to-operate design.
  • Optimizes energy use, lowering overall operational costs.
  • Maintains consistent product quality with precise mixing and grinding.
  • Frees up floor space with a compact design that requires no foundation.

General


Applications
Compound coatings,Ice cream coatings,Chocolate processing,Bread spreads,Fat-based compounds
End products
Fat-based chocolate compound,Cocoa butter compound,Chocolate coating for ice cream,Hazelnut compound coating for ice cream,Nut-based bread spread,Hazelnut cocoa spread,Dark chocolate chips,White chocolate blocks,Milk chocolate bars,Vanilla compound coating for ice cream
Steps before
Collect the cocoa beans,Grinding cocoa beans
Steps after
Packing,Coating,Cooling
Input ingredients
crystal sugar,powdered sugar,chocolate ingredients,creams,bread spreads,fat-based compounds
Output ingredients
chocolate,compound coatings,ice cream coatings,bread spreads
Market info
Caotech is known for its expertise in designing and manufacturing industrial equipment for processing cocoa, chocolate, and confectionery. The company is reputable for producing high-quality, tailor-made processing machinery, catering to both large-scale operations and niche producers.

Technical Specifications


Capacity
150 kg/hour (crystal sugar)
Batch capacity
500 kg
Grinding fineness
22-25 microns
Grinding time
3 hours (using crystal sugar)
Time reduction
Shortened (using powdered sugar)
Installed power
24.7 kW
Weight
2,500 kg
Dimensions (LxWxH)
2600 x 1540 x 2100 mm
Feature
Low maintenance costs
Feature
Low energy consumption
Feature
Minimum wear
Feature
Low heat development
Space requirement
Limited floor space,no foundation required

Operating Characteristics


Batch capacity
500 kg
Batch vs. continuous operation
Batch
Time to end fineness (crystal sugar)
3 hours
Conching steps
Integrated horizontal mixer/conch
Grinding method
Vertical low-speed ball mill
Flexibility
High
Ease of loading
Redesigned mixer opening
Automation level
Manual
Operation area requirement
No foundation required
Energy consumption
Low
Maintenance
Low

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Abrasiveness
Yes
Product type
Chocolate,creams,bread spreads,fat-based compounds

Physical Characteristics


Machine footprint
2600 x 1540 x 2100 mm
Weight
2,500 kg
Capacity
150 kg/hour (crystal sugar)
Batch size
500 kg

Custom Options


Control panel type
Standard / Advanced HMI
Integration possibilities
Custom process integration
Compact footprint
Limited space requirement
Discharge method
Manual / Automated
