Chocolate processing unit for mixing and grinding

Achieve precise mixing and conching efficiency for premium chocolate and fat-based spreads, while significantly reducing energy consumption and processing time in your batch operations.

Processes Chocolate and Compound Coatings Efficiently

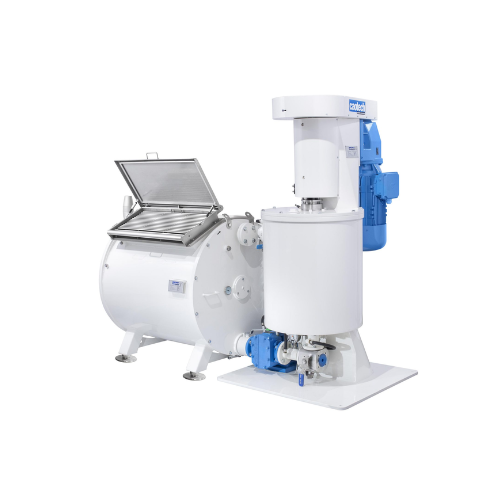

The CHOCOCON 250 from Caotech is a versatile chocolate and compound processing unit engineered for food processing companies looking to optimize their production efficiency. This system combines a horizontal 500L mixer/conch with a vertical low-speed ball mill, CAO C250, enabling seamless integration of mixing, fine grinding, and conching processes. With a batch capacity of 500 kg and rapid reduction to end fineness of 22-25 microns within 2 hours using crystal sugar, it significantly enhances throughput. The redesigned mixer loading facilitates quicker ingredient handling. Offering a capacity of 250 kg per hour with crystal sugar, this unit is driven by 28.2 kW installed power and operates with low energy consumption, low maintenance, and minimal wear. Its compact design requires no foundation, making it ideal for facilities with limited space. Suitable for producing dark, milk, and white chocolates, as well as a variety of spreads and coatings, the CHOCOCON 250 meets diverse industry demands, particularly in confectionery and dairy sectors.

Benefits

  • Enhances production efficiency with rapid processing times, reducing batch durations.
  • Lowers operational costs through energy-efficient low-speed operation.
  • Minimizes maintenance needs due to robust design and limited wear components.
  • Saves on plant space with its compact, foundation-free installation.
  • Delivers consistent product quality, ensuring reliable end-product characteristics.

General


Applications
Compound coatings,Ice cream coatings,Chocolate,Bread spreads,Fat-based compounds
End products
Chocolate truffles,Milk chocolate,White chocolate,Chocolate peanut butter,Nutella-type spreads,Ice cream bars,Almond butter,Peanut butter,Dark chocolate,Chocolate-coated nuts,Fat-based cream filling,Hazelnut spread
Steps before
Collect the cocoa beans,Grind the cocoa beans
Steps after
Packing,Coating
Input ingredients
crystal sugar,powdered sugar,fat-based compounds,chocolate ingredients,creams,bread spreads
Output ingredients
chocolate,compound coatings,ice cream coatings,bread spreads
Market info
Caotech is known for its expertise in designing and manufacturing industrial equipment for processing cocoa, chocolate, and confectionery. The company is reputable for producing high-quality, tailor-made processing machinery, catering to both large-scale operations and niche producers.

Technical Specifications


Capacity
250 kg/hour (crystal sugar)
Batch size
500 kg
Installed power
28.2 kW
Weight
3,600 kg
Dimensions (LxWxH)
2600 x 1540 x 2100 mm
End fineness
22-25 microns
Operating time
2 hours (crystal sugar)
Minimum wear
Yes
Energy efficiency
Low energy consumption
Heat generation
Low heat development
Flexibility
High flexibility
Automation
Full-auto operation

Operating Characteristics


Working mechanism
Horizontal mixer/conch and vertical low-speed ball mill
Integrated steps
Mixing,fine grinding,and conching
Batch vs. continuous operation
Batch
Time to end fineness
2 hours for 22-25 microns
Flexibility
High flexibility
Loading method
Redesigned mixer opening for faster loading
Energy efficiency
Low energy consumption
Maintenance
Low maintenance costs
Heat development
Low heat development
Floor space requirement
Limited floor space,no foundation required
Grinding speed variation
Shorter grinding time with powdered sugar

Material Compatibility


Crystal sugar compatibility
Yes
Powdered sugar compatibility
Yes
Cream compatibility
Yes
Chocolate compatibility
Yes
Bread spread compatibility
Yes
Fat-based compound compatibility
Yes

Physical Characteristics


Machine footprint (LxWxH)
2600 x 1540 x 2100 mm
Weight
3,600 kg
Capacity
250 kg/hour
Batch Size
500 kg
Configuration
Horizontal mixer/conch and vertical ball mill
Transportability on site
No foundation required
Shape
Horizontal and vertical equipment

Custom Options


Control panel type
Customizable HMI
Operation mode
Batch
Loading method
Redesigned mixer opening for faster and easier loading
Integration possibilities
Can integrate with existing chocolate processing lines
Machine upgrade options
Redesigned components for efficiency
Footprint
Compact
