Chocolate moulding system for small batch production

Streamline your chocolate product line with precision moulding and tempering, ensuring each piece achieves optimal texture and finish without compromising on production efficiency.

Melts, Tempers, and Moulds Chocolate Products

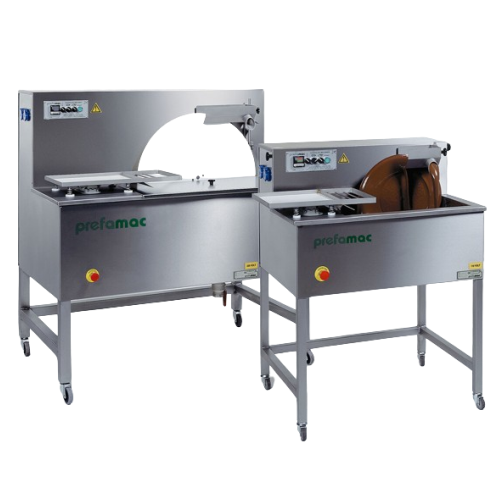

The Prefamac Moulding Machine 30kg is a versatile solution for chocolatiers and biscuit manufacturers, optimized for the precise melting, tempering, and moulding of chocolate products. Utilizing an adjustable chocolate wheel, it ensures accurate control of chocolate flow, vital for the production of truffles, pralines, and various enrobed confections. The machine supports semi-automatic operations, integrating seamlessly with enrober belts and vibrating tables for enhanced production flexibility. Its robust, pearled stainless steel construction ensures longevity and ease of cleaning, even under demanding 24/7 conditions. Equipped with a highly accurate digital thermostat and ergonomic design, it offers minimal maintenance and maximum operational efficiency. The Prefamac 30kg model excels in batch processes, making it an invaluable asset in confectionery and chocolate production lines.

Benefits

  • Enhances production efficiency with seamless integration into existing processing lines.
  • Minimizes maintenance requirements with a durable, stainless steel construction.
  • Optimizes chocolate distribution with adjustable wheel speed, ensuring consistent product quality.
  • Provides ergonomic operation, reducing operator fatigue and improving ease of use.
  • Extends service life even under continuous operation in demanding environments.

General


Applications
Chocolates,Confectionery,Chocolate-coated products,Sweets,Chocolate moulds
End products
Pralines,Chocolate wafers,Chocolate bars,Filled chocolate moulds,Enrobed biscuits,Truffles,Hollow chocolate figures
Steps before
Melting,Tempering
Steps after
Filling,Vibrating,Enrobing
Input ingredients
chocolate,raw chocolate,tempered chocolate
Output ingredients
filled moulds,chocolate bars,chocolate molded figures
Market info
Prefamac is known for manufacturing high-quality chocolate processing equipment, including tempering, enrobing, and cooling machines. The company is recognized for innovative and custom-engineered solutions tailored to the confectionery industry, emphasizing precision, efficiency, and reliability.

Technical Specifications


Capacity
30 kg
Material
Pearled stainless steel
Draining valve size
1″
Heating
Heating carpets for tray and outlet
Thermostat
Highly accurate digital
Control
PLC screen (color)
Electricity
230V 1ph 50Hz / 230V 3ph 60Hz

Operating Characteristics


Batch vs. continuous operation
Batch
Automation level
PLC-controlled
CIP/SIP
Manual cleaning
Cleaning method
Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Tank size
30 kg
Frame type
On castors
Material
Pearled stainless steel
Discharge method
Draining valve at bottom
Control panel type
Optimally accessible control knobs and thermostats

Custom Options


Frame type
On castors
Chocolate wheel type
Adjustable speed
Thermostat type
Digital with double readout
Discharge method
Draining valve 1″ (30kg) / 1 ½ ” (80kg)
Heating method
Heating carpets for tray and outlet
Vibration table
Standard with separate motor
Agitator turning direction
Right or left
Integration with other equipment
Combined with enrober belt and moulds scraper
Front frame design
Unobstructed legroom
