Chocolate and sugar coating system

Achieve consistent, high-quality coating for nuts, dried fruits, and confectionery with precise temperature control and efficient production capabilities, ideal for improving product appearance and ensuring uniformity across batch production.

Coats, Polishes, and Cools Confectionery Products

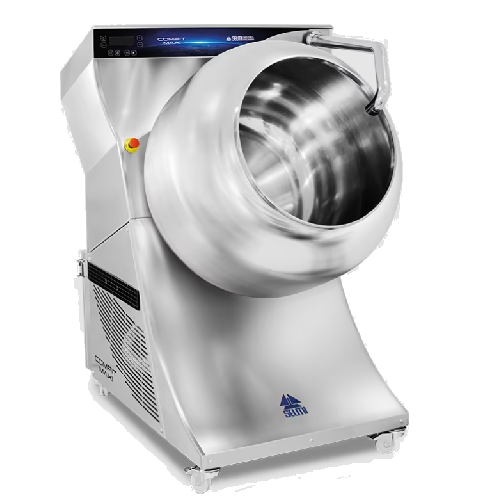

The Comfit Maxi from Selmi Group is a high-capacity chocolate and sugar coating panning machine designed for semi-industrial use. This unique machine incorporates an autonomous cooling system with interchangeable air filters, enabling precise control over the coating process. The Comfit Maxi can handle various applications, from chocolate dragées and sugared almonds to chocolate-coated hazelnuts and yogurt-covered treats. With a tank capacity of 50 to 60 kg and an hourly production rate of 40 kg, it is ideal for medium-scale chocolate producers and confectionery manufacturers. This equipment is PLC-controlled for seamless integration into existing production lines and enhanced process automation. Its robust design ensures efficient energy use and straightforward cleaning, accommodating the rigorous demands of food processing industries.

Benefits

  • Enhances production efficiency with seamless coating and polishing processes.
  • Reduces energy costs through an integrated cooling system.
  • Ensures product quality with precise temperature regulation and control.
  • Facilitates easy integration into existing lines, minimizing setup time.
  • Supports versatile product applications, maximizing output flexibility.

General


Applications
Sugared almonds,Pistachios,Hazelnuts,Sweets,Chocolate dragèes,Chocolate,Dried fruits,Almonds
End products
Pistachio dragées,Chocolate truffles,Milk chocolate dragées,Candied fruit pieces,Chocolate-coated hazelnuts,Dark chocolate dragées,Chocolate-covered almonds,Caramel-coated dried fruits,Sugar-coated almonds,Yogurt-covered almonds
Steps before
Drying,Roasting,Sorting,Pre-conditioning
Steps after
Polishing,Cooling,Packing,Quality Control
Input ingredients
chocolate,sugared almonds,hazelnuts,pistachios,almonds,dried fruits
Output ingredients
chocolate dragees,coated sugared almonds,coated hazelnuts,coated pistachios,coated almonds,coated dried fruits
Market info
Selmi is renowned for manufacturing high-quality chocolate processing equipment, such as tempering, enrobing, and cooling machines, with a strong reputation for precision, innovation, and reliability in the confectionery and chocolate industry.

Technical Specifications


Electrical specification
400 V three phase - 50 Hz
Power required
2.5 Kw - 16 A - 5 poles
Tank capacity
50/60 kg
Hourly production rate
40 kg
Cooling unit capacity
1900 frigories/h
Dimensions
1060x1460x1600 mm
Cooling system
Autonomous cooling unit
Temperature control
Thermoregulator on control panel

Operating Characteristics


Working mechanism
Rotating tank with controlled air introduction
Integrated steps
Cooling,smoothing,and polishing
Batch vs. continuous operation
Batch
Automation level
Manual/Automated with thermoregulator
Cleaning method
Smoothen and polish with resistance

Material Compatibility


Cleanability
Easy to clean with resistance polishing
Abrasion resistance
Suitable for rotating operations
Corrosive resistance (e.g. acids)
Resistant to standard food processing conditions
Biological compatibility
Safe for food contact
Density/particle size
Varied,accepts various product sizes

Physical Characteristics


Machine footprint
1060x1460x1600 mm
Tank capacity
50/60 kg
Discharge method
Rotating tank
Control panel type
Thermoregulator

Custom Options


Control panel type
Thermoregulator with adjustable temperature control
Cooling unit type
Autonomous cooling unit
Air filter type
Interchangeable air filter
