Capsule filling and sealing system for coffee production

Achieve precise coffee capsule production with a machine that seamlessly fills, seals, and adapts to various capsule types, boosting efficiency while minimizing downtime.

Fills and Seals Capsules Efficiently

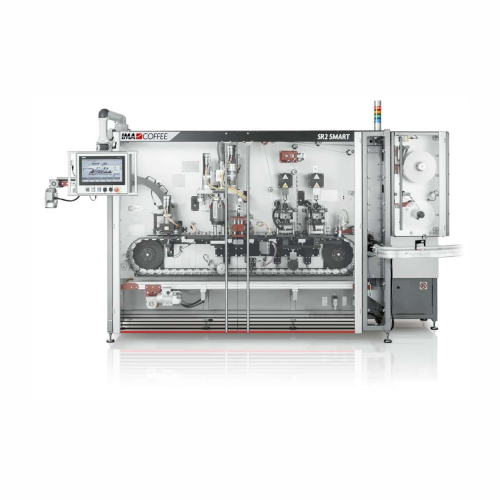

The SR SMART Series from IMA Group offers versatile and flexible solutions in capsule filling and sealing for coffee producers and beverage companies. Designed with an ergonomic cantilever structure, these machines benefit from easy maintenance access and reduced downtime. Equipped to handle plastic, aluminum, and compostable capsules, the SR SMART Series offers a double feeding system for bulk and stacked inputs, ensuring seamless integration into high-speed production lines. The machines are capable of dosing in a modified atmosphere to preserve aroma, utilizing a highly precise dosing mechanism. With production speeds ranging from 60 to 120 capsules per minute, the SR SMART Series incorporates nitrogen flushing and special sealing technologies for reliable operation. Available in stainless steel construction, the equipment adheres to food safety standards and offers customization for processing different capsule types and sizes. The ergonomic design further ensures hassle-free cleaning, while a quick-changeover system enhances operational efficiency.

Benefits

  • Increases production efficiency by reducing line downtimes with quick-changeover and easy maintenance access.
  • Supports sustainable operations with the ability to handle compostable and recyclable capsule materials.
  • Preserves product quality by filling in a modified atmosphere to maintain aroma and freshness.
  • Versatile processing capabilities allow for handling a range of capsule types and sizes.
  • Enhances operational flexibility with dual feeding systems for bulk and stacked capsules.

General


Applications
Soluble beverages,Tea,Coffee,Capsules
End products
Espresso coffee capsules,Hot chocolate capsules,American coffee capsules,Nespresso compatible capsules,Instant coffee capsules,Herbal tea capsules,Tea capsules,Cappuccino capsules
Steps before
Grinding,Roasting
Steps after
Packing,Cartoning,Sealing
Input ingredients
empty capsules,plastic capsules,aluminum capsules,compostable capsules,bulk capsules,stacked capsules
Output ingredients
filled capsules,sealed capsules,capsules with aluminum film lid,capsules with micro perforated lid,capsules with filter paper lid,capsules with triplex coupled lid,capsules with PP lid,capsules with compostable lid,capsules with filters,capsules with diaphragms
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Production Speed
60–120 capsules/min
Power Consumption
27 kW
Machine Weight
3280–3335 kg
Nitrogen Consumption
28 Nm3/h
Compressed Air Consumption
28–38 Nm3/h
Compressed Air Pressure
6 bar
Capsule Material Compatibility
Plastic,Aluminum,Compostable
Lid Type
Aluminum film,Micro perforated,Filter paper,Triplex coupled,PP,Compostable
Changeover Time
Very fast
Feeding System
Double integrated for bulk and stacked capsules
Sealing Technology
Special technologies for inner components and lid
Dosing System
Extremely precise
Modified Atmosphere Production
Yes

Operating Characteristics


Automation level
Manual / PLC
Changeover time
Fast
CIP/SIP
Easy Cleaning
Batch vs. continuous operation
Batch / Inline Continuous
Cleaning method
CIP / Manual
Energy efficiency
Improved Efficiency

Material Compatibility


Capsule material compatibility
Plastic / Aluminum / Compostable
Lid sealing material compatibility
Aluminum film / Micro perforated / Filter paper / Triplex coupled / PP
Compostable material handling
Yes

Product type Characteristics


Production environment
Modified atmosphere

Physical Characteristics


Machine footprint
Compact
Feed system
Double integrated feeding system
Discharge method
Exit pick,place
Control panel type
15” touch-screen operator panel
Compact footprint
Ergonomic cantilever design

Custom Options


Control panel type
15" touch-screen operator panel
Integration possibilities
Integration with nitrogen flushing and in-line weighing systems
Feeding system
Double integrated feeding system for bulk and stacked capsules
Sealing technology
Special sealing technologies for inner components and lid
Accessibility
Ergonomic cantilever design for great accessibility
Capsule material compatibility
Plastic,aluminum,and compostable materials
