Big bag loading station for bulk product handling

Efficiently manage big bag handling with a system that combines hoisting, emptying, and discharging to streamline bulk product processing, minimizing the need for forklifts and enhancing operator safety.

Efficiently Loads and Empties Big Bags

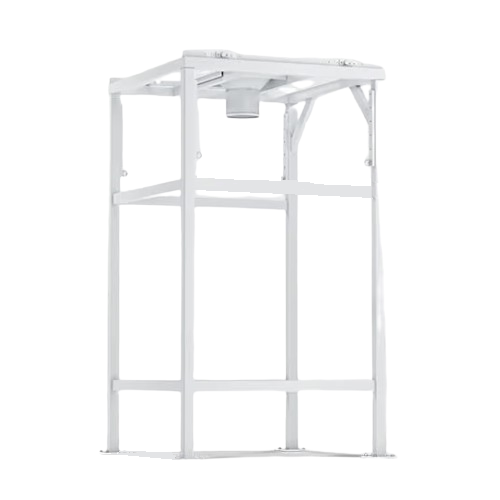

The CBB Big Bag Loading Station from GEA is tailored for efficient handling and emptying of bulk materials, enhancing workflow in food, beverage, pharmaceutical, and chemical industries. Designed for single-operator use, it features an electric hoist for easy lifting without forklifts. The station is equipped with safety-compliant, painted carbon steel structures, and the optional stainless-steel hopper facilitates smooth discharge. For applications requiring material accumulation, a screw conveyor or dosing system can be integrated for precise discharge control. Whether handling protein powders, pharmaceutical granules, or powdered cleaning agents, the CBB station integrates seamlessly with existing material handling systems, ensuring operational safety and efficiency.

Benefits

  • Enhances safety by eliminating the need for forklifts, reducing operational risks.
  • Increases efficiency with single-operator management, optimizing labor resources.
  • Facilitates precise discharge, minimizing material waste through integrated hopper and screw conveyor.
  • Offers versatile handling of varying bulk materials, supporting multiple industry applications.
  • Ensures compliance with strict safety regulations, bolstering workplace safety.

General


Applications
Food,Beverages,Chemicals,Environmental,Raw materials,Bulk materials,Packaging materials,Powdered products,New food,Dairy,Pharmaceuticals
End products
Beverage flavorings,Powdered sugar,Protein powder,Coffee grounds,Pharmaceutical powders,Powdered cleaning agents,Cement mix,Flour mix,Plastic pellets,Animal feed,Nutritional supplements,Plant-based food ingredients,Milk powder,Powdered dyes,Fertilizer granules,Tea blends,Raw polymer materials,Bulk spices,Chemical granules
Steps before
Material Preparation,Sorting,Quality Control Inspection
Steps after
Discharging,Screw Conveying,Product Packing
Input ingredients
big bags,various products,bulk materials,raw materials
Output ingredients
discharged product,processed materials,emptied big bags
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Lifting Method
Electric hoist
Material
Painted carbon steel
Operator Requirement
Single operator
Safety Compliance
Health and safety regulations
Hopper Material
Stainless steel
Optional Feature
Screw conveyor/doser

Operating Characteristics


Handling ability
Single operator operation
Automation level
Manual / Electric hoist
Compliance with safety regulations
Total safety in compliance
Changeover time
Not required
Cleaning method
Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Screw Conveyor Integration
Optional

Physical Characteristics


Machine footprint
Compact design
Structural material
Painted carbon steel structure
Lift mechanism
Electric hoist
Hopper material
Stainless steel
Discharge method
Screw conveyor/doser
Operator requirement
Single operator handling

Custom Options


Hopper Material
Stainless Steel
Discharge Method
Screw Conveyor/Doser
Material Structure
Painted Carbon Steel
Lifting Mechanism
Electric Hoist
Safety Features
Compliance with Health and Safety Regulations
