Benchtop electric mini fermenter for process development
Optimize your process development with a compact benchtop fermenter, delivering precise thermoregulation and versatile configuration options for efficient fermentation and cultivation across various applications.
Facilitates Fermentation and Cultivation Processes

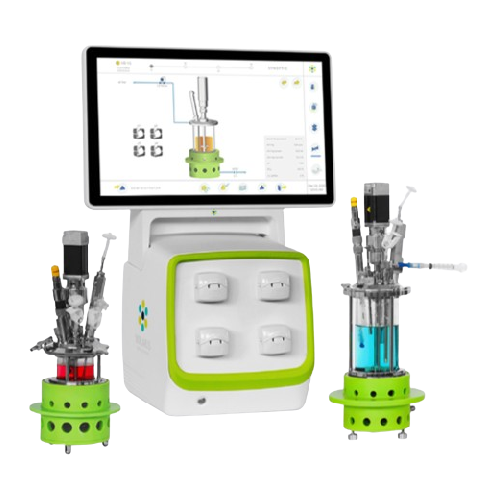

The Solaris Lab IO Benchtop Electric Mini Fermenter/Bioreactor stands out in precision fermentation and cultivation. Designed for biotech, pharmaceutical, and cosmeceutical applications, it employs a Peltier Cell for water-free thermoregulation, accommodating various microbial and cell cultures with its configurable impeller and sparger options. This unit excels in small-scale production, supporting processes such as batch, fed-batch, and continuous operations. Equipped with a PLC-based LEM01 control system, it integrates four peristaltic pumps and features Modbus digital sensors for rapid, noise-free data collection. Capable of remote monitoring and control via LEONARDO 3.0 SCADA software, it simplifies lab management. The system’s adaptability to multiple gas mixing strategies with up to five TMFC or solenoid valves, combined with options for condenser integration using a Peltier Cell, maximizes operational flexibility. Ideal for producing nutraceuticals, biosynthetic hormones, and biodegradable bioplastics, its compact design prioritizes lab space efficiency while ensuring seamless integration and minimal maintenance.
Benefits
- Enhances process precision by maintaining consistent thermoregulation without water.
- Streamlines operations with remote monitoring, allowing for hands-free management.
- Increases adaptability with customizable configurations for diverse fermentation needs.
- Saves lab space with its compact benchtop design.
- Minimizes contamination risks with integrated digital sensor technology.
- Applications
- Food,Cosmeceuticals,Nutraceuticals,Beverage,Biomaterials,Biopharmaceuticals,Agriculture
- End products
- Dietary fiber supplements,Biodegradable bioplastic polymers,Fermented dairy alternatives,Non-toxic pain relief medications,Anti-aging coenzyme creams,Probiotic capsules,Vegan meat starters,Genetically modified algae fertilizers,Vitamin-enriched antioxidants,Monoclonal antibody therapies,Biosynthetic hormones,Hyaluronic acid serums,Low-carb beverage formulas
- Steps before
- Media Preparation,Inoculum Development
- Steps after
- Purification,Formulation,Packaging
- Input ingredients
- microbial cultures,cell cultures,nutraceutical ingredients,biotech raw materials,cosmeceutical bioactive ingredients,food and beverage substrates,biomaterial precursors,agricultural inputs,fermentation media
- Output ingredients
- processed microbial cultures,viable cell cultures,dietary supplements,food additives,antibiotics,antitumorals,human vaccines,active pharmaceutical ingredients (APIs),hormones,non-addictive painkillers,monoclonal antibodies,hyaluronic acid,Q10 coenzyme,meat/cheese/wine starters,meat preservatives,plant-based meat substitutes,low carb drinks,fermented drinks,biopolymers,bioplastics,biofertilizers,biopesticides,algae fertilizer
- Market info
- Solaris Biotech is known for manufacturing specialized engineered-to-order bioprocessing equipment, including fermenters and bioreactors, with a strong reputation for innovation, quality, and customization capabilities in the biotechnology and pharmaceutical markets.
- Total Volume
- 200ml or 1000ml
- Thermoregulation
- Peltier Cell
- Impeller Type
- Rushton/Marine/Pitched-Blade
- Sparger Type
- Fluted/L-shaped
- Process Type
- Batch/Fed-batch/Continuous
- Motor Type
- Brushless,1 RPM accuracy
- Control System
- PLC-based LEM01
- Gas Mixing
- Up to 5 TMFC and/or solenoid valves
- Gas Out Option
- Condenser with Peltier Cell
- Automation Software
- SCADA LEONARDO 3.0
- Remote Control
- PC,Tablet,Smartphone
- Data Management
- Extract in .csv format
- Measurement and Control
- Temperature,pH,dO₂,dCO₂,Redox,Antifoam,Level,Conductivity,Weight,Cell Density
- Pumps
- 4 fixed or variable speed peristaltic pumps
- Thermoregulation system
- Peltier Cell (no water circulation)
- Automation level
- LEONARDO 3.0 SCADA software
- Batch vs. continuous operation
- Batch,fed-batch,continuous
- Impeller type
- Rushton/Marine/Pitched-Blade
- Sparger type
- Fluted/L-shaped
- Gas mixing strategies
- Up to 5 TMFC/solenoid valves
- Gas outlet option
- Optional condenser with Peltier Cell
- Pumps
- 4 fixed/variable speed peristaltic pumps
- Remote access
- PC,tablet,smartphone
- System compactness
- Maximizes lab space
- Biological compatibility
- Yes
- Cleanability
- CIP / SIP compatible
- Corrosive resistance (e.g. acids)
- Yes
- Density/particle size
- Compatible with various densities and particle sizes in liquid form
- Process Type
- Batch / Fed-batch / Continuous
- Gas Mixing Strategies
- Up to 5 TMFC/solenoid valves
- Research and Application Areas
- Basic research,Education,Process development
- Industries
- Nutraceutical,Biotech,Pharma,Cosmeceutical,Food,Beverage,Biomaterials,Agriculture
- Control panel type
- PLC-based
- Compact footprint
- Extremely compact system
- Control panel type
- LEONARDO 3.0 SCADA software
- Integration possibilities
- Remote access via PC,tablet,or smartphone
- Impeller type
- Rushton/Marine/Pitched-Blade
- Sparger type
- Fluted/L-shaped
- Gas mixing strategies
- Up to 5 TMFC and/or solenoid valves
- Condenser integration
- Peltier Cell
